Satellite Name: Intelsat 19 (IS-19)
Status: active
Position: 166° E (166° E)
Norad: 38356
Cospar number: 2012-030A
Operator: Intelsat
Launch date: 31-May-2012
Launch site: Sea Launch (Odyssey)
Launch vehicle: Zenit 3SL
Launch mass (kg): 5600
Dry mass (kg): 2395
Manufacturer: Space Systems Loral (SSL)
Model (bus): LS-1300
Orbit: GEO
Expected lifetime: 15 yrs.
Call sign: S2850
Beacon(s): 12253.5V, 12254V, 12256V, 12256.5V, 12253.5L, 12254L, 12256L, 12256.5L, 3700.5H, 4199.5V, 12257R
Details:
24 C-Band and 34 Ku-Band transponders to provide telecommunication services and enhanced distribution of content throughout Asia-Pacific region with reach to the Western United States, Australia and New Zealand. Data received from the satellite indicate that the south solar array is damaged, and that the power available to the satellite will be reduced.

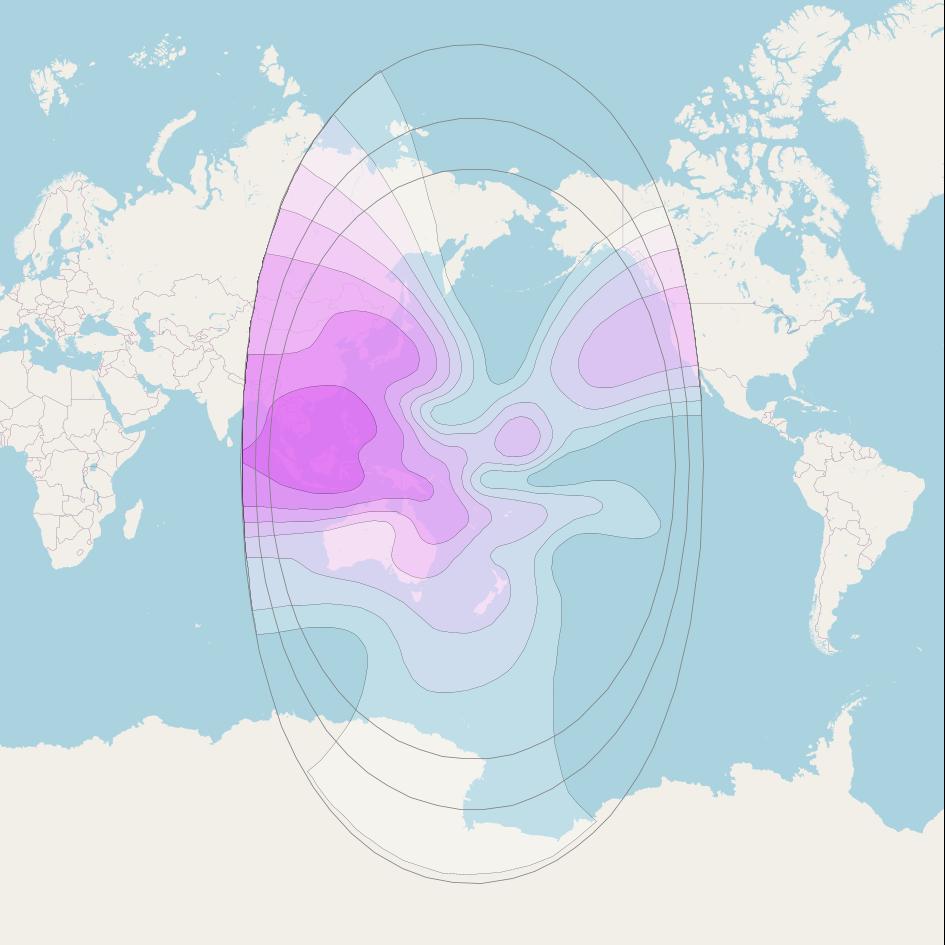

Beams:Charts: list

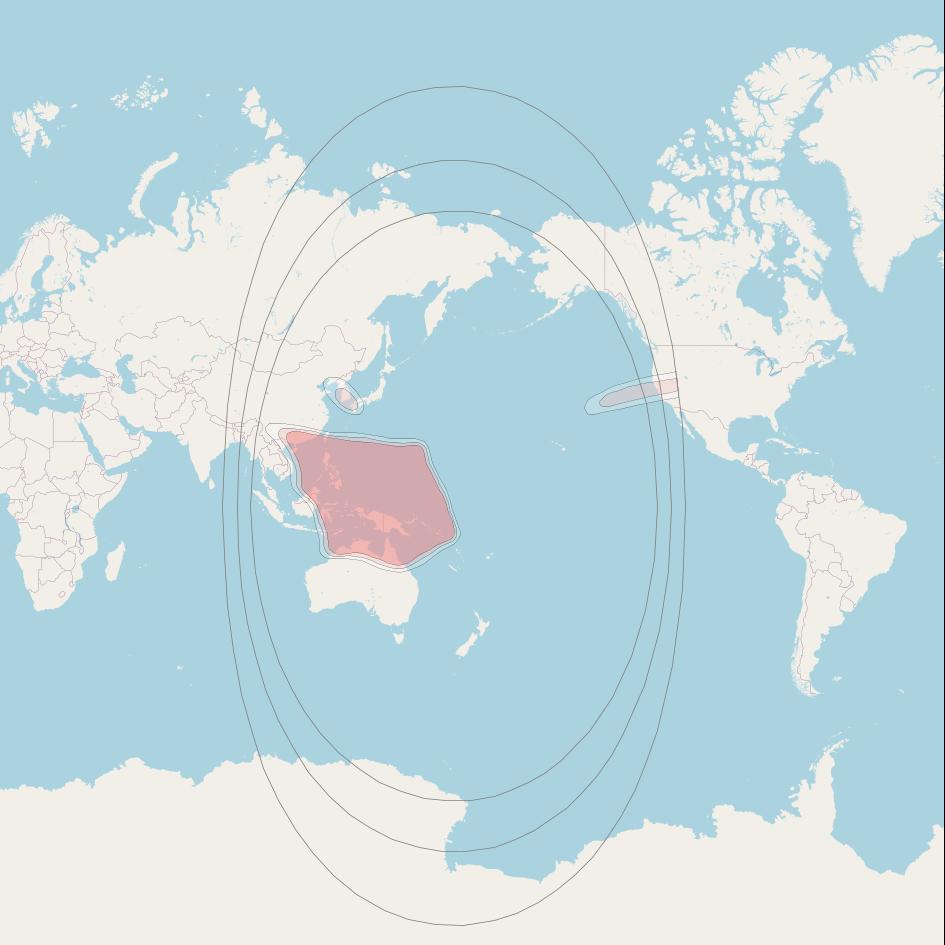

Intelsat 19 at 166° E downlink Ku-band South West Pacific (SWPKV) beam coverage map
