Satellite Name: XTAR-EUR
Status: active
Position: 29° E (29° E)
NORAD: 28542
Cospar number: 2005-005A
Operator: XTAR LLC
Launch date: 12-Feb-2005
Launch site: Guiana Space Center
Launch vehicle: Ariane 5 ECA
Launch mass (kg): 3640
Dry mass (kg): 1412
Manufacturer: Space Systems Loral (SSL)
Model (bus): LS-1300
Orbit: GEO
Expected lifetime: 15 yrs.
Call sign:
Beacon(s):
Details:
12 X-band (6 RHCP + 6 LHCP) transponders to provide coverage from Eastern Brazil and the Atlantic Ocean, across Europe, Africa, and the Middle East as far east as Singapore (2 global beams, one fixed and 4 steerable)
Beams:Charts: list

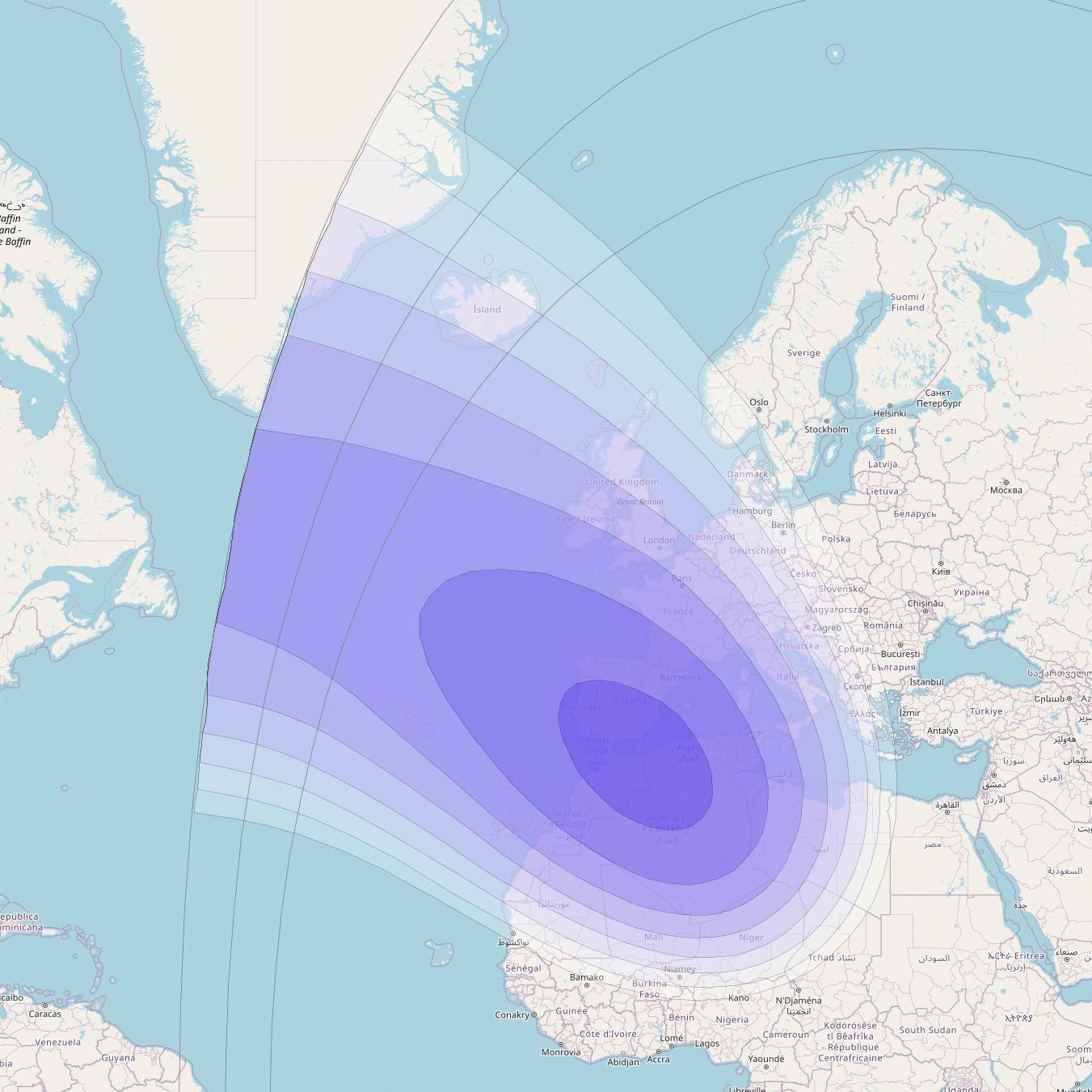

  • XTAR-EUR at 29° E downlink X-band Europe beam coverage map

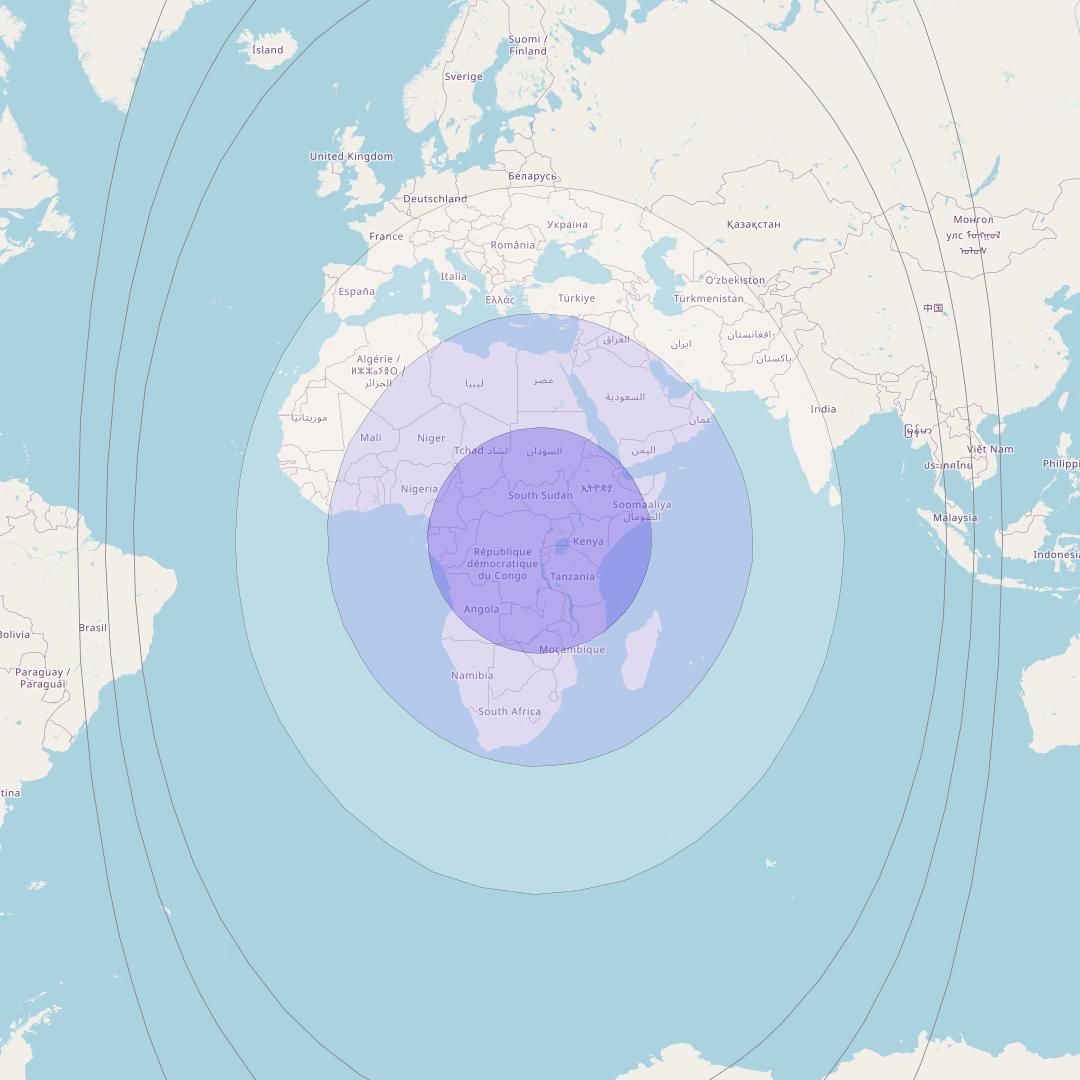

  • XTAR-EUR at 29° E downlink X-band Global beam coverage map

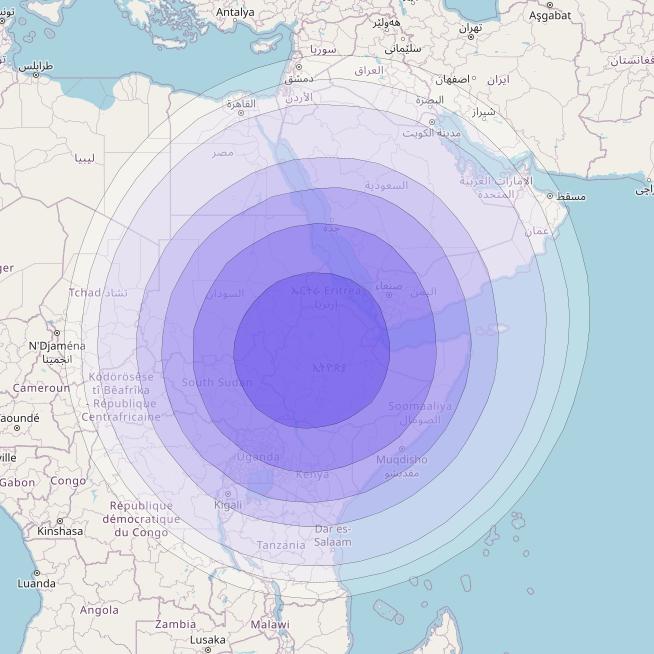

  • XTAR-EUR at 29° E downlink X-band Horn of Africa beam coverage map

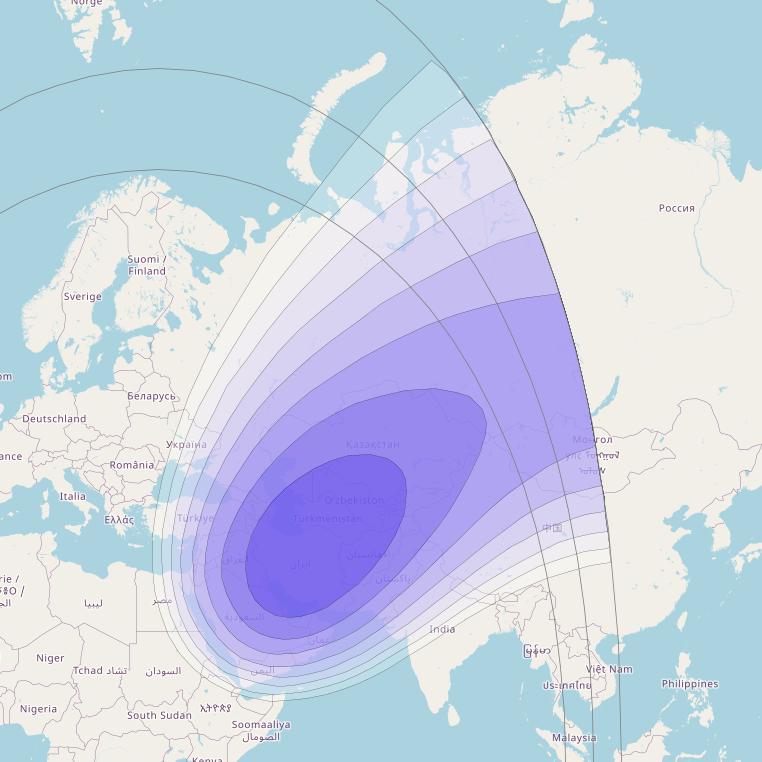

  • XTAR-EUR at 29° E downlink X-band Middle East beam coverage map

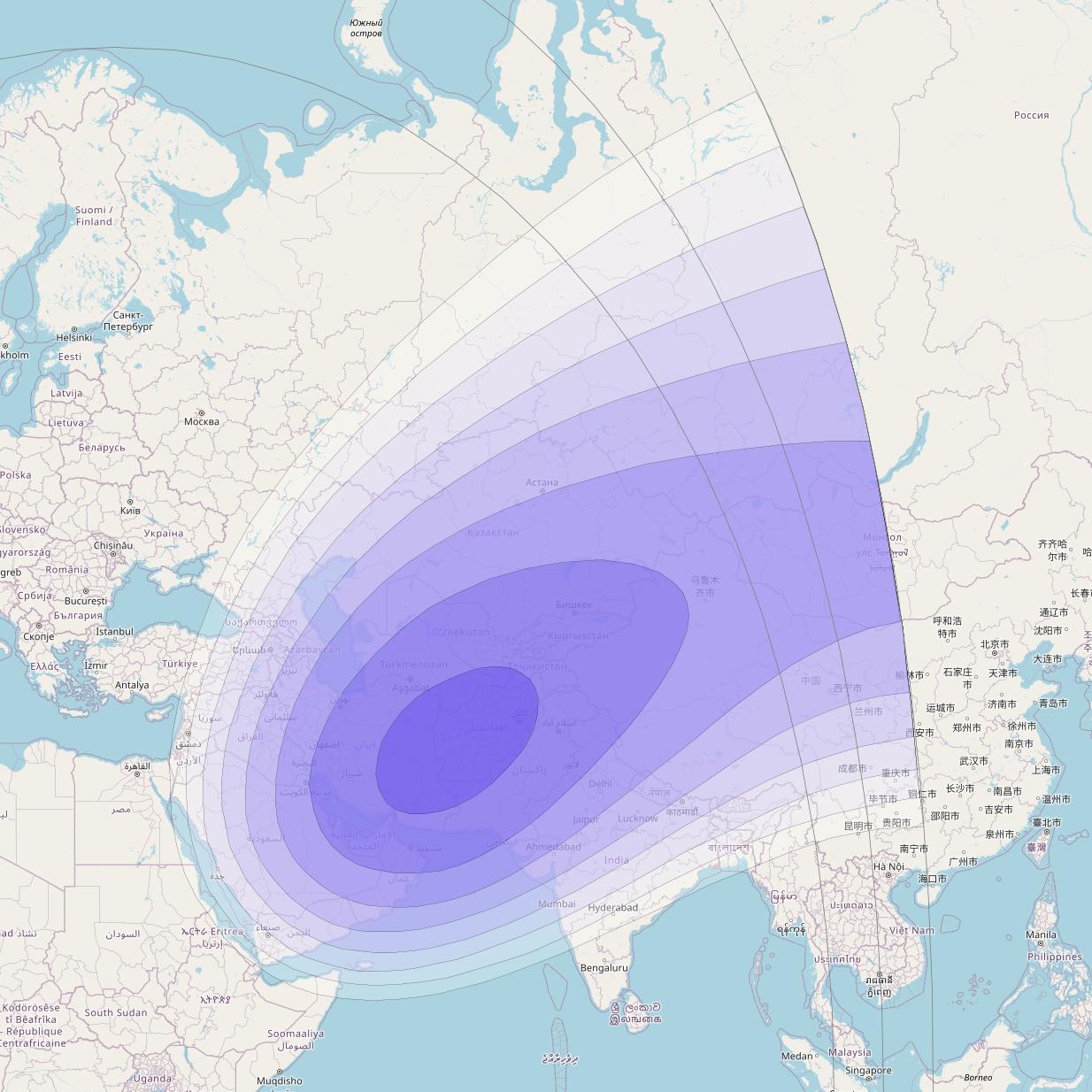

  • XTAR-EUR at 29° E downlink X-band Southwest Asia beam coverage map
