Satellite Name: Thaicom 4 (Ipstar 1, Measat 5)
Status: active
Position: 119° E (119.5° E)
NORAD: 28786
Cospar number: 2005-028A
Operator: Thaicom Plc.
Launch date: 11-Aug-2005
Launch site: Guiana Space Center
Launch vehicle: Ariane 5 G
Launch mass (kg): 6505
Dry mass (kg): 3386
Manufacturer: Space Systems Loral (SSL)
Model (bus): LS-1300SX
Orbit: GEO
Expected lifetime: 12 yrs.
Call sign:
Beacon(s): 20199.827 H
Details:
84 Ku-band spot beams, 3 shaped beams, 7 broadcast beams and 18 Ka-band spot gateway (uplink) beams to provide voice, video, and broadband Internet services to 14 countries including India, Thailand, Japan, Indonesia, and Australia.
Beams:Charts: list

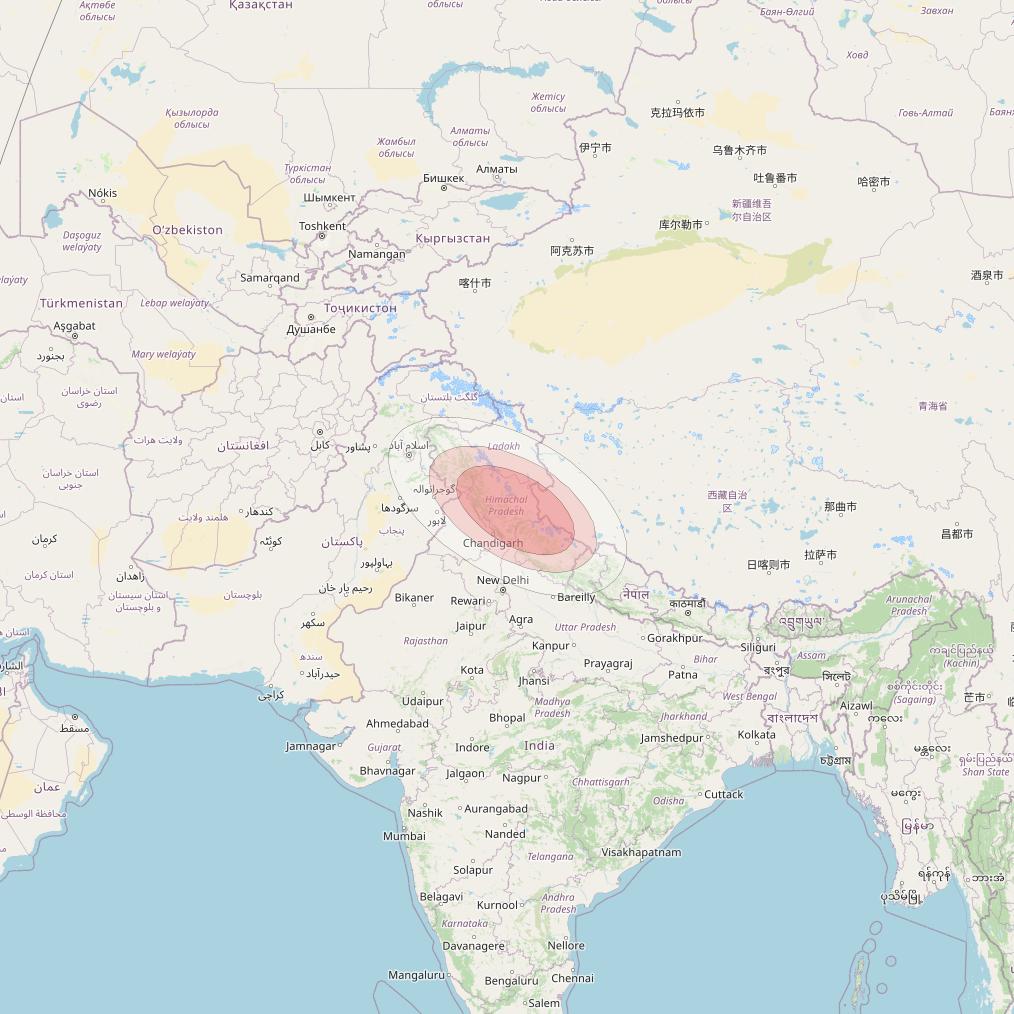

  • Thaicom 4 at 119° E downlink Ku-band Spot 101 beam coverage map

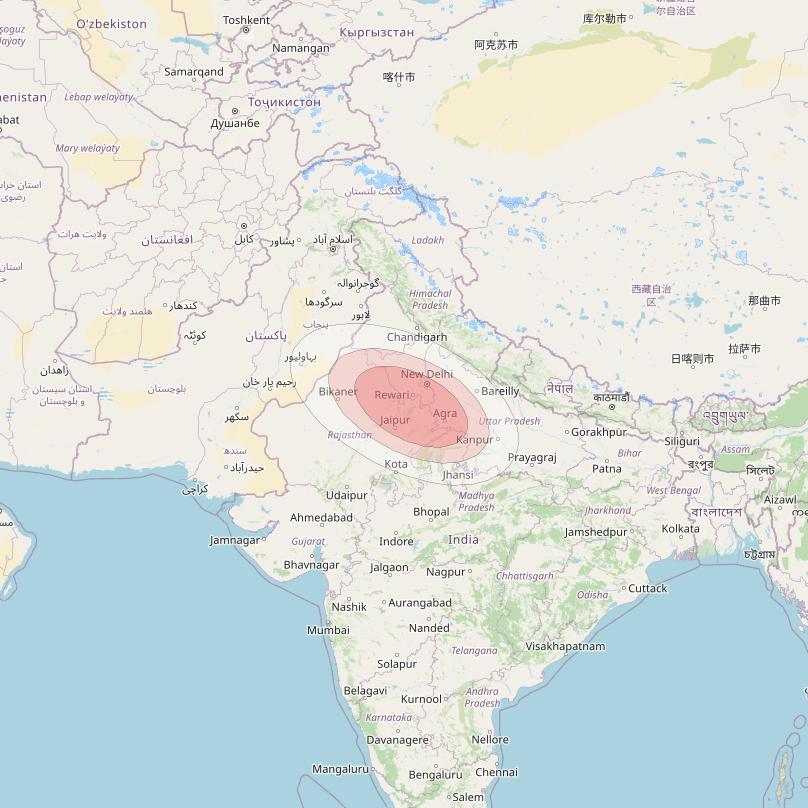

  • Thaicom 4 at 119° E downlink Ku-band Spot 102 beam coverage map

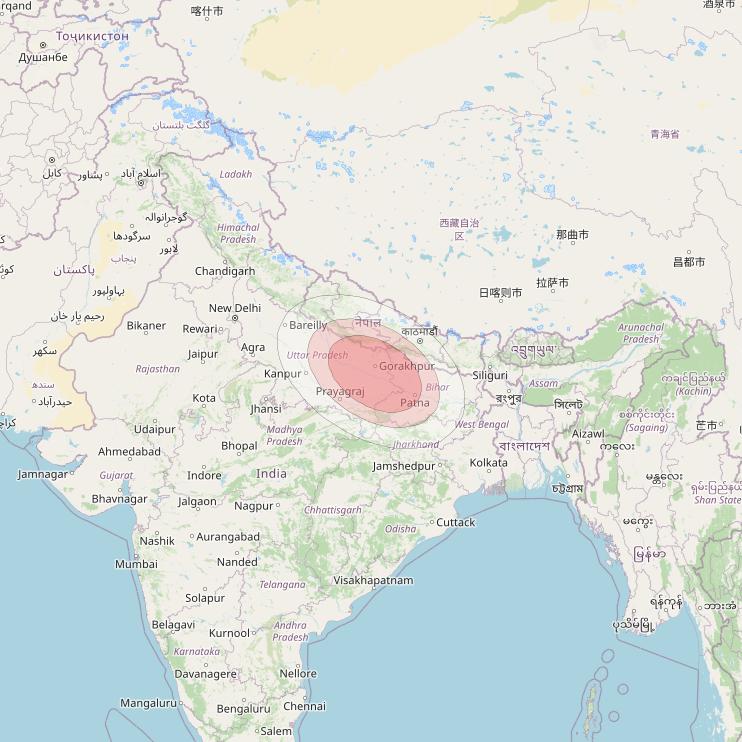

  • Thaicom 4 at 119° E downlink Ku-band Spot 103 beam coverage map

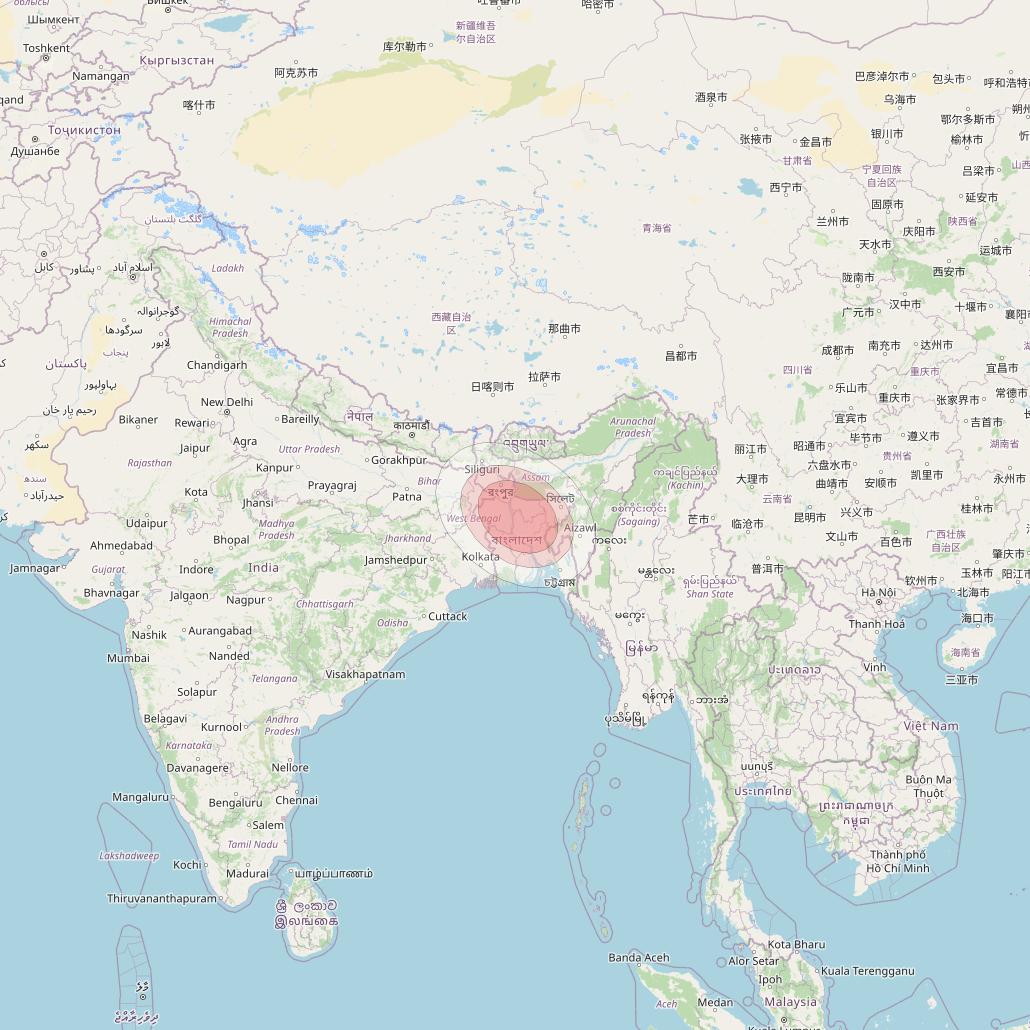

  • Thaicom 4 at 119° E downlink Ku-band Spot 104 beam coverage map

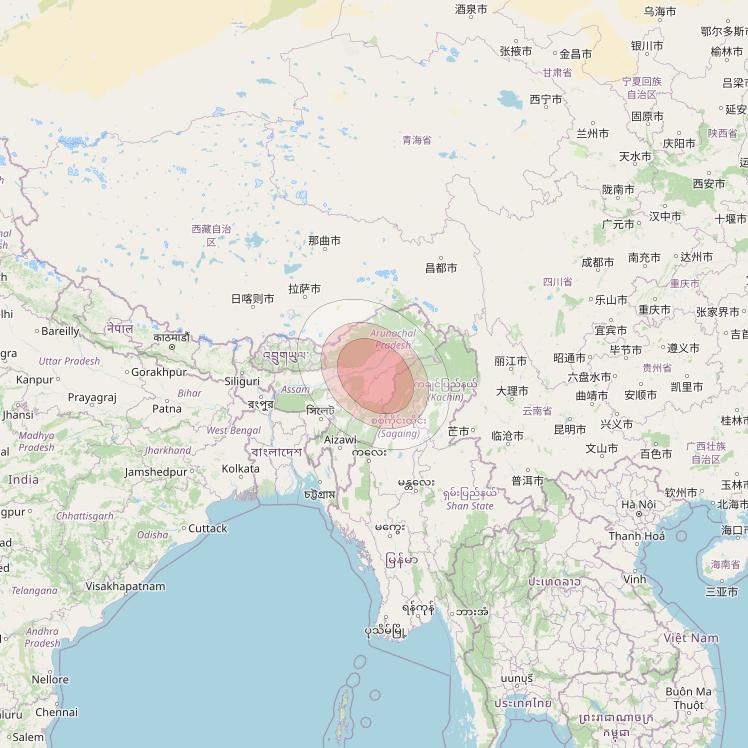

  • Thaicom 4 at 119° E downlink Ku-band Spot 105 beam coverage map

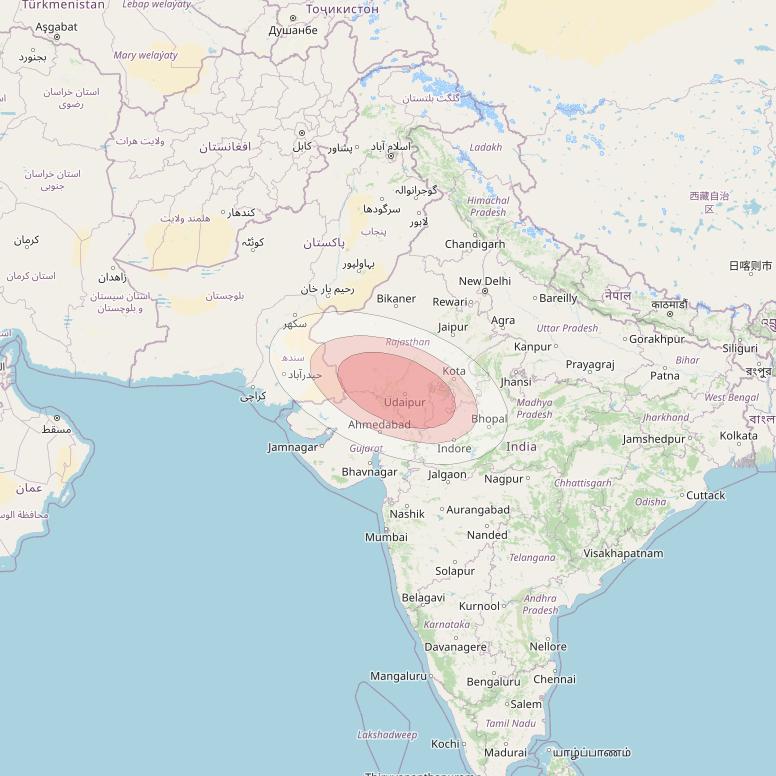

  • Thaicom 4 at 119° E downlink Ku-band Spot 106 beam coverage map

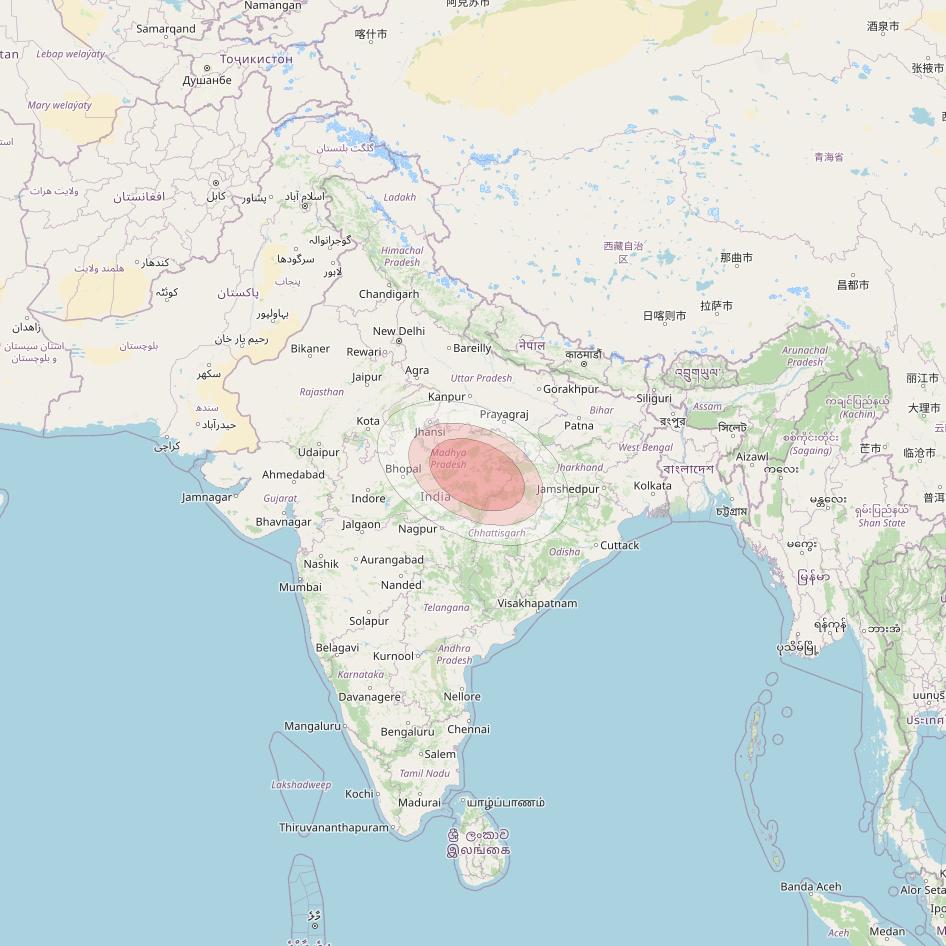

  • Thaicom 4 at 119° E downlink Ku-band Spot 107 beam coverage map

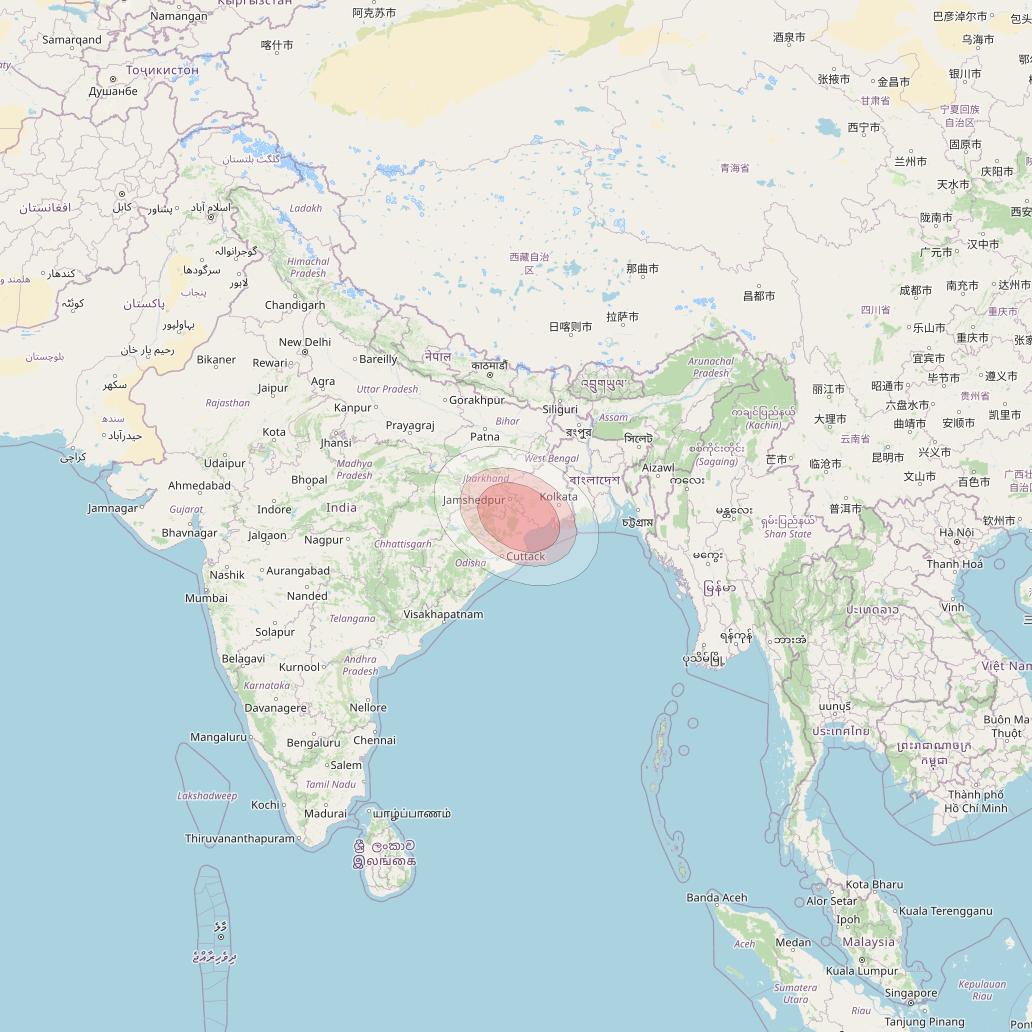

  • Thaicom 4 at 119° E downlink Ku-band Spot 108 beam coverage map

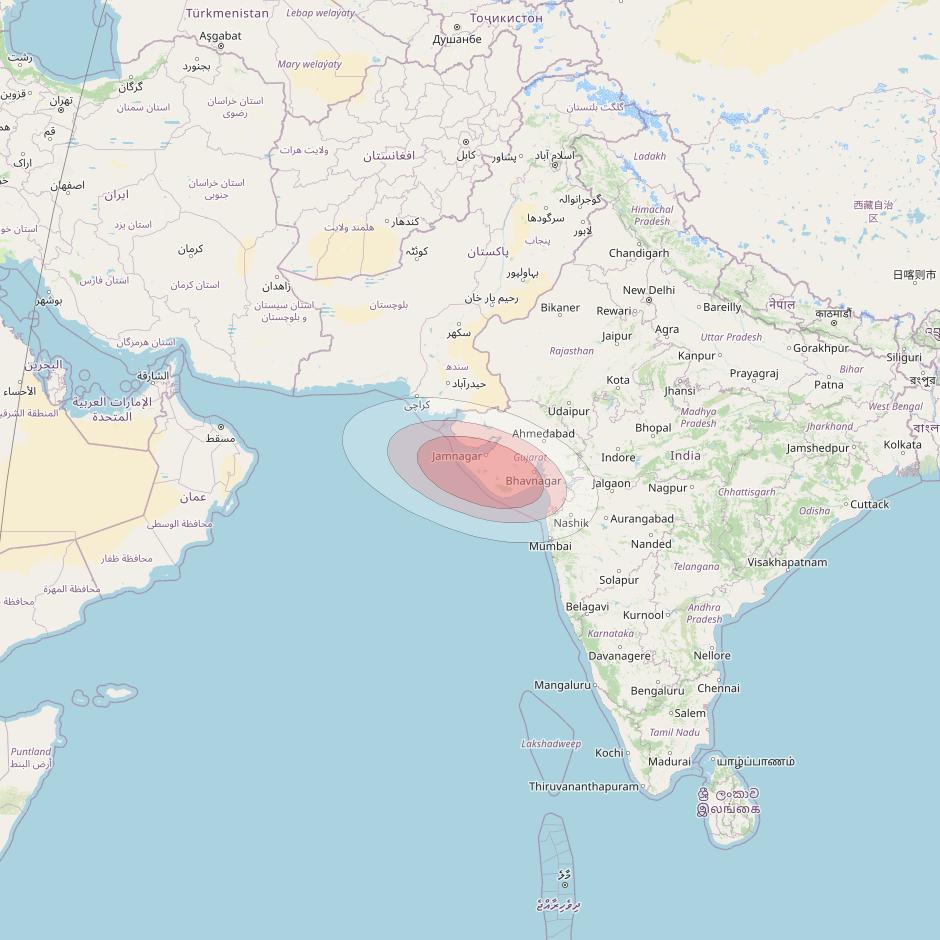

  • Thaicom 4 at 119° E downlink Ku-band Spot 109 beam coverage map

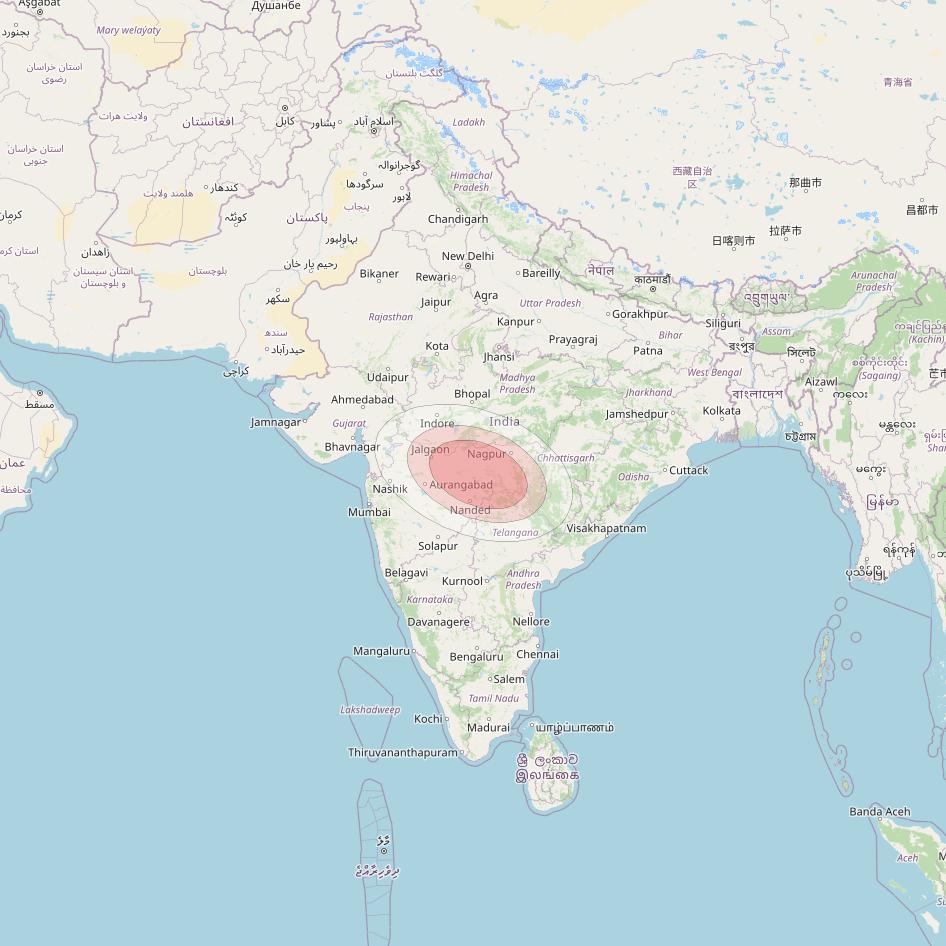

  • Thaicom 4 at 119° E downlink Ku-band Spot 110 beam coverage map

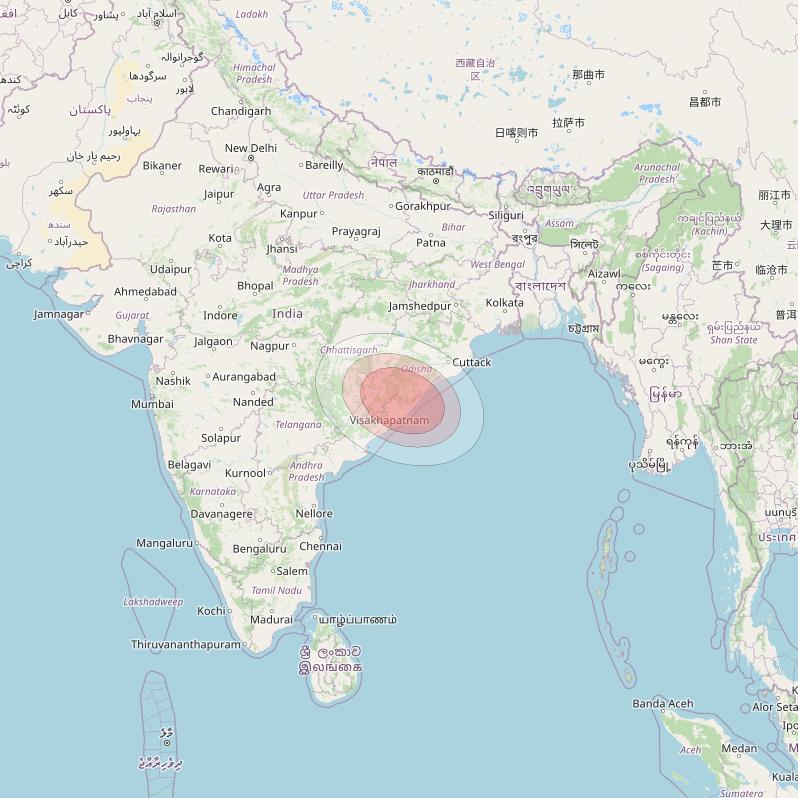

  • Thaicom 4 at 119° E downlink Ku-band Spot 111 beam coverage map

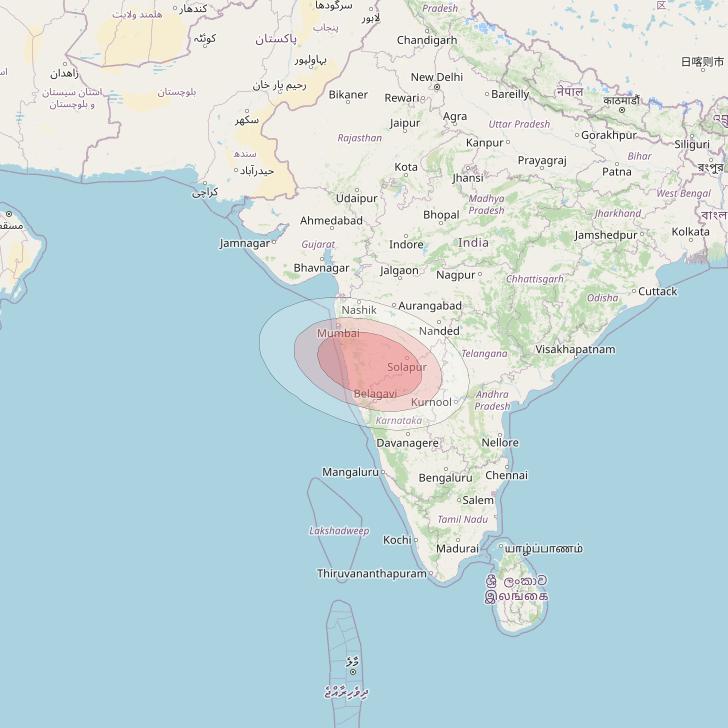

  • Thaicom 4 at 119° E downlink Ku-band Spot 112 beam coverage map

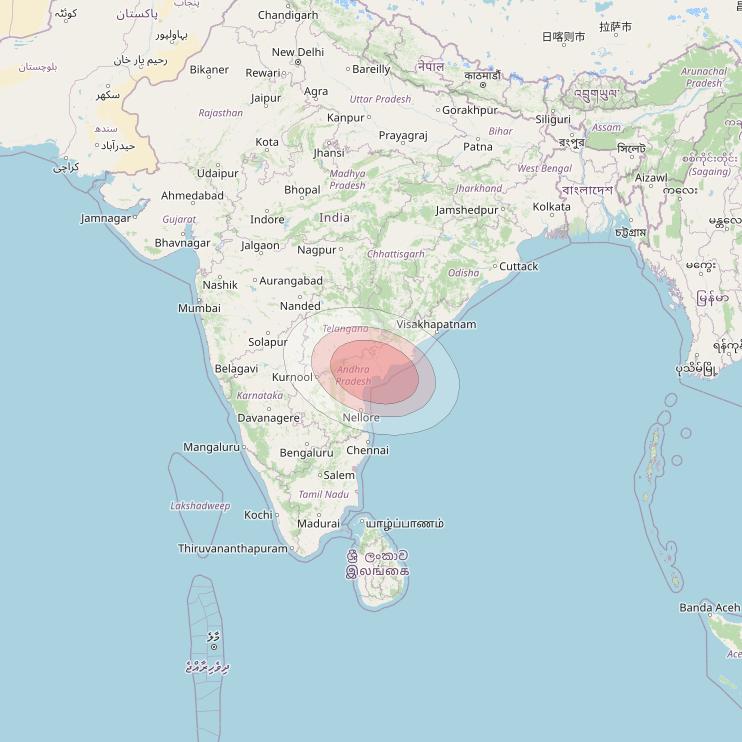

  • Thaicom 4 at 119° E downlink Ku-band Spot 113 beam coverage map

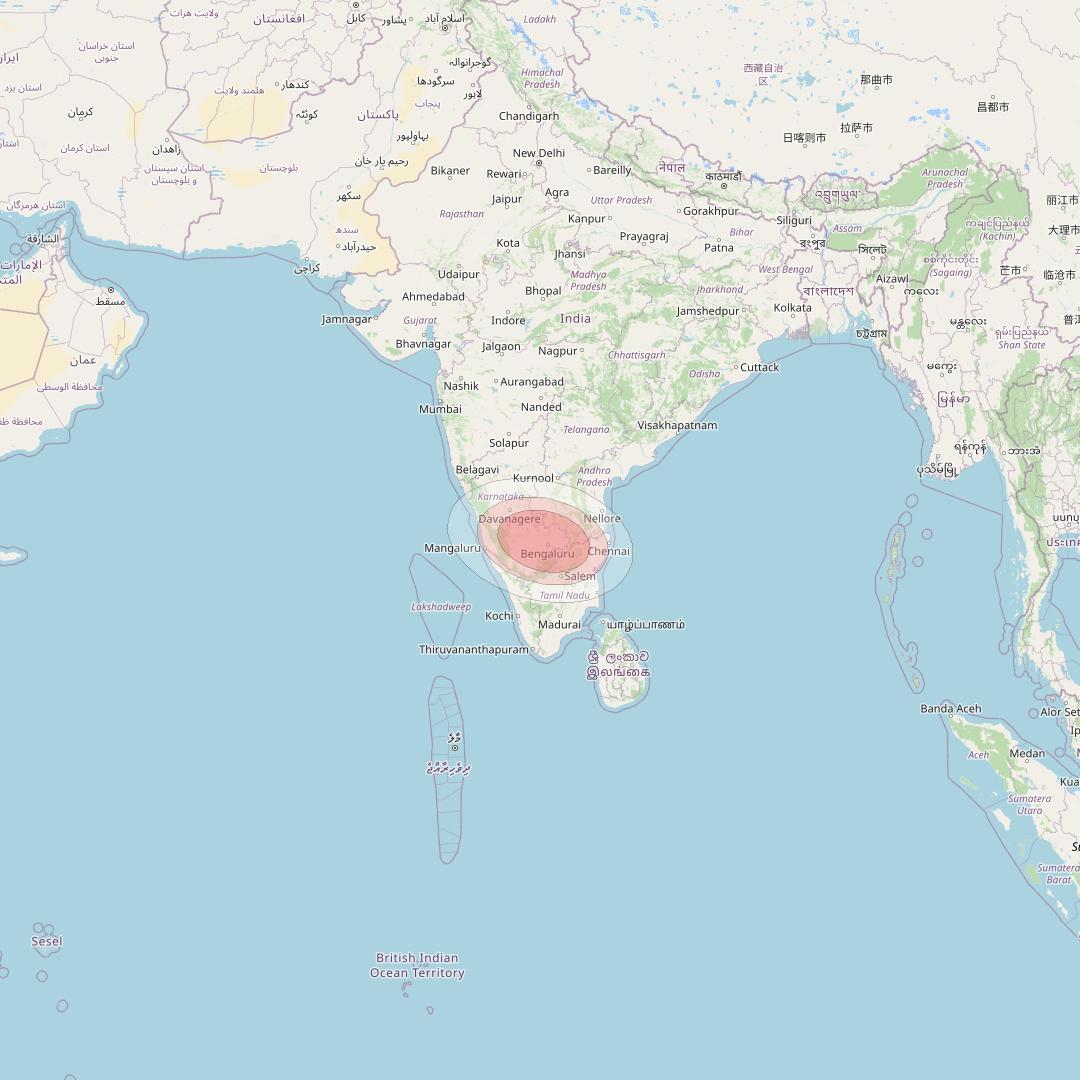

  • Thaicom 4 at 119° E downlink Ku-band Spot 114 beam coverage map

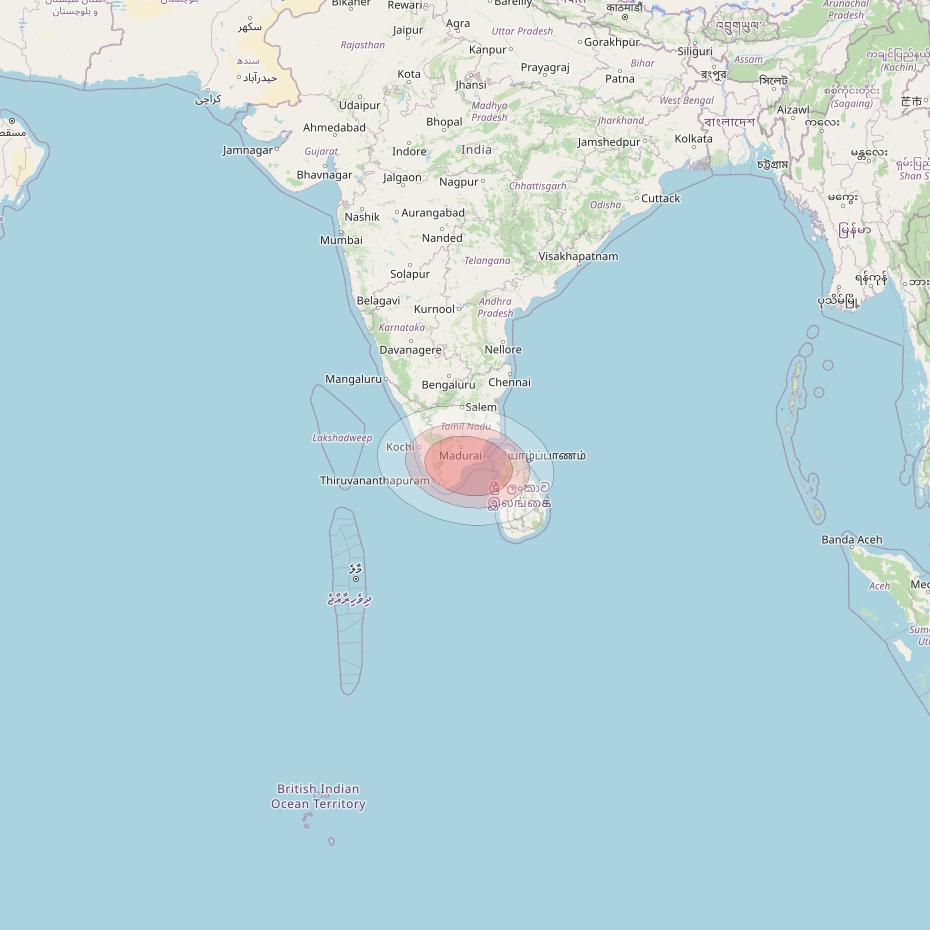

  • Thaicom 4 at 119° E downlink Ku-band Spot 115 beam coverage map
  • Thaicom 4 at 119° E downlink Ku-band Spot 116 beam coverage map

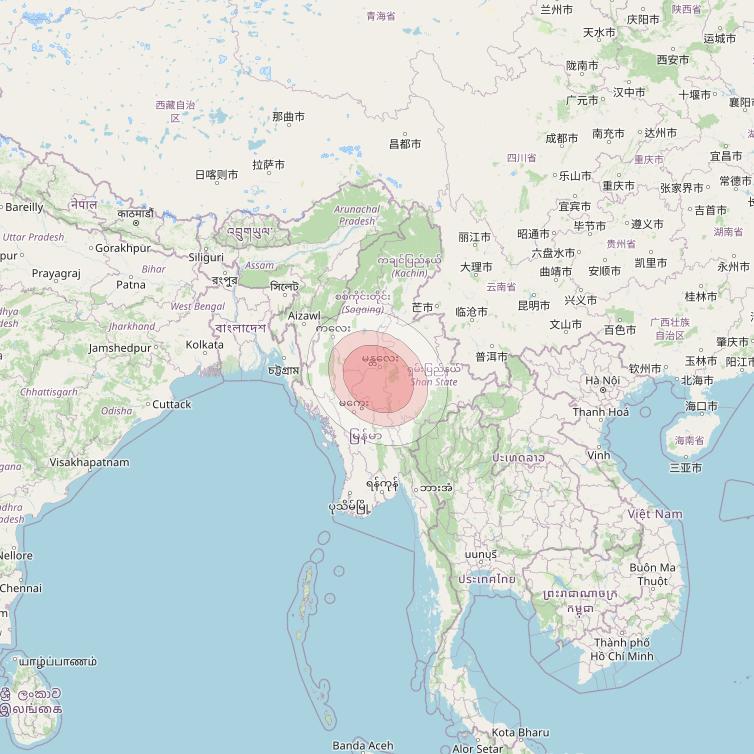

  • Thaicom 4 at 119° E downlink Ku-band Spot 201 beam coverage map

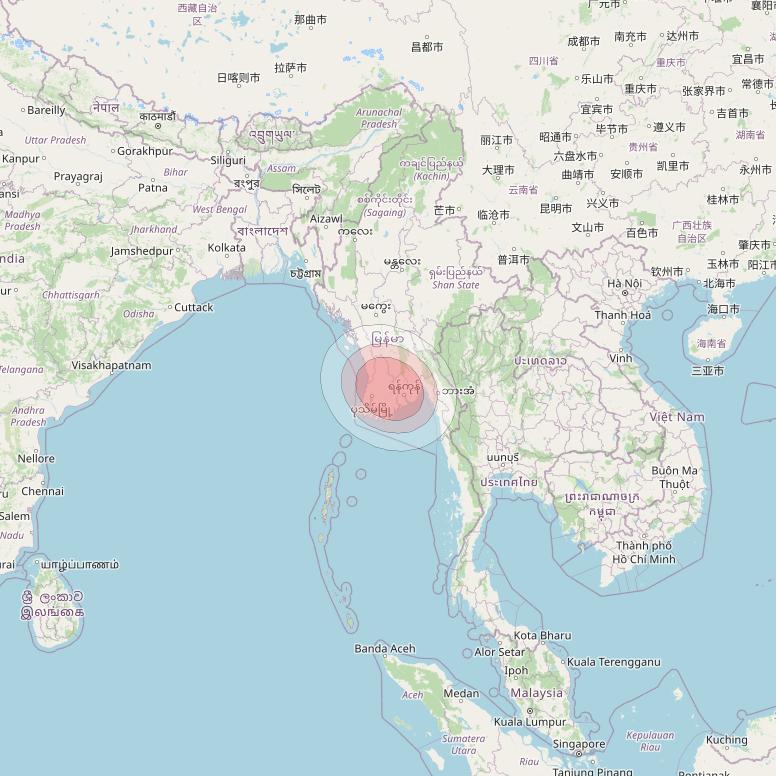

  • Thaicom 4 at 119° E downlink Ku-band Spot 202 beam coverage map

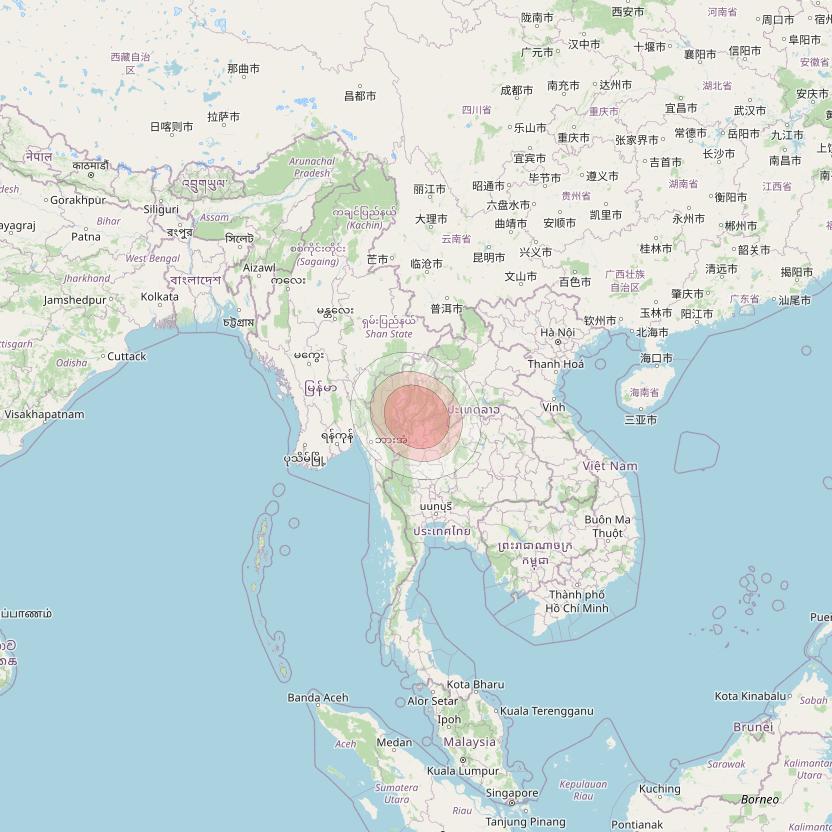

  • Thaicom 4 at 119° E downlink Ku-band Spot 203 beam coverage map

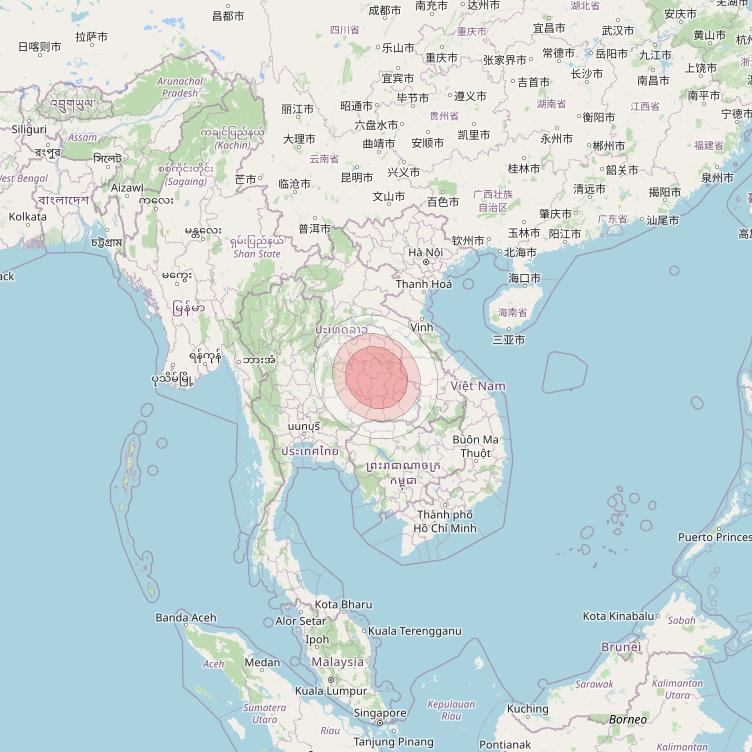

  • Thaicom 4 at 119° E downlink Ku-band Spot 204 beam coverage map

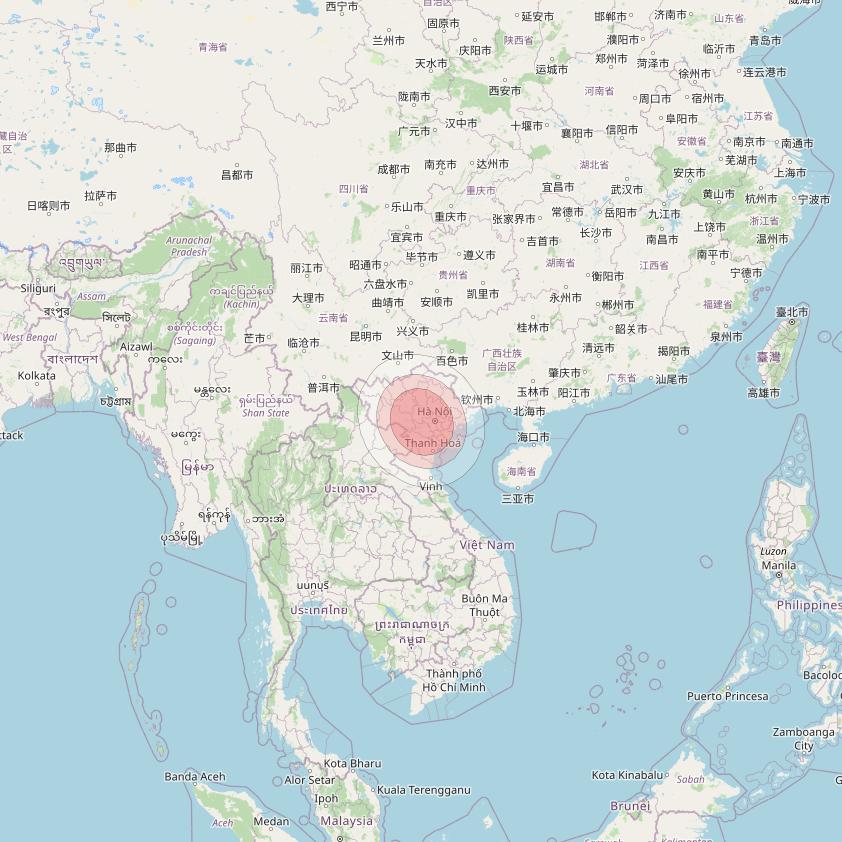

  • Thaicom 4 at 119° E downlink Ku-band Spot 205 beam coverage map
  • Thaicom 4 at 119° E downlink Ku-band Spot 206 beam coverage map

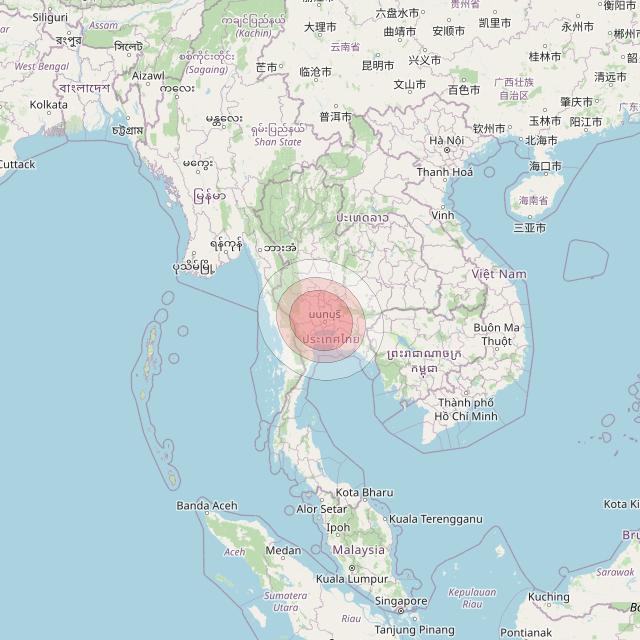

  • Thaicom 4 at 119° E downlink Ku-band Spot 207 beam coverage map

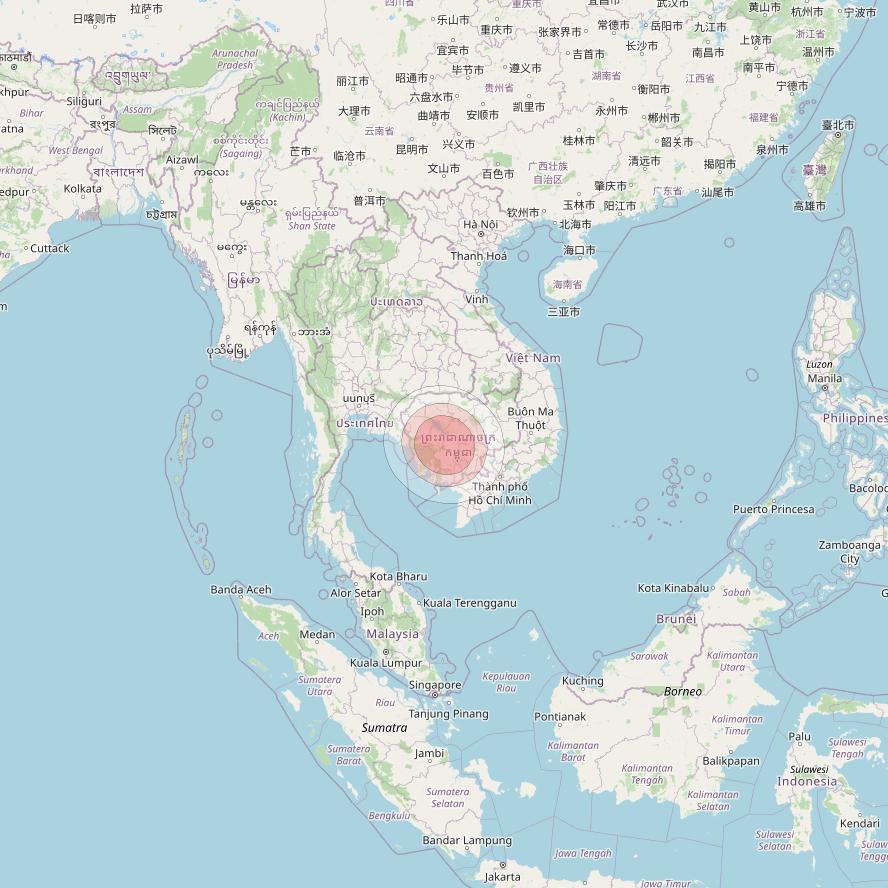

  • Thaicom 4 at 119° E downlink Ku-band Spot 208 beam coverage map

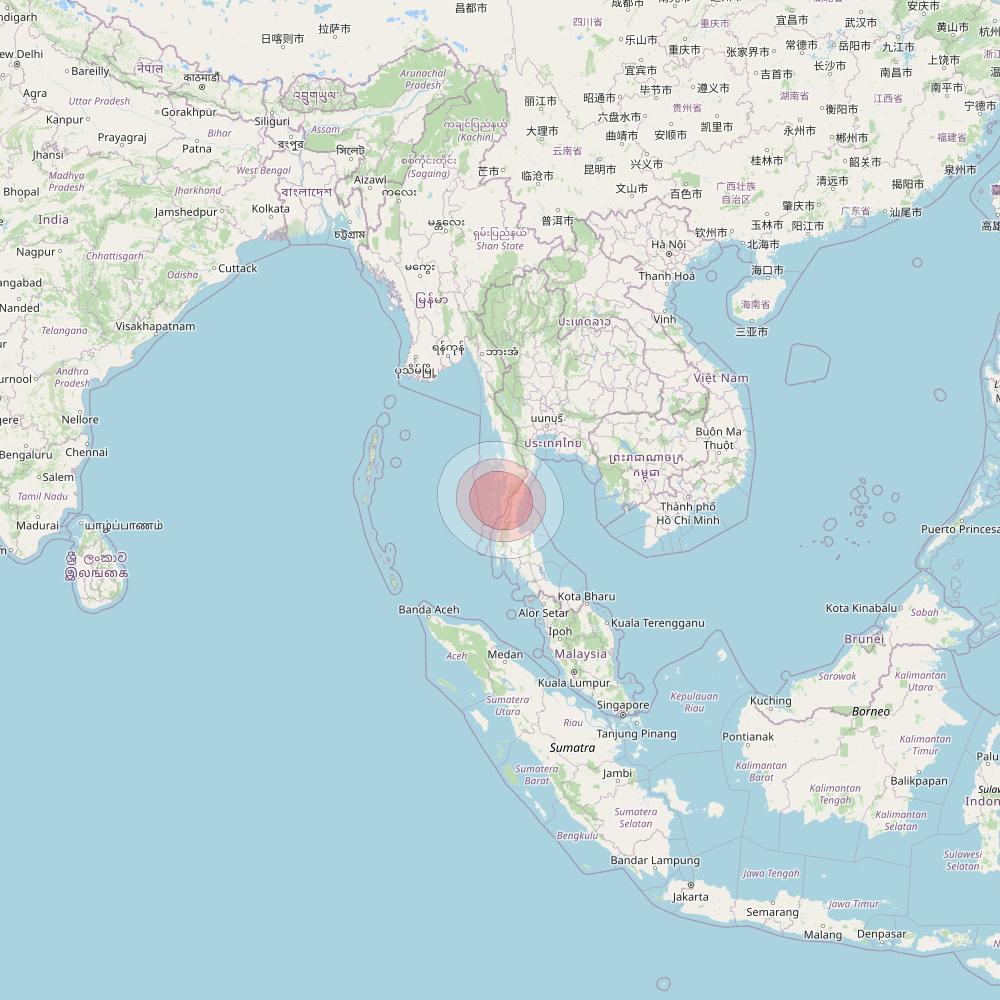

  • Thaicom 4 at 119° E downlink Ku-band Spot 209 beam coverage map

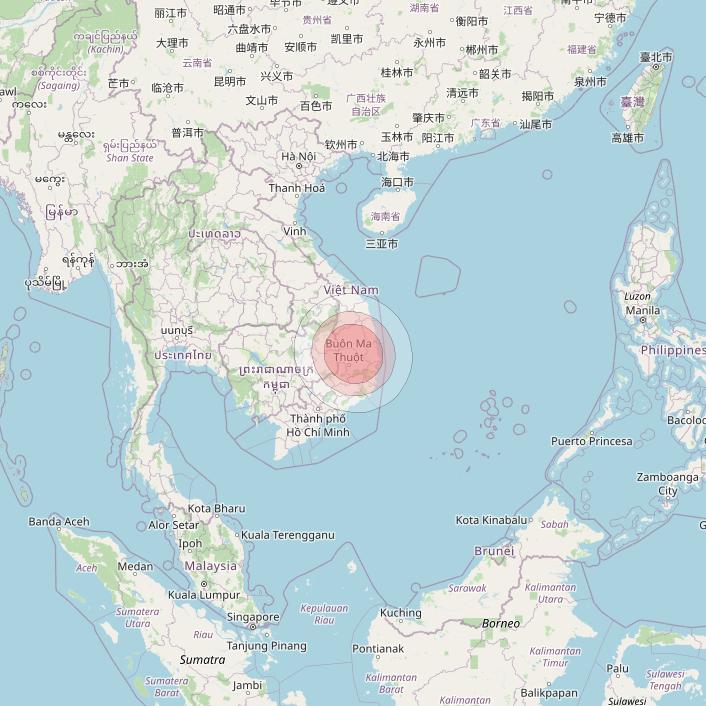

  • Thaicom 4 at 119° E downlink Ku-band Spot 210 beam coverage map

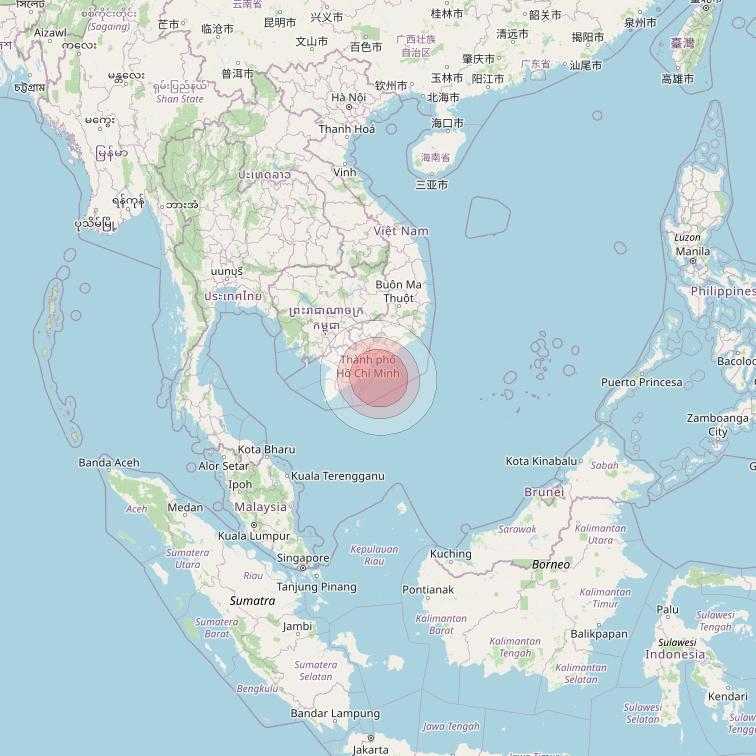

  • Thaicom 4 at 119° E downlink Ku-band Spot 211 beam coverage map

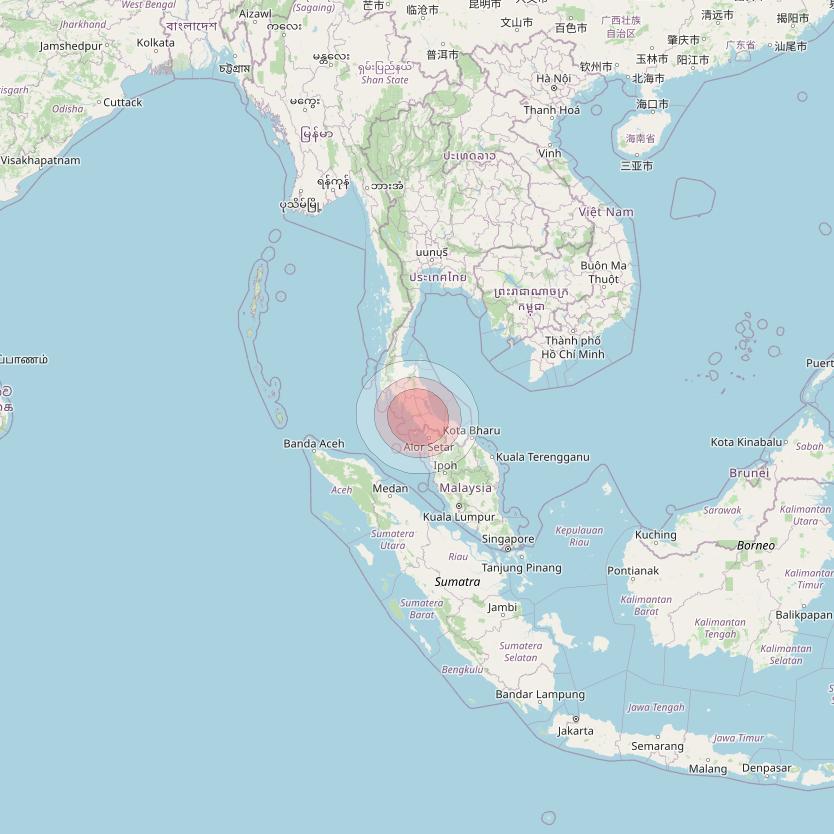

  • Thaicom 4 at 119° E downlink Ku-band Spot 212 beam coverage map

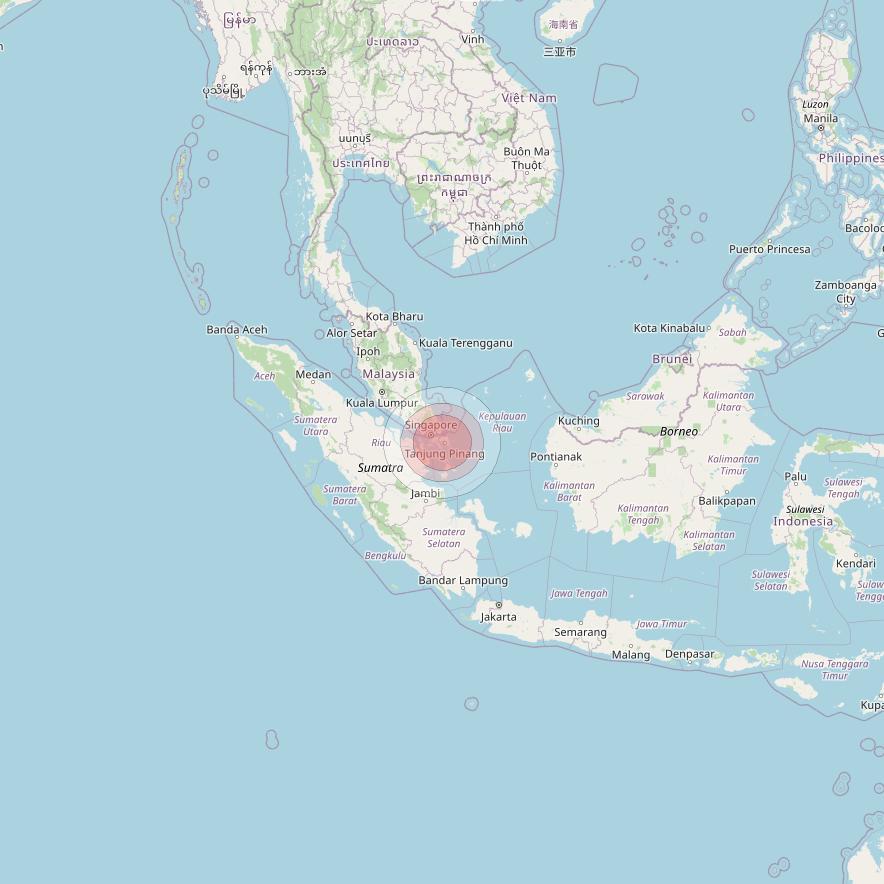

  • Thaicom 4 at 119° E downlink Ku-band Spot 213 beam coverage map

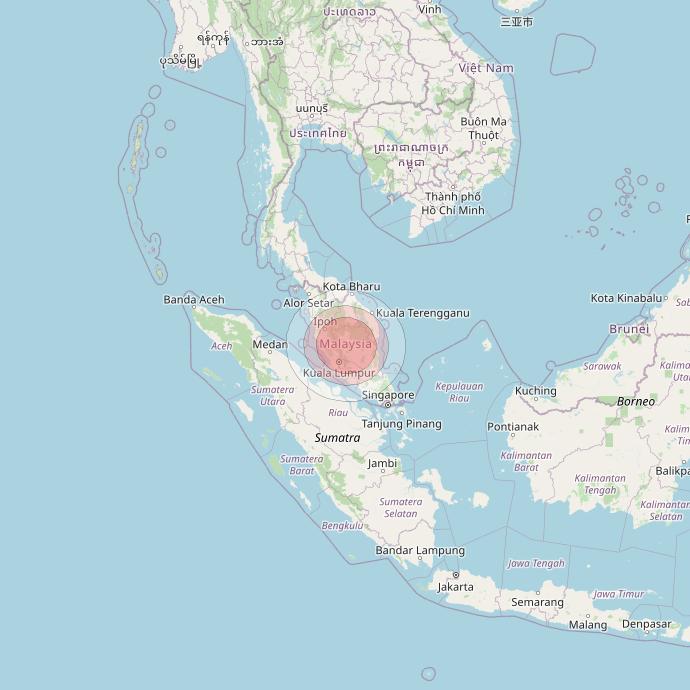

  • Thaicom 4 at 119° E downlink Ku-band Spot 214 beam coverage map

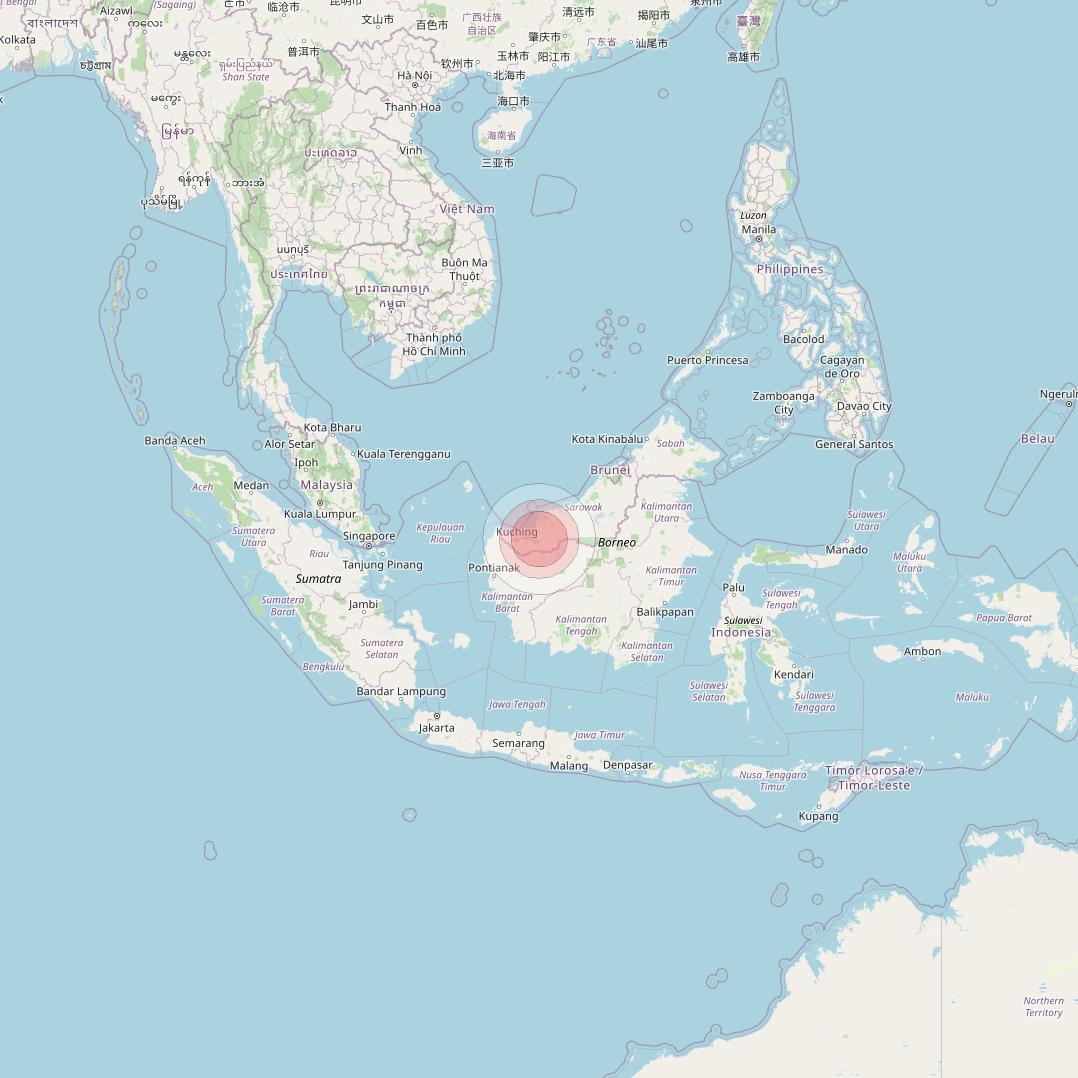

  • Thaicom 4 at 119° E downlink Ku-band Spot 215 beam coverage map

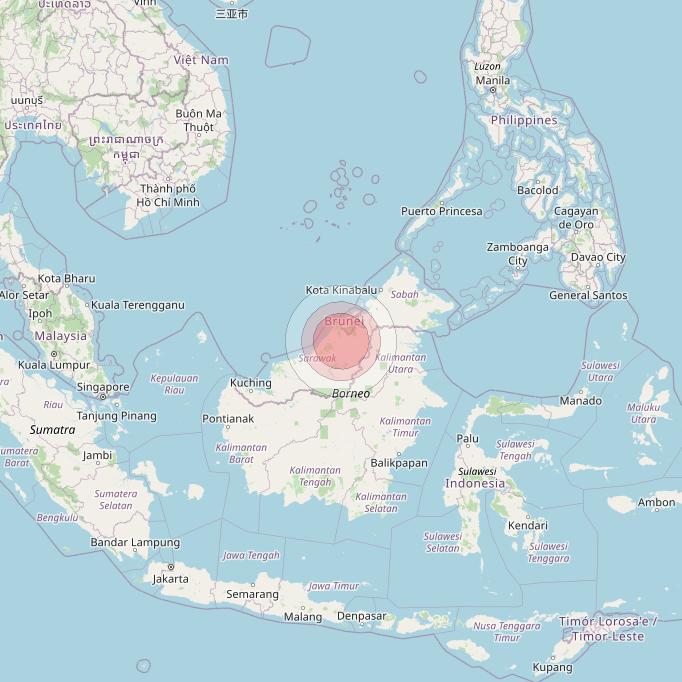

  • Thaicom 4 at 119° E downlink Ku-band Spot 216 beam coverage map

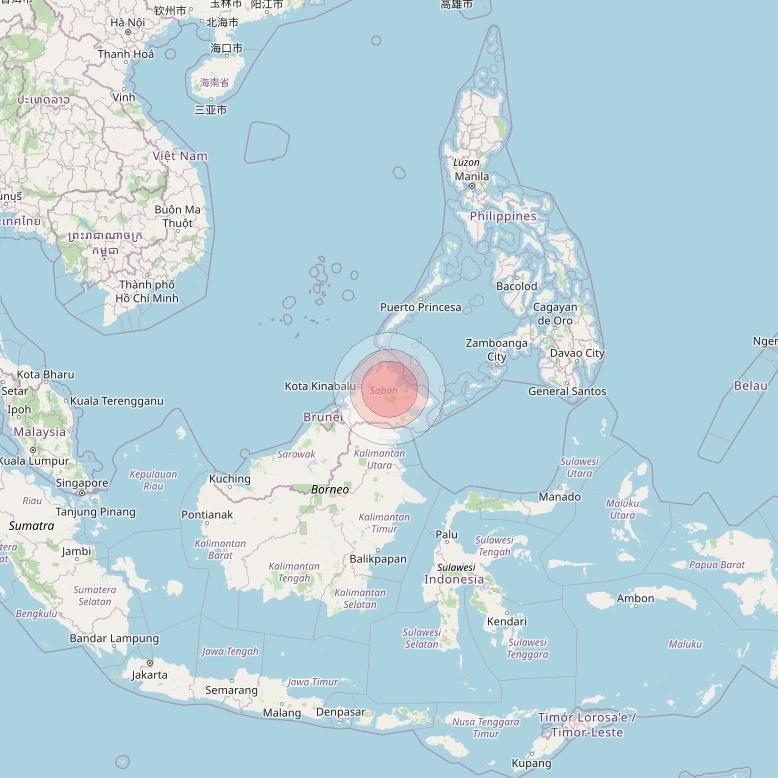

  • Thaicom 4 at 119° E downlink Ku-band Spot 217 beam coverage map

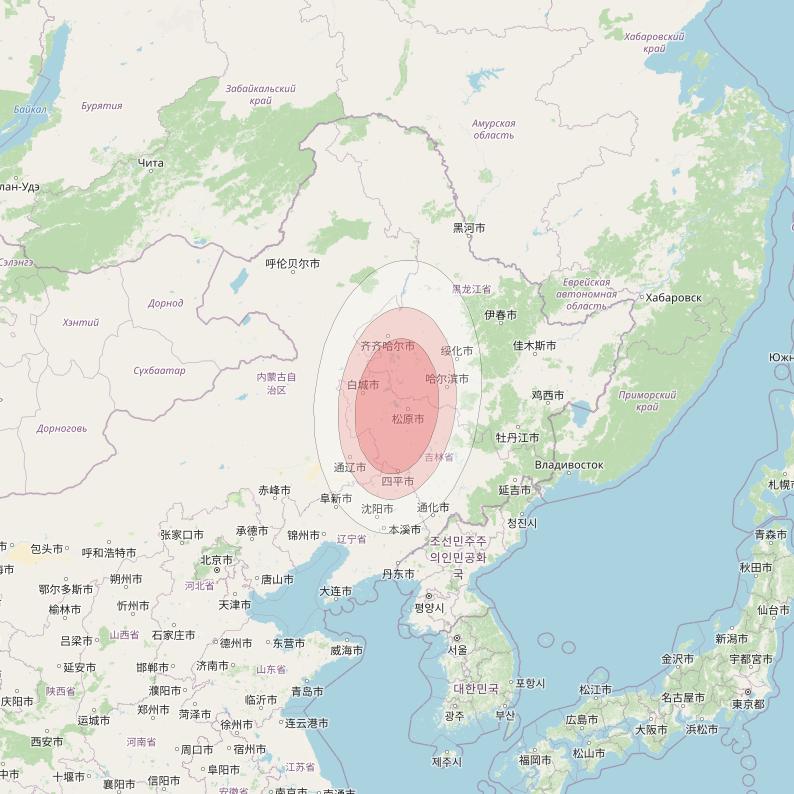

  • Thaicom 4 at 119° E downlink Ku-band Spot 301 beam coverage map

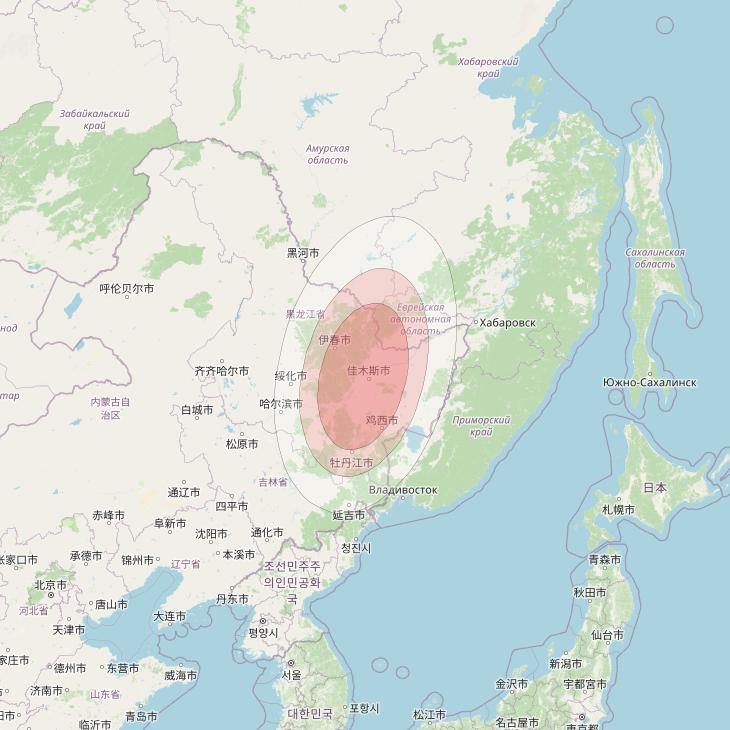

  • Thaicom 4 at 119° E downlink Ku-band Spot 302 beam coverage map

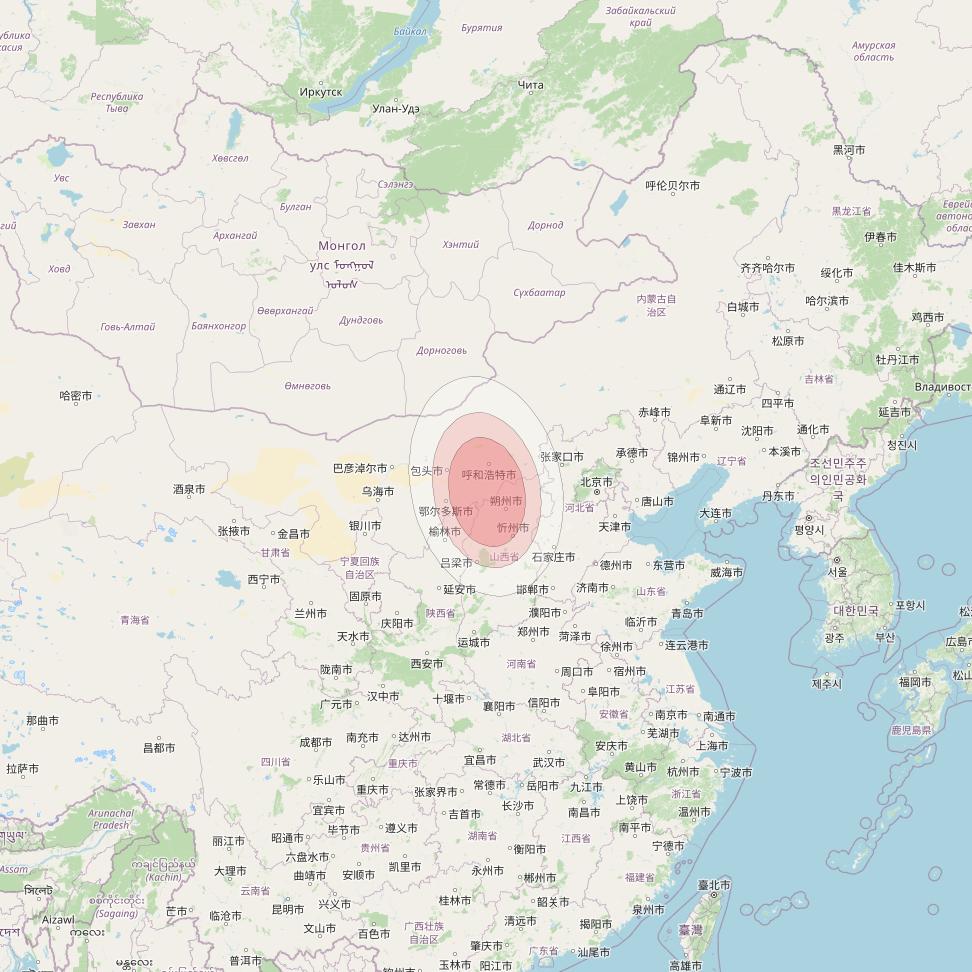

  • Thaicom 4 at 119° E downlink Ku-band Spot 303 beam coverage map

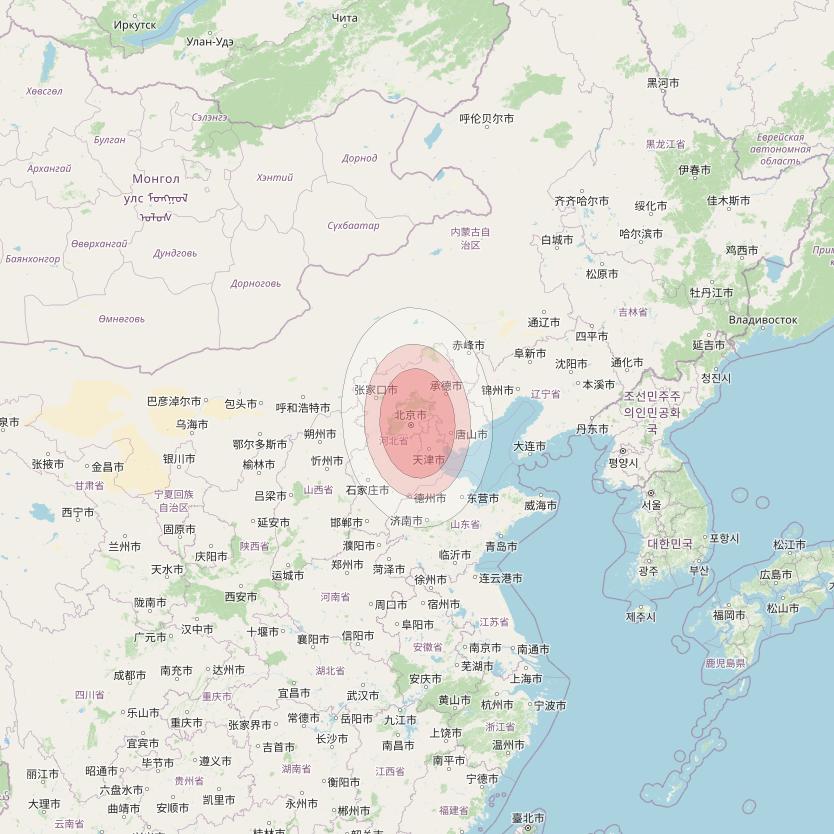

  • Thaicom 4 at 119° E downlink Ku-band Spot 304 beam coverage map

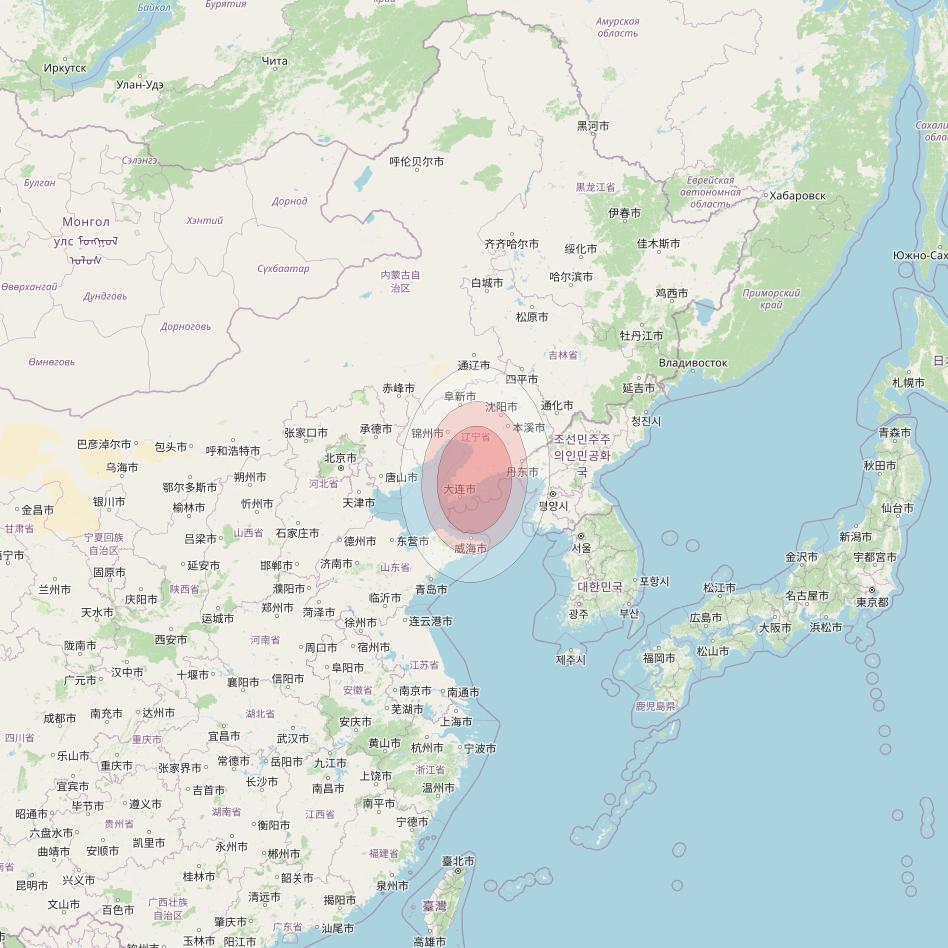

  • Thaicom 4 at 119° E downlink Ku-band Spot 305 beam coverage map

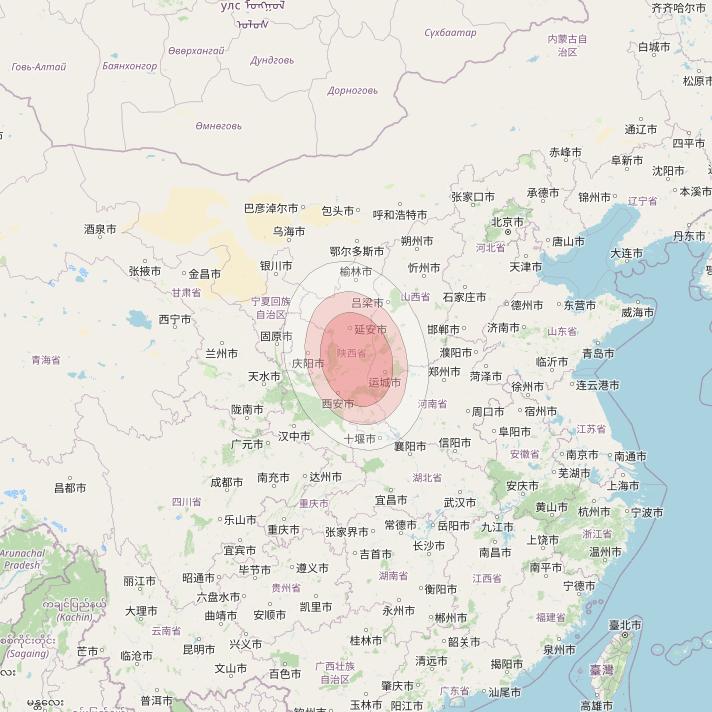

  • Thaicom 4 at 119° E downlink Ku-band Spot 306 beam coverage map

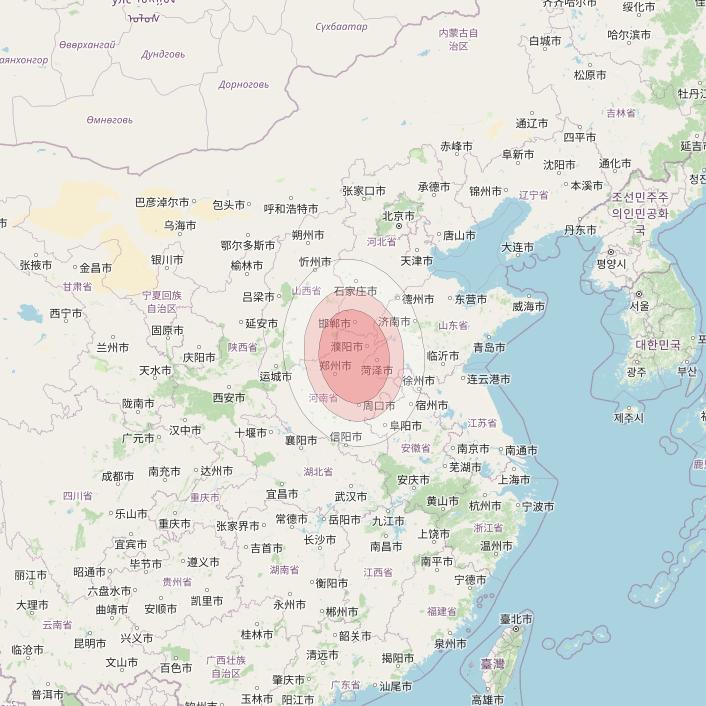

  • Thaicom 4 at 119° E downlink Ku-band Spot 307 beam coverage map

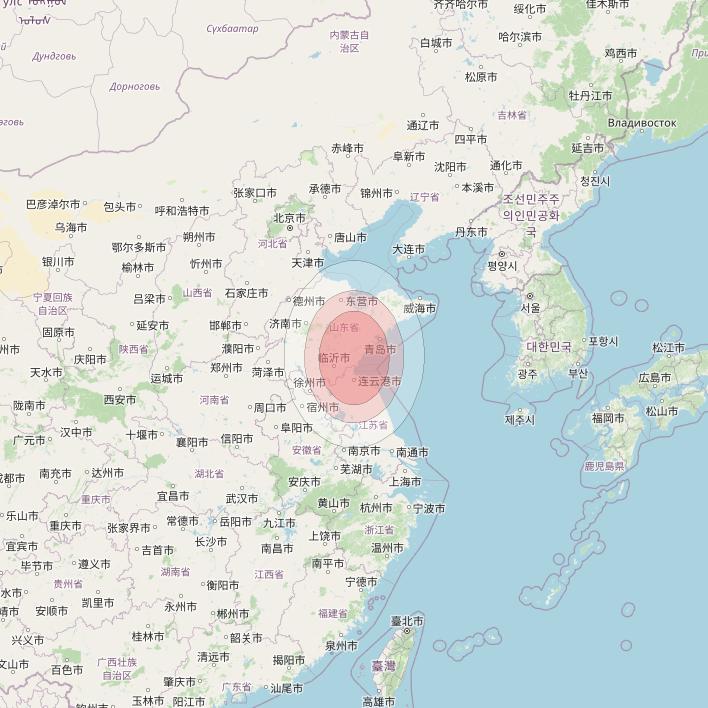

  • Thaicom 4 at 119° E downlink Ku-band Spot 308 beam coverage map

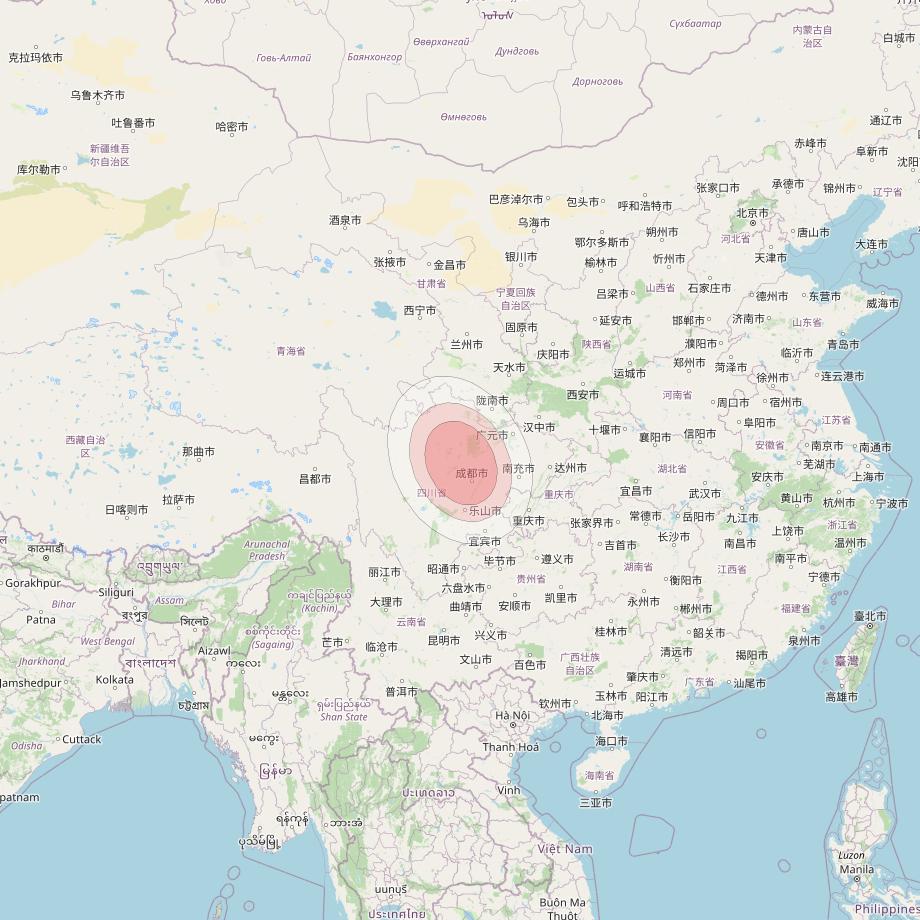

  • Thaicom 4 at 119° E downlink Ku-band Spot 309 beam coverage map

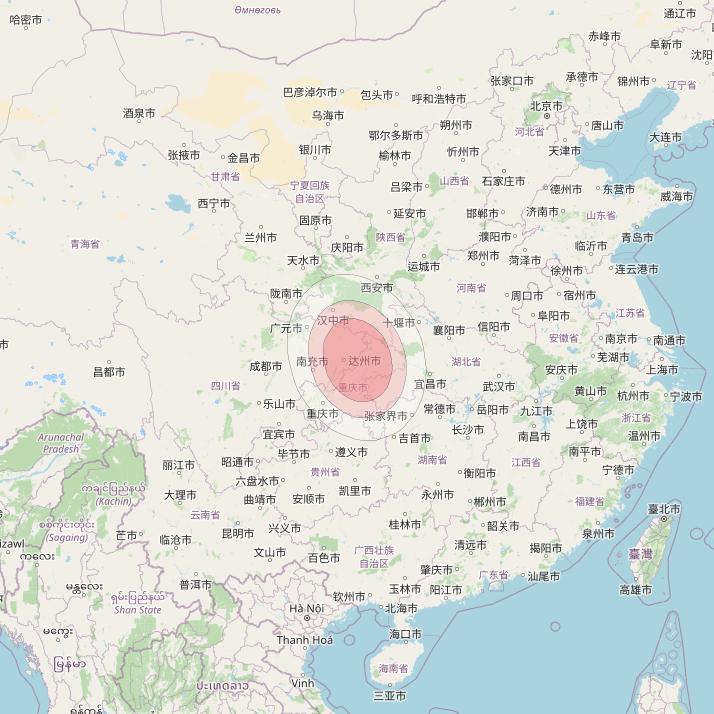

  • Thaicom 4 at 119° E downlink Ku-band Spot 310 beam coverage map

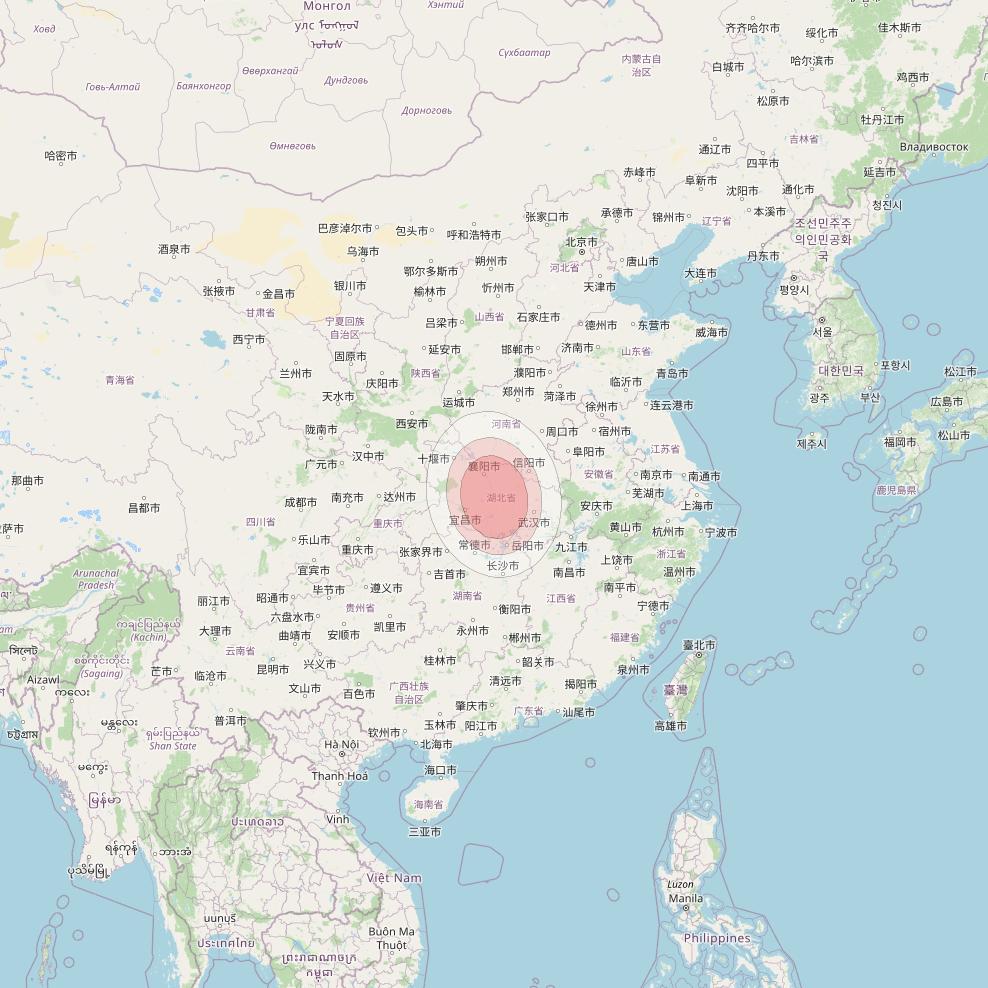

  • Thaicom 4 at 119° E downlink Ku-band Spot 311 beam coverage map

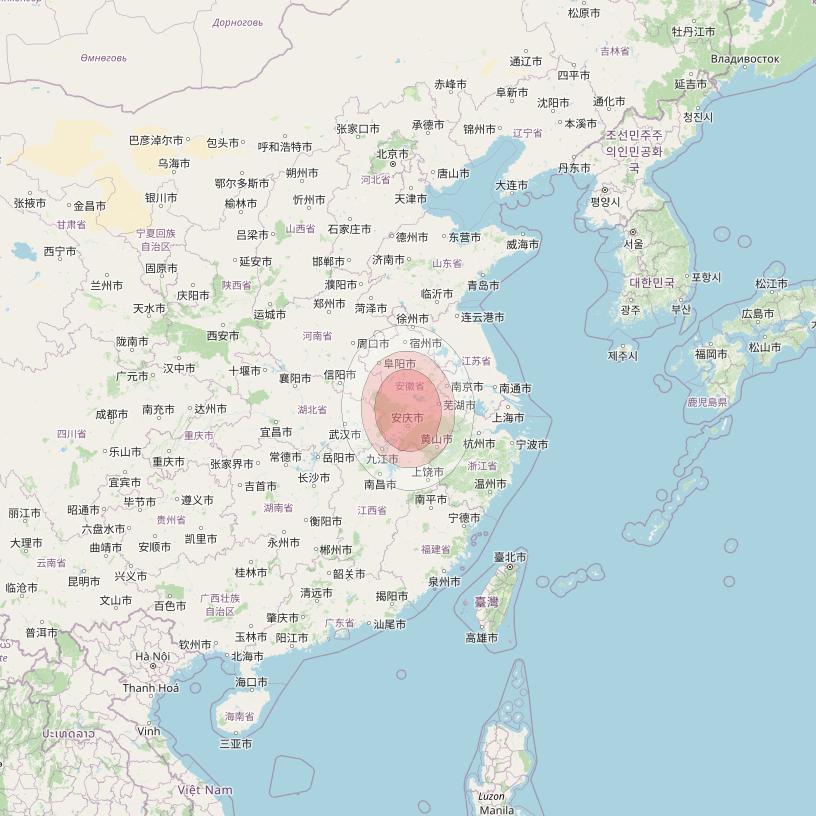

  • Thaicom 4 at 119° E downlink Ku-band Spot 312 beam coverage map

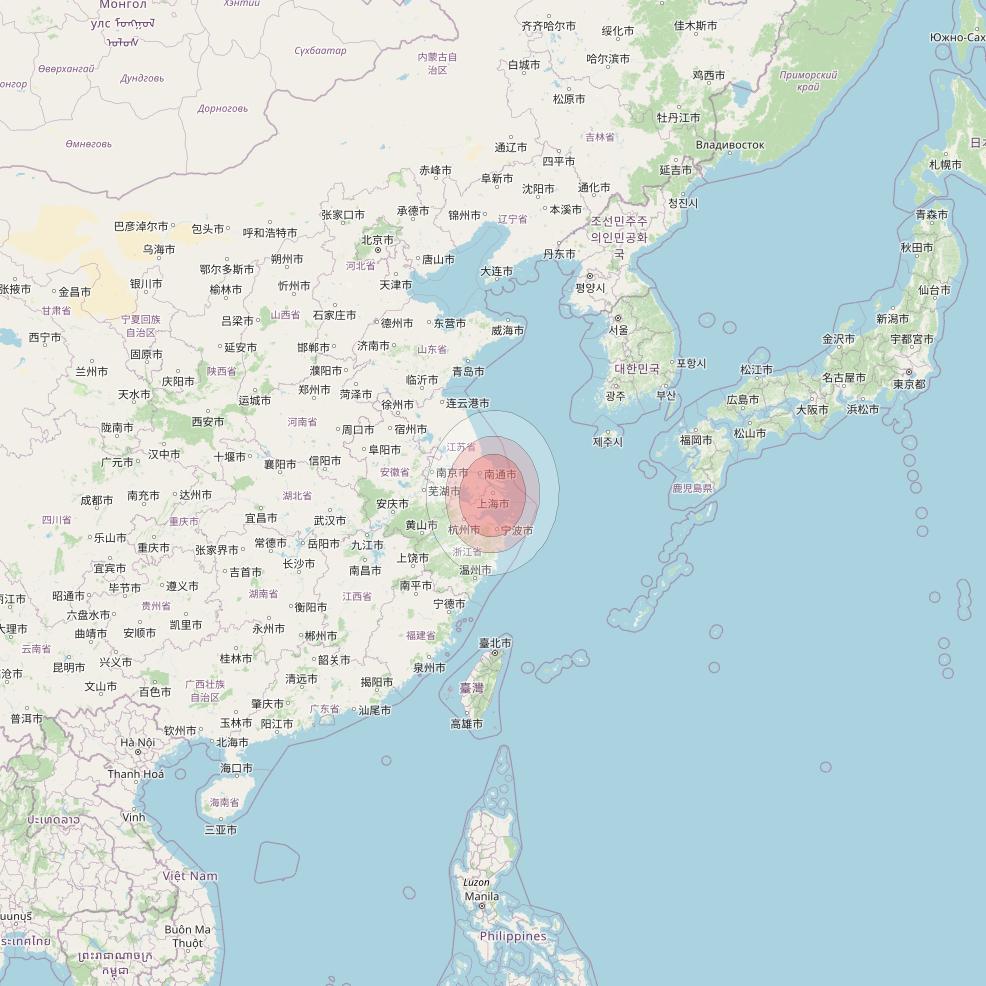

  • Thaicom 4 at 119° E downlink Ku-band Spot 313 beam coverage map

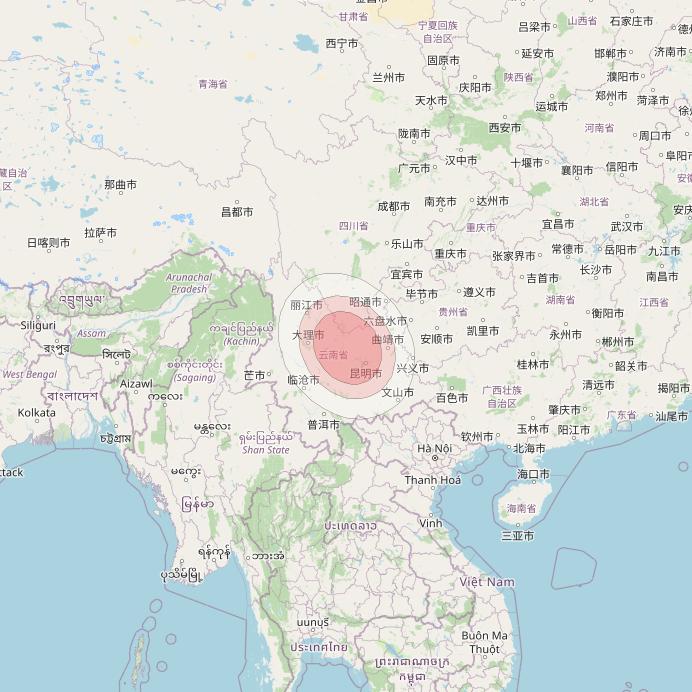

  • Thaicom 4 at 119° E downlink Ku-band Spot 314 beam coverage map

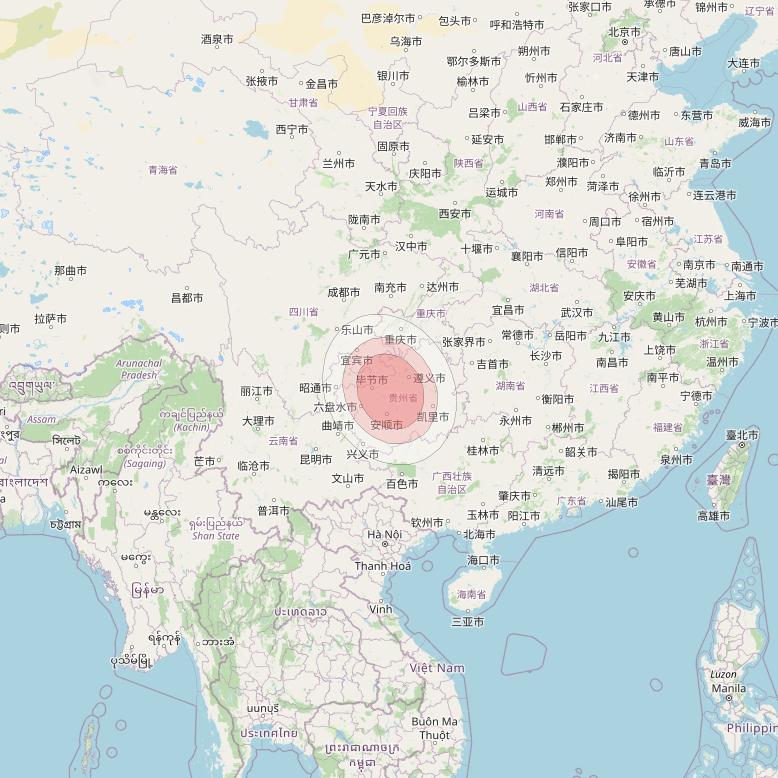

  • Thaicom 4 at 119° E downlink Ku-band Spot 315 beam coverage map

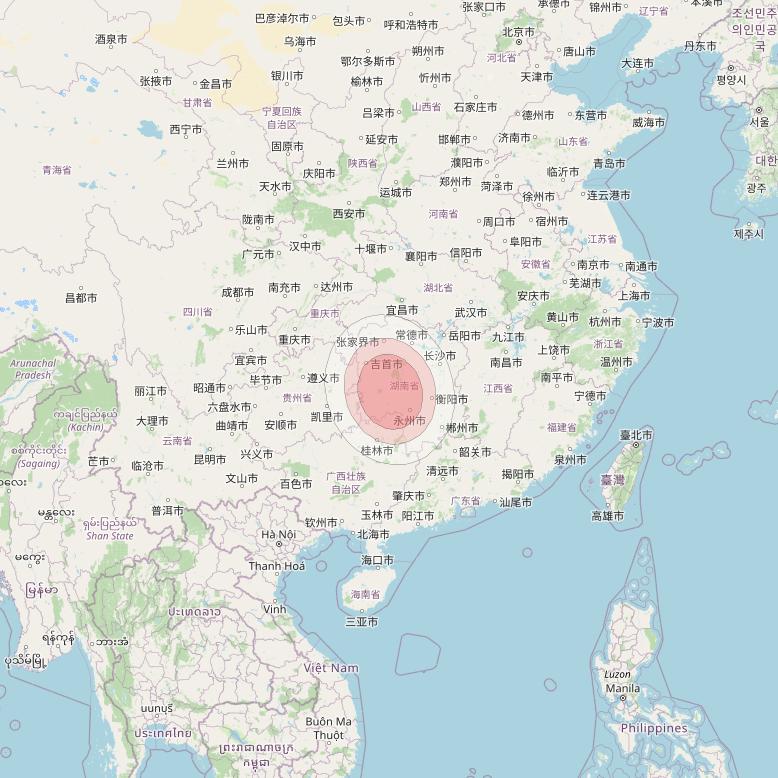

  • Thaicom 4 at 119° E downlink Ku-band Spot 316 beam coverage map

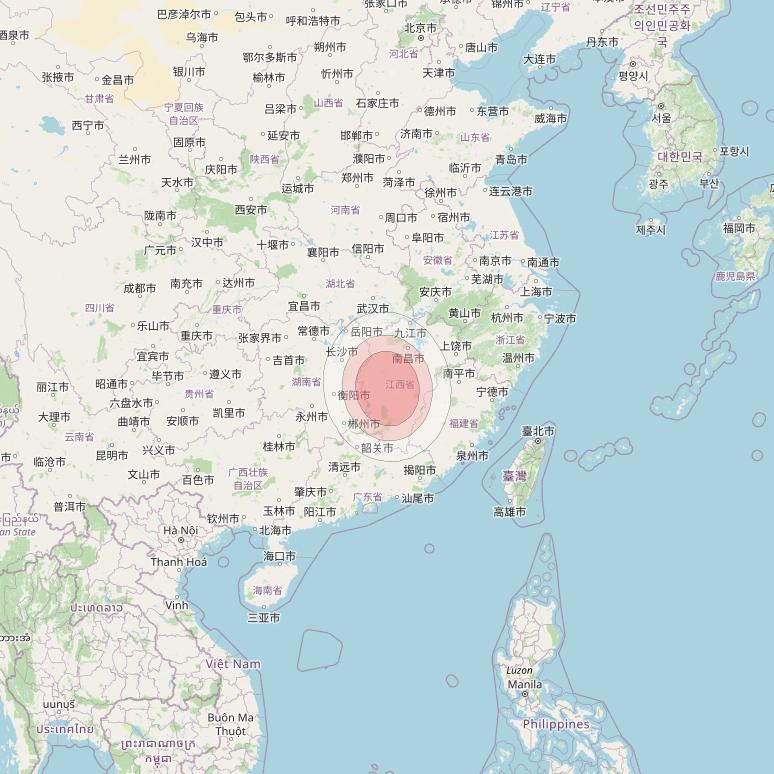

  • Thaicom 4 at 119° E downlink Ku-band Spot 317 beam coverage map

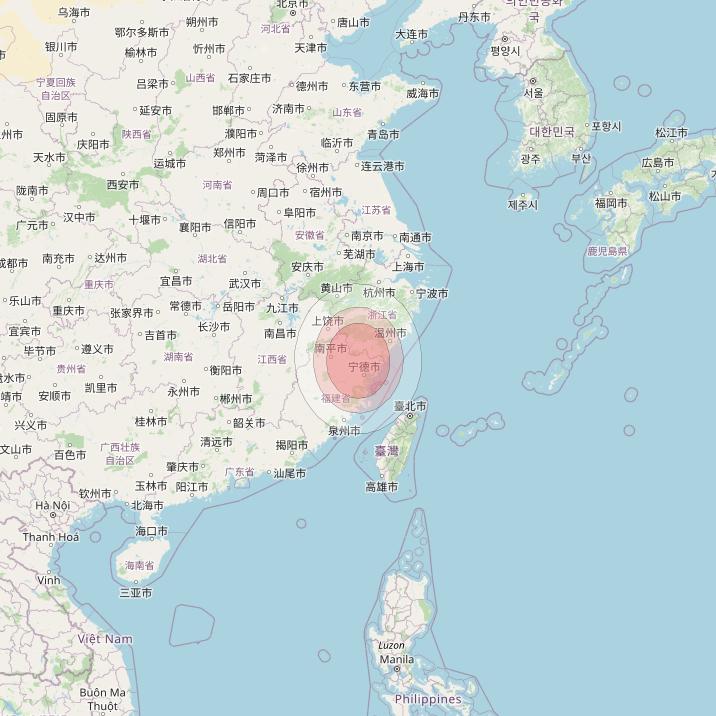

  • Thaicom 4 at 119° E downlink Ku-band Spot 318 beam coverage map

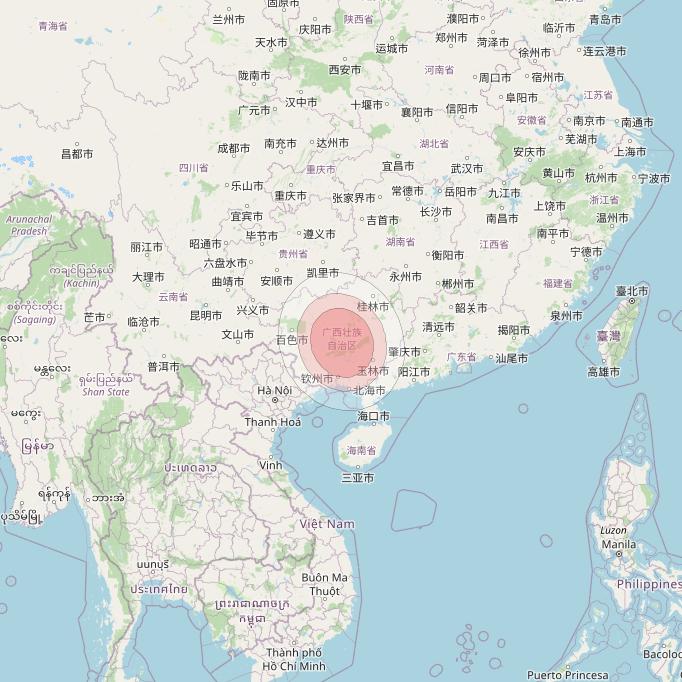

  • Thaicom 4 at 119° E downlink Ku-band Spot 319 beam coverage map

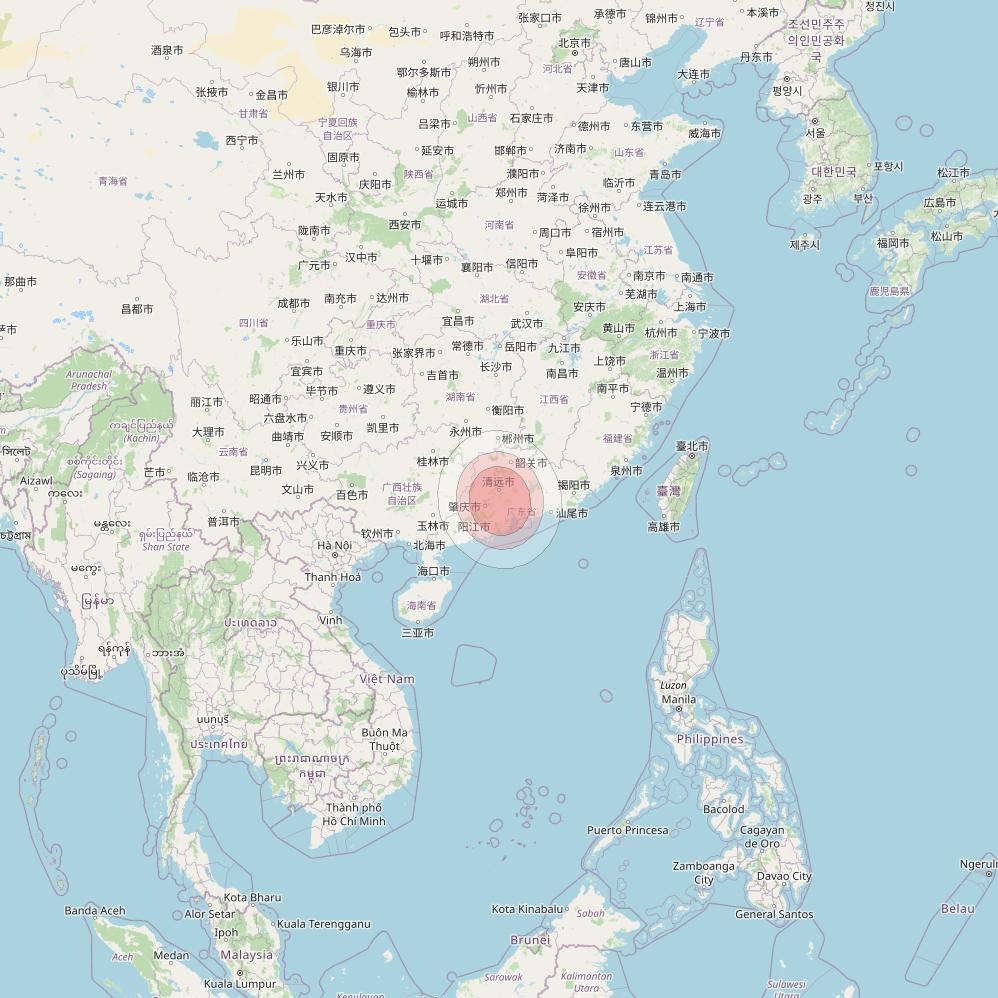

  • Thaicom 4 at 119° E downlink Ku-band Spot 320 beam coverage map

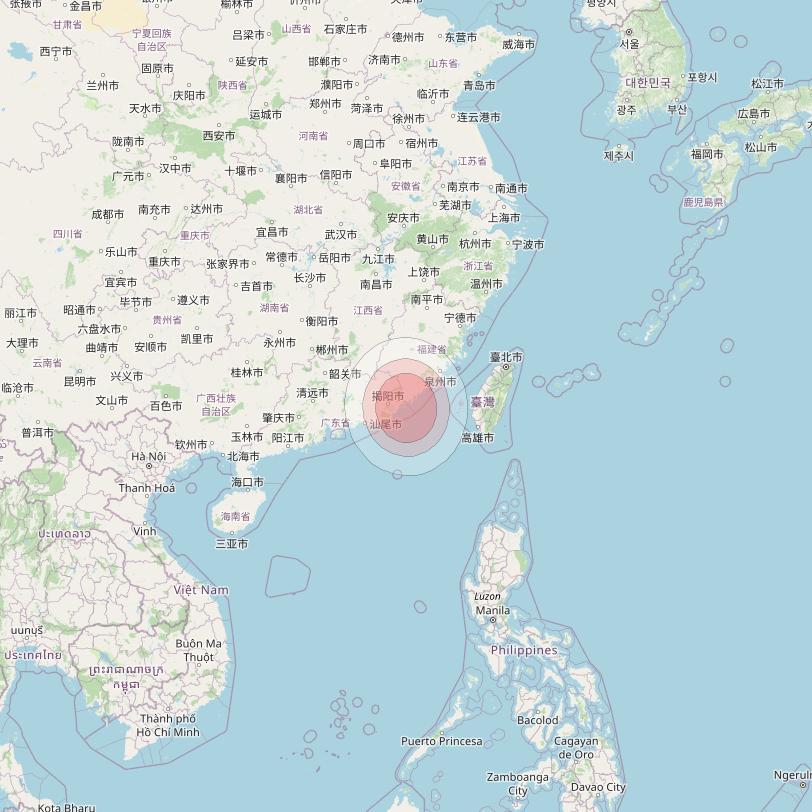

  • Thaicom 4 at 119° E downlink Ku-band Spot 321 beam coverage map

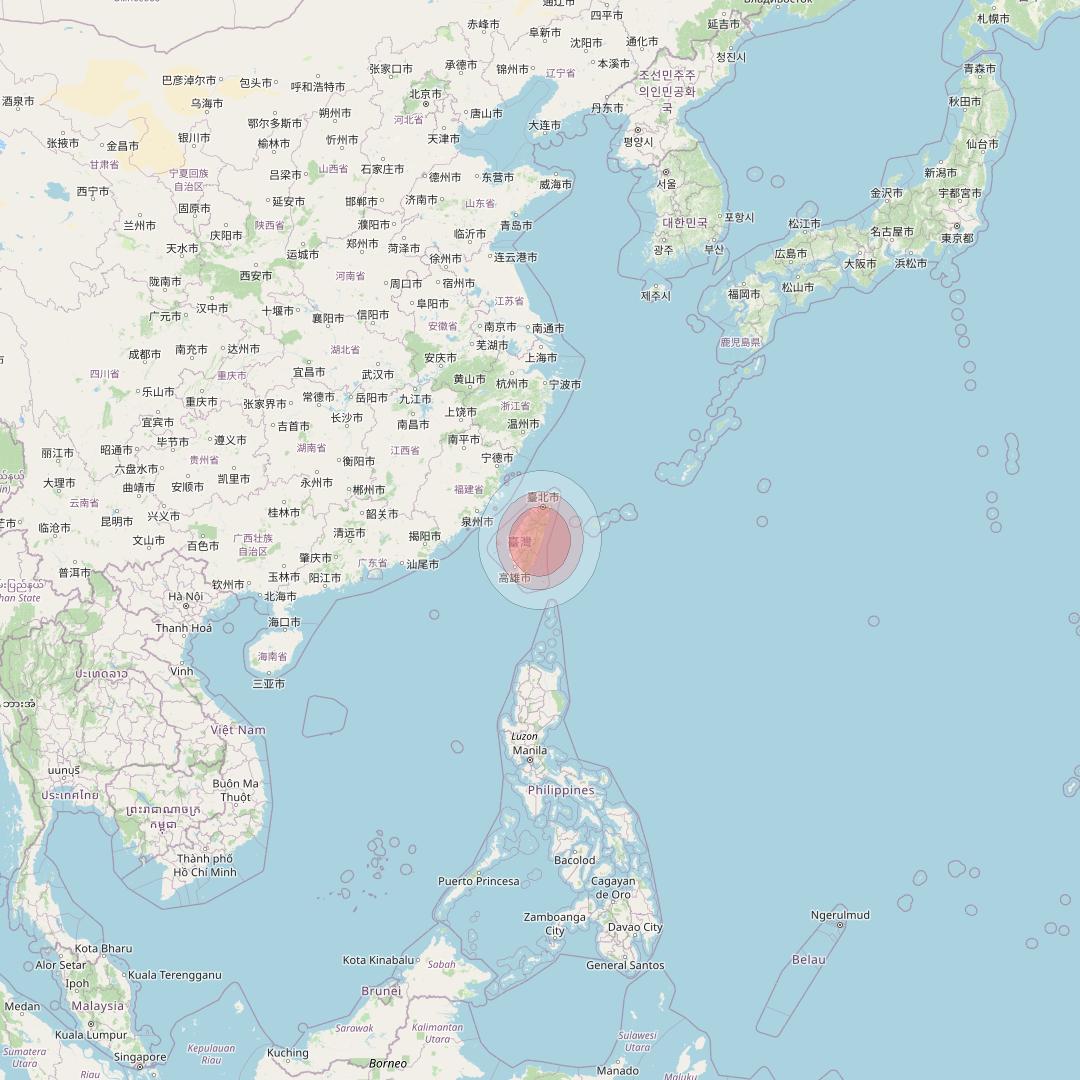

  • Thaicom 4 at 119° E downlink Ku-band Spot 322 beam coverage map

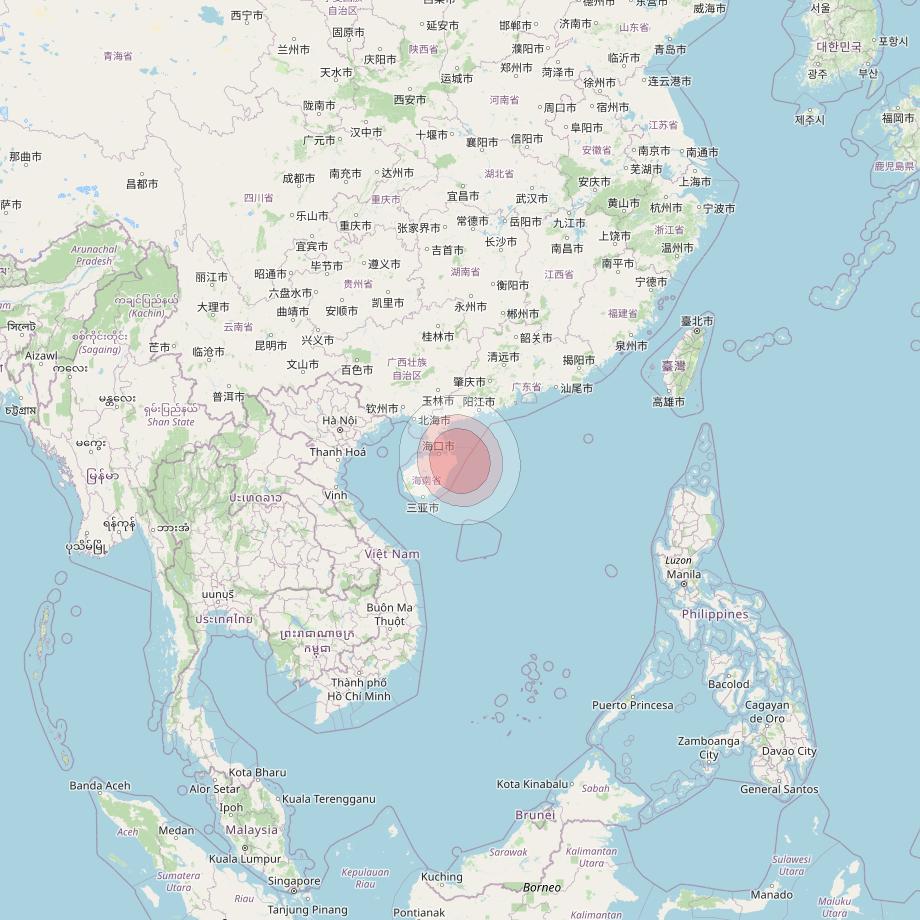

  • Thaicom 4 at 119° E downlink Ku-band Spot 323 beam coverage map
  • Thaicom 4 at 119° E downlink Ku-band Spot 401 beam coverage map

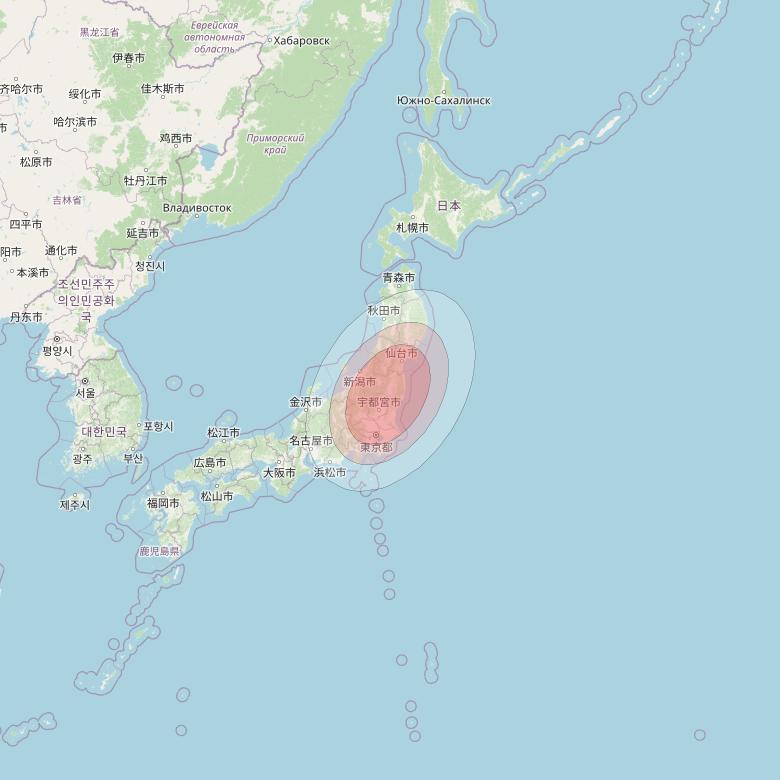

  • Thaicom 4 at 119° E downlink Ku-band Spot 402 beam coverage map
  • Thaicom 4 at 119° E downlink Ku-band Spot 403 beam coverage map

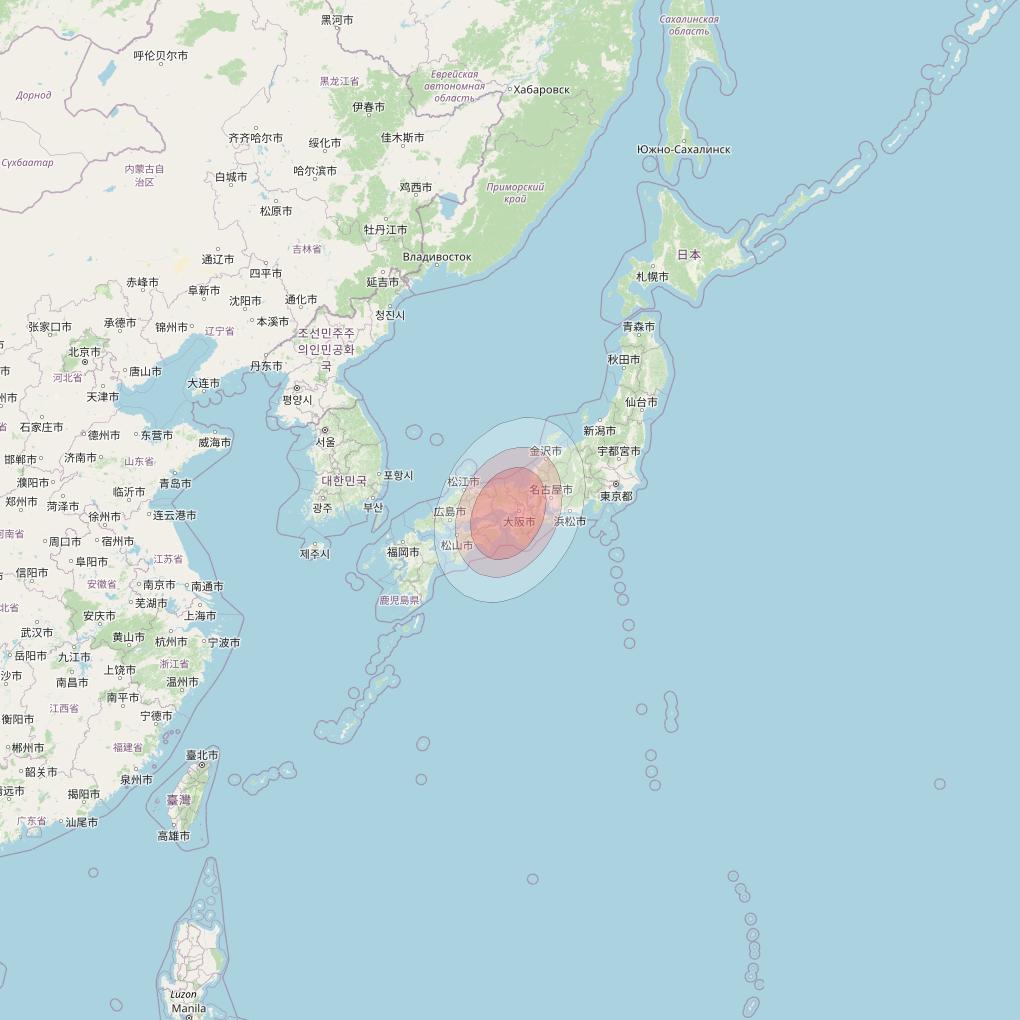

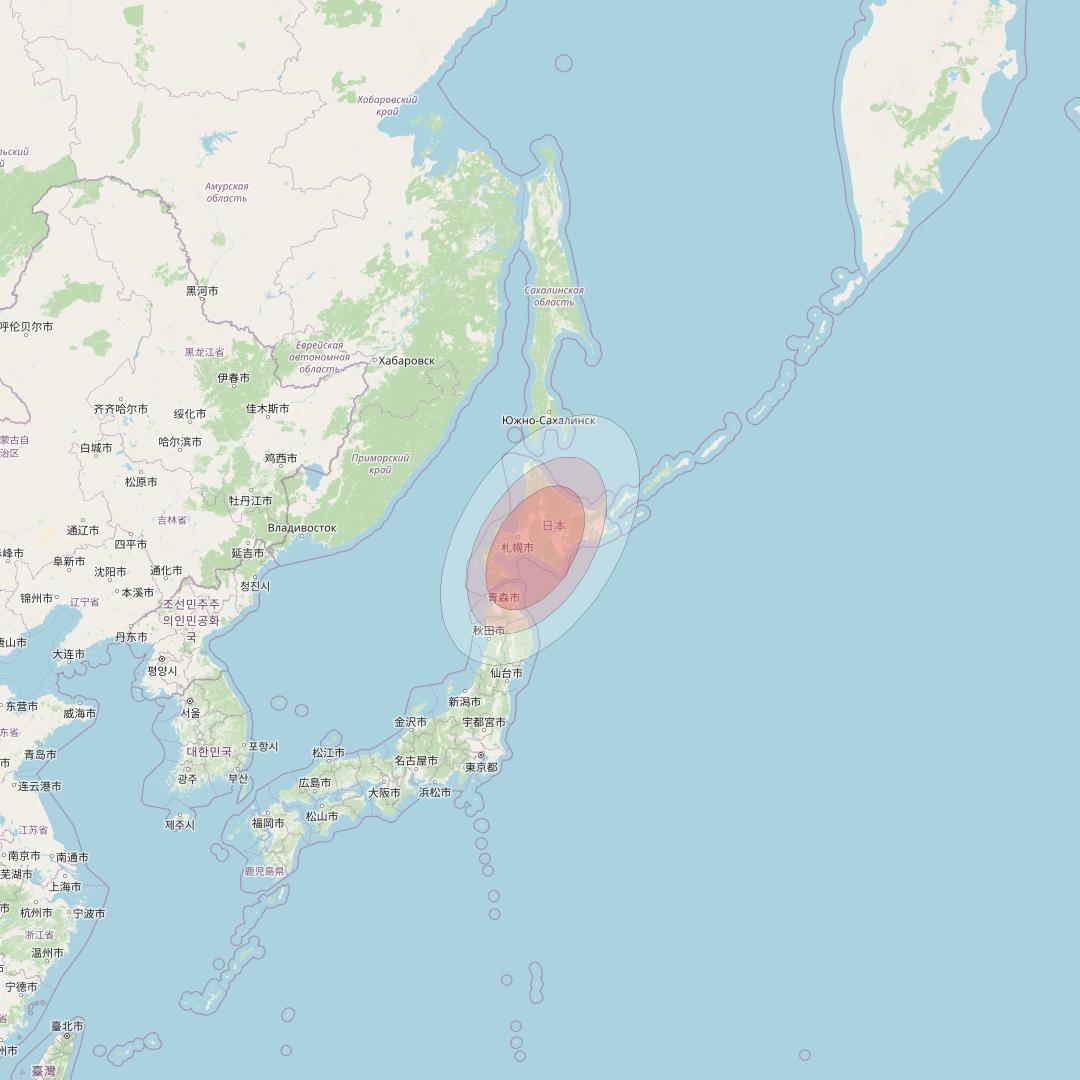

  • Thaicom 4 at 119° E downlink Ku-band Spot 404 beam coverage map

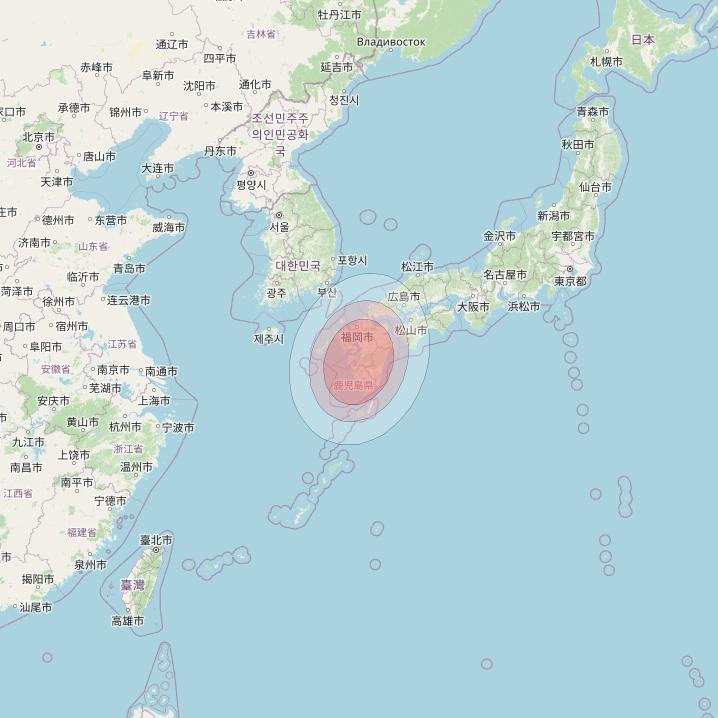

  • Thaicom 4 at 119° E downlink Ku-band Spot 405 beam coverage map

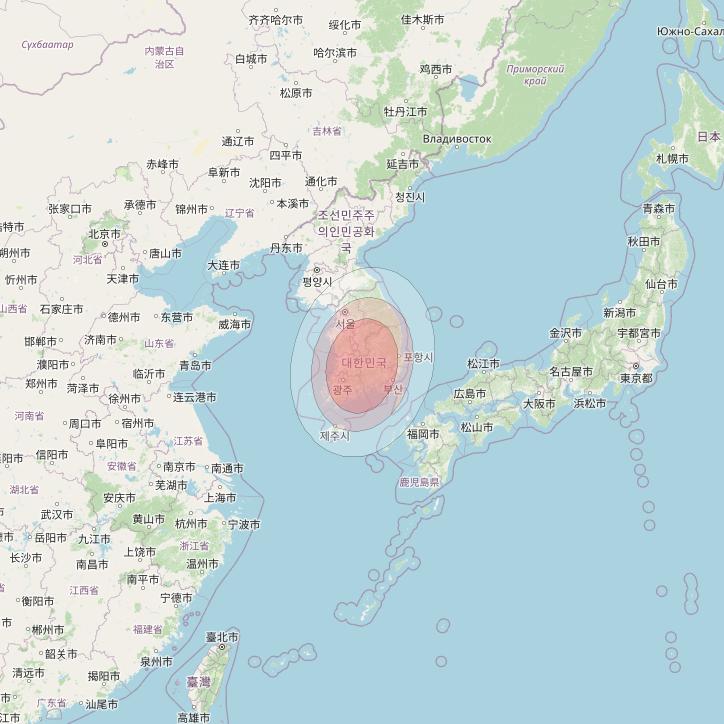

  • Thaicom 4 at 119° E downlink Ku-band Spot 406 beam coverage map

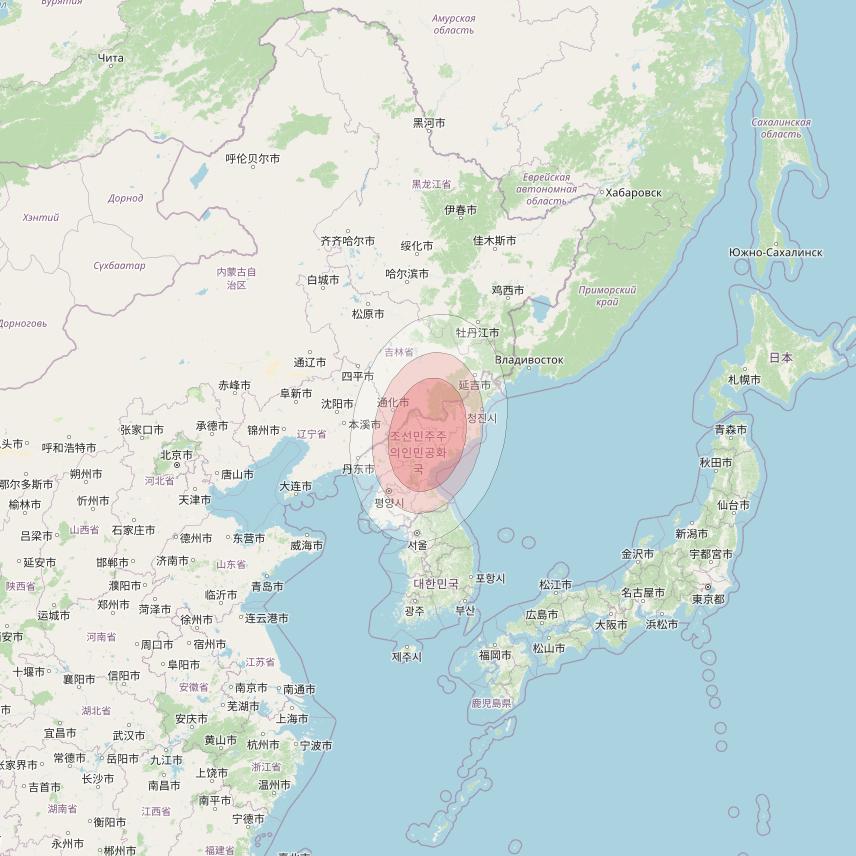

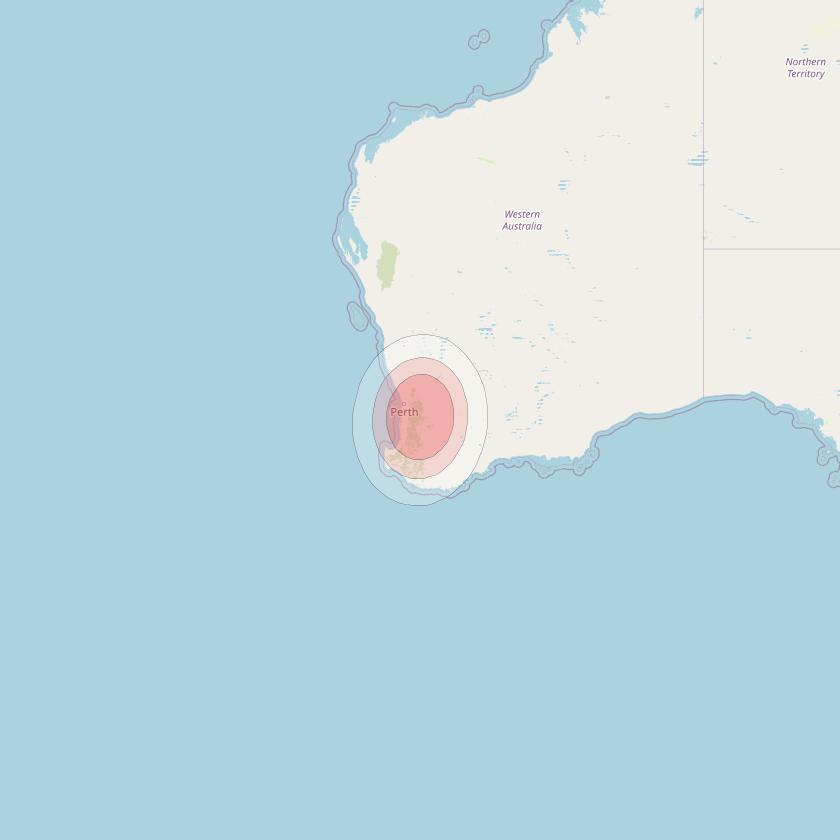

  • Thaicom 4 at 119° E downlink Ku-band Spot 501 beam coverage map

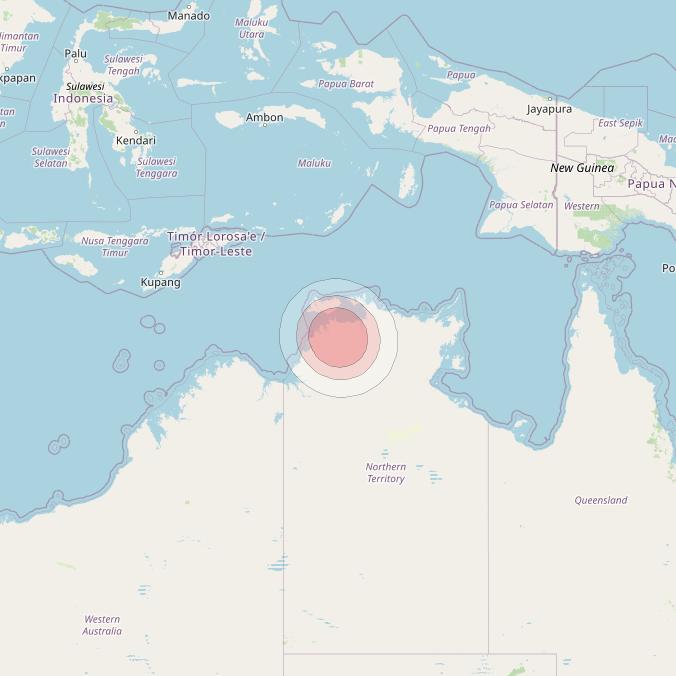

  • Thaicom 4 at 119° E downlink Ku-band Spot 502 beam coverage map

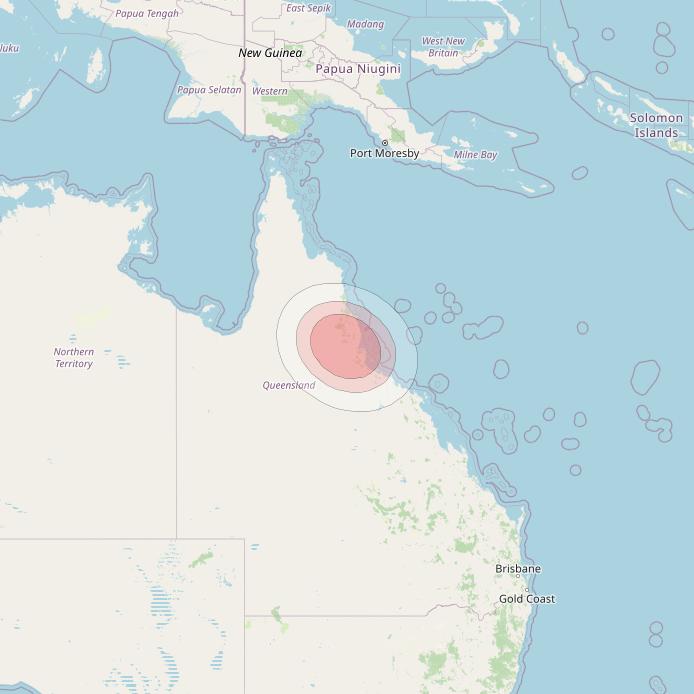

  • Thaicom 4 at 119° E downlink Ku-band Spot 503 beam coverage map

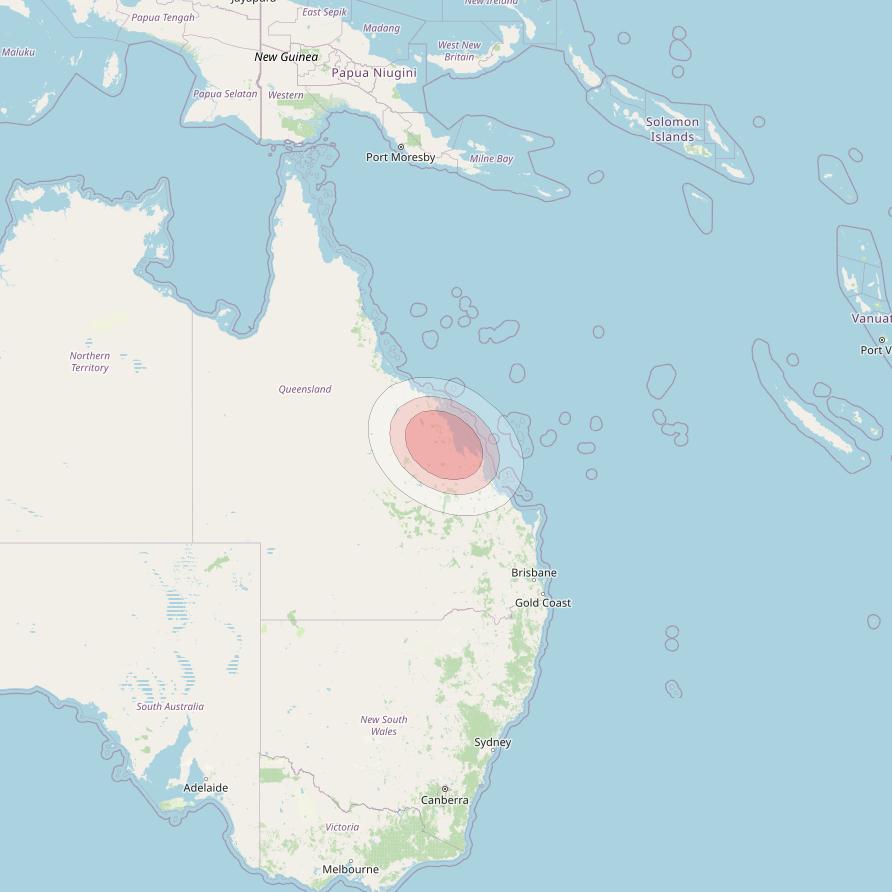

  • Thaicom 4 at 119° E downlink Ku-band Spot 504 beam coverage map

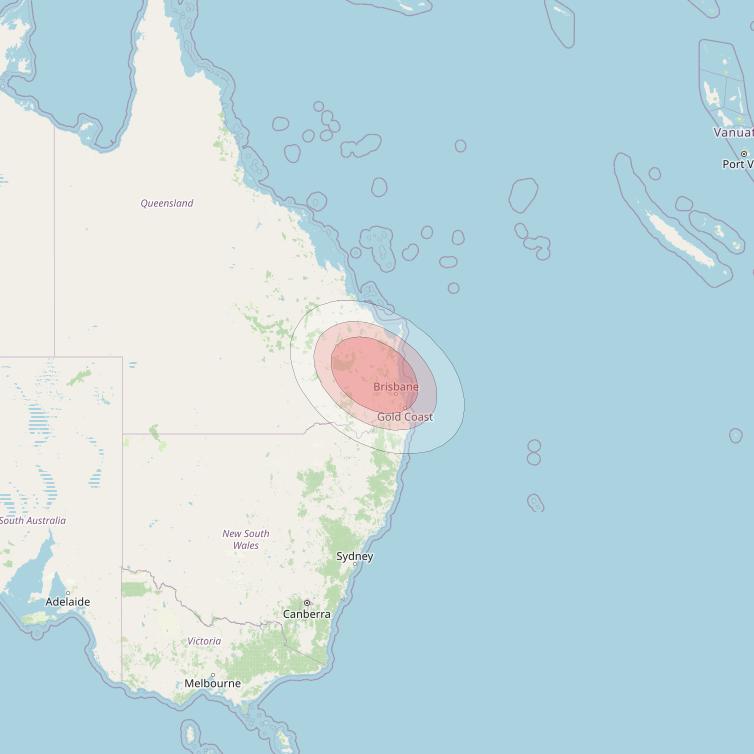

  • Thaicom 4 at 119° E downlink Ku-band Spot 505 beam coverage map

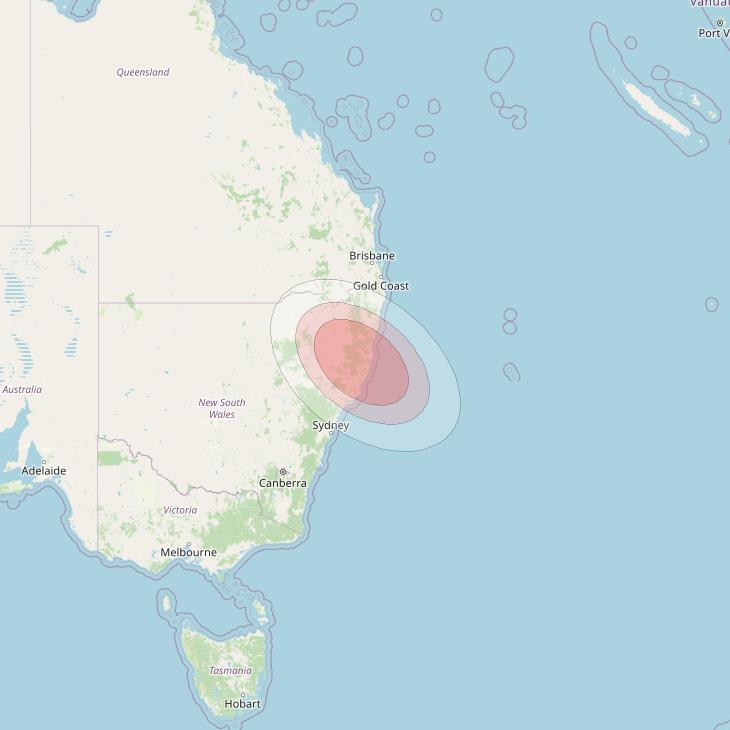

  • Thaicom 4 at 119° E downlink Ku-band Spot 506 beam coverage map

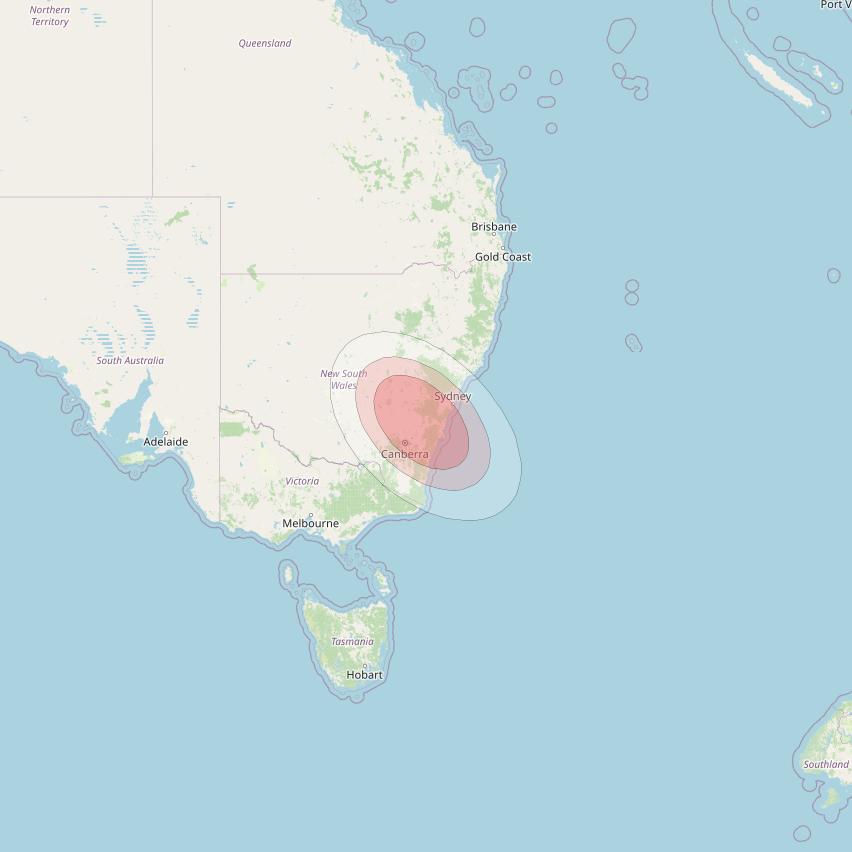

  • Thaicom 4 at 119° E downlink Ku-band Spot 507 beam coverage map

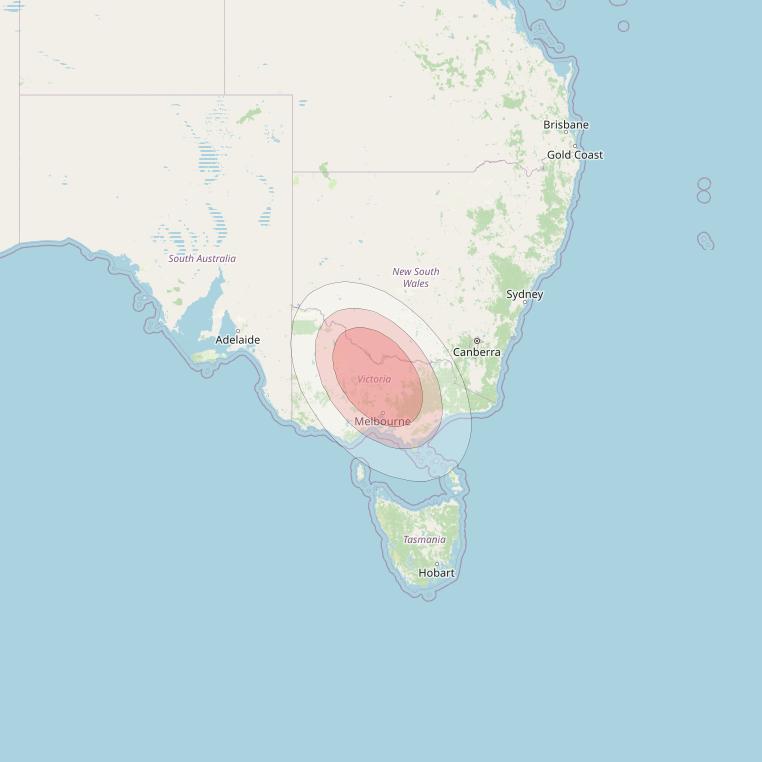

  • Thaicom 4 at 119° E downlink Ku-band Spot 508 beam coverage map

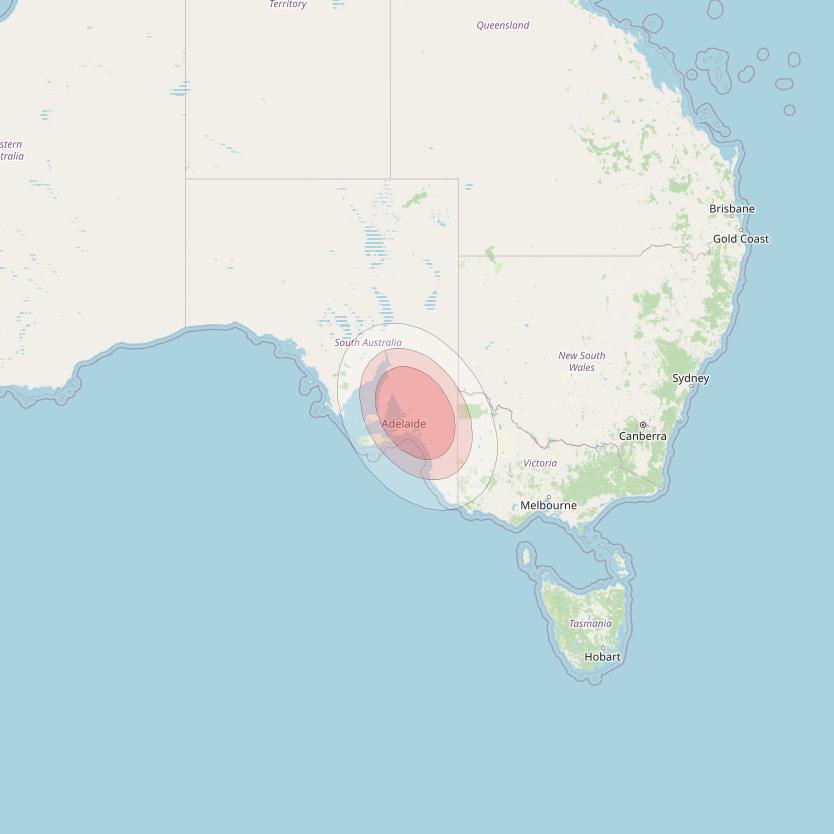

  • Thaicom 4 at 119° E downlink Ku-band Spot 509 beam coverage map

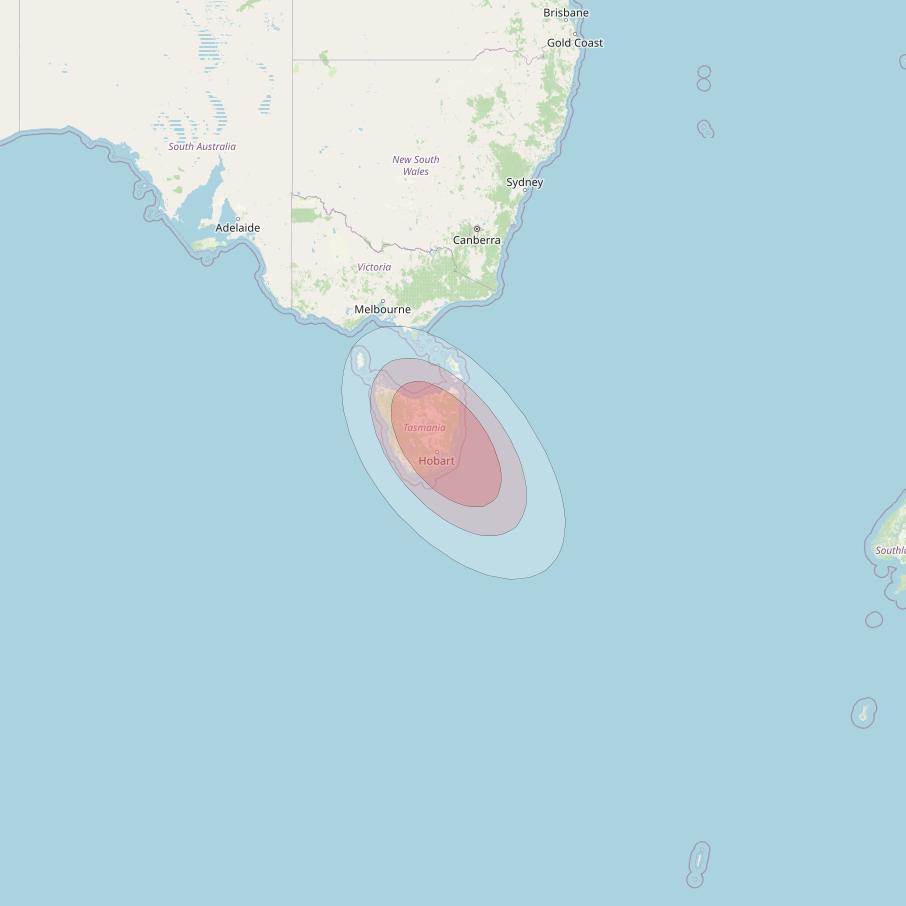

  • Thaicom 4 at 119° E downlink Ku-band Spot 510 beam coverage map

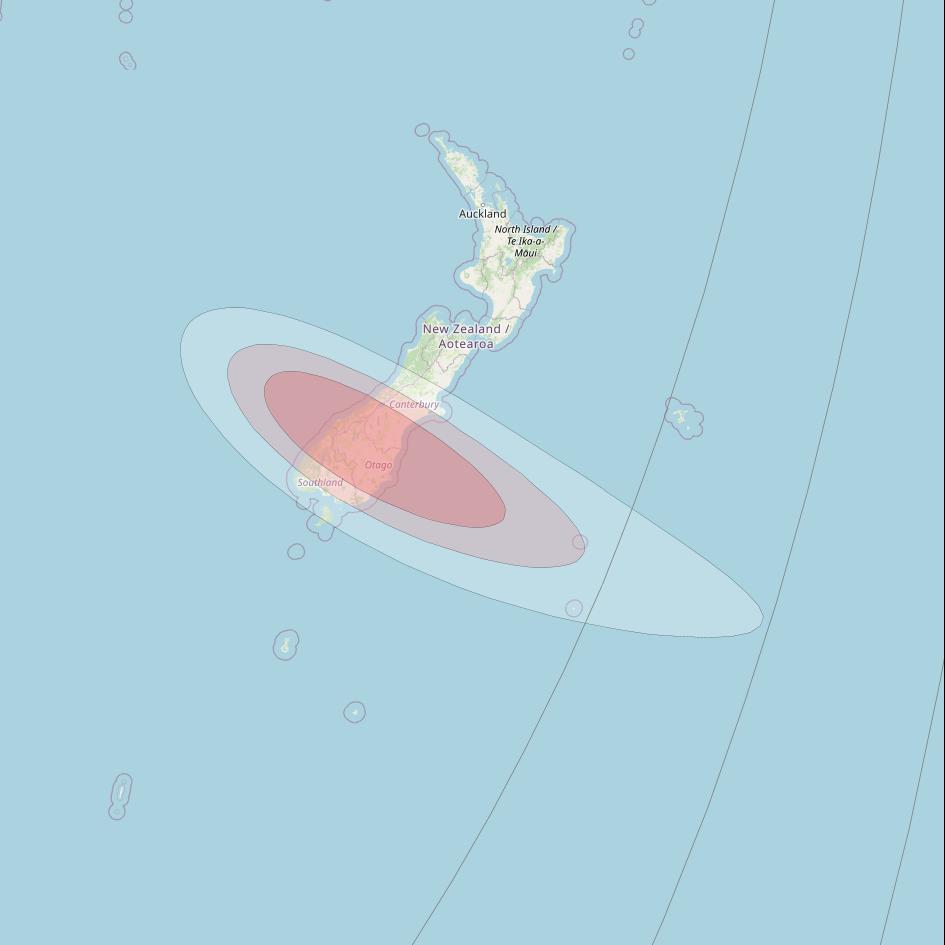

  • Thaicom 4 at 119° E downlink Ku-band Spot 511 beam coverage map

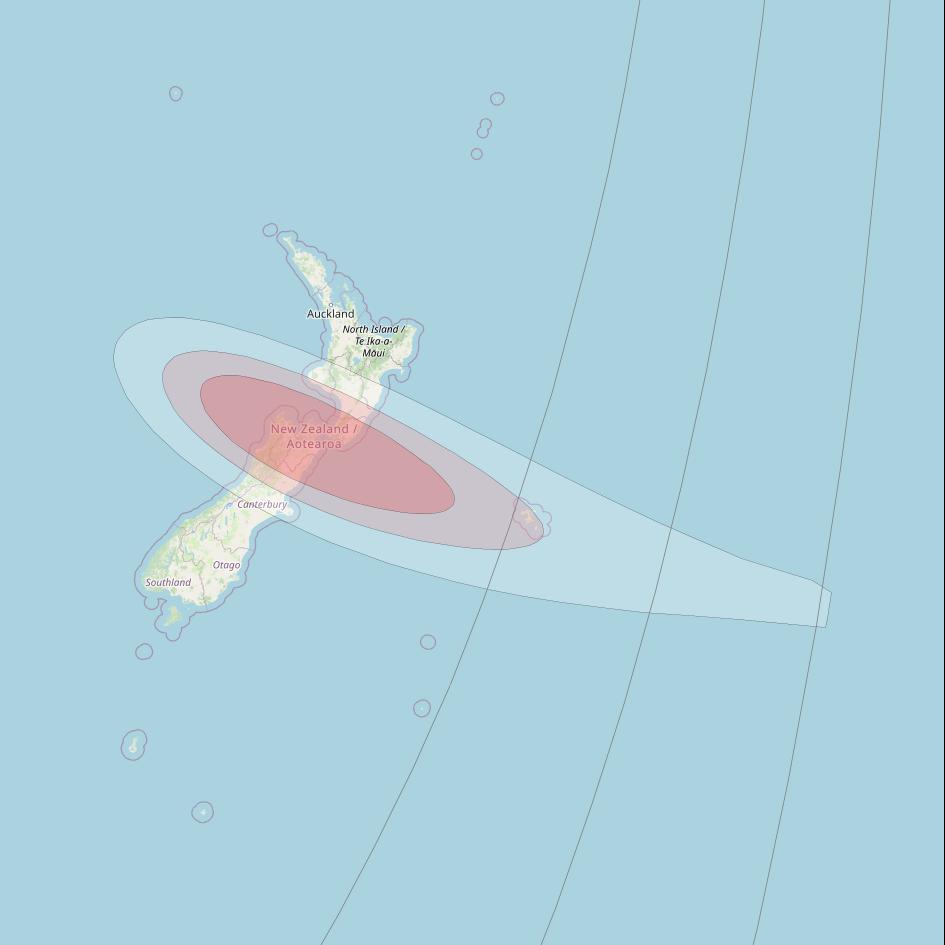

  • Thaicom 4 at 119° E downlink Ku-band Spot 512 beam coverage map

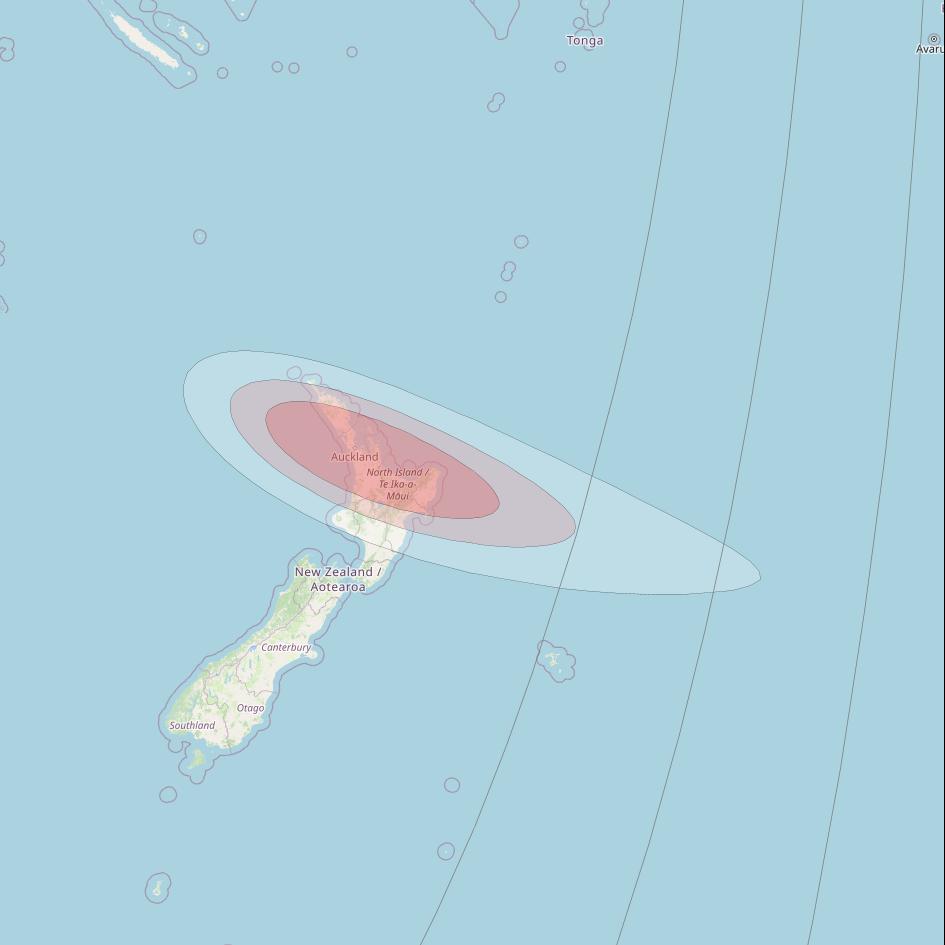

  • Thaicom 4 at 119° E downlink Ku-band Spot 513 beam coverage map
  • Thaicom 4 at 119° E downlink Ku-band Spot 601 beam coverage map

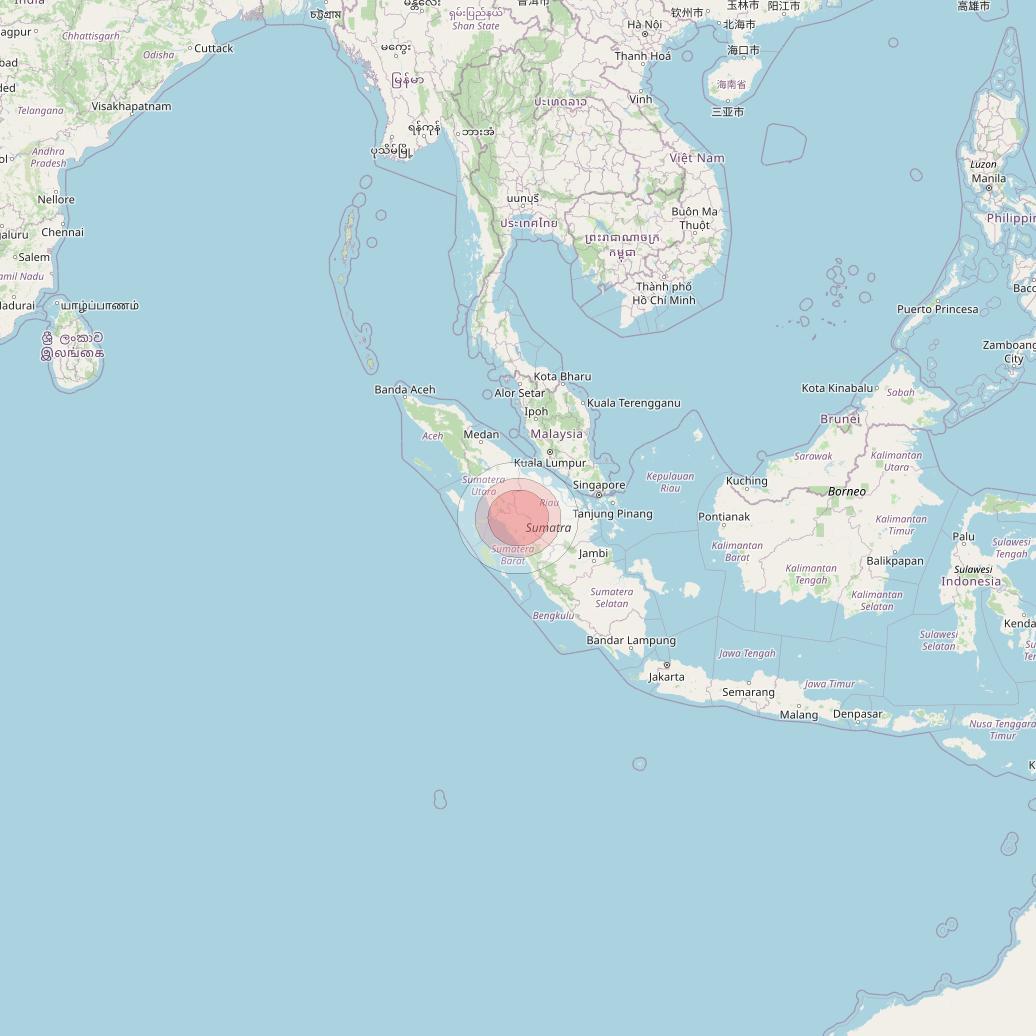

  • Thaicom 4 at 119° E downlink Ku-band Spot 602 beam coverage map
  • Thaicom 4 at 119° E downlink Ku-band Spot 603 beam coverage map

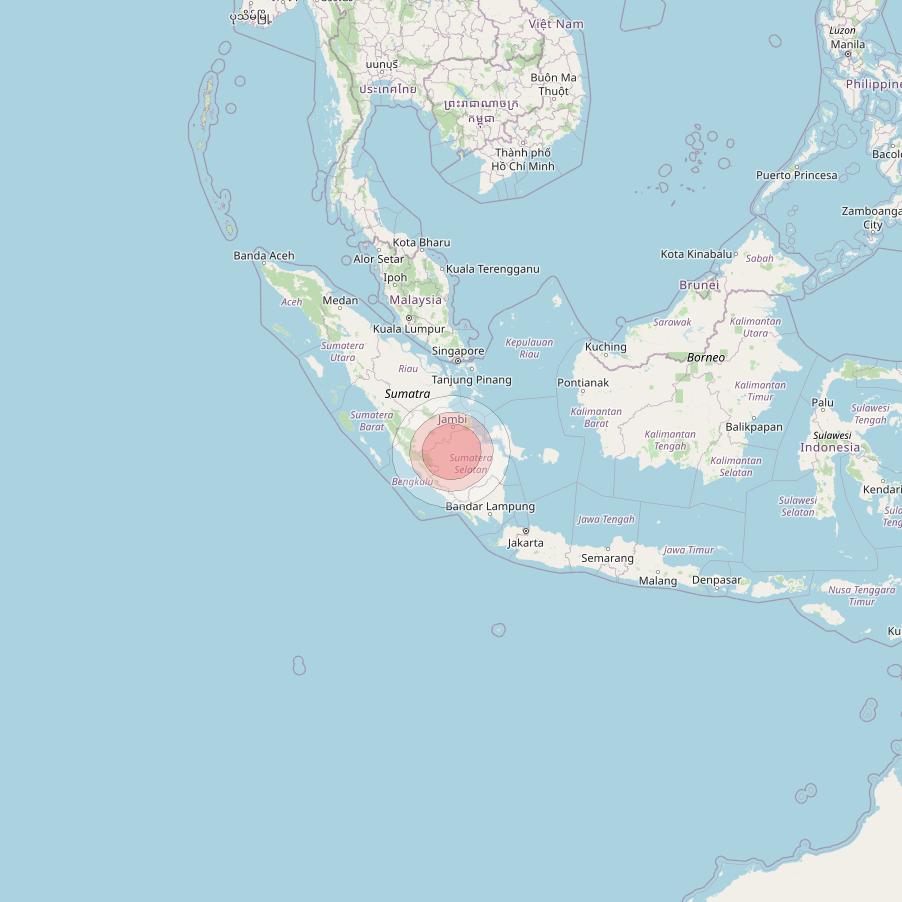

  • Thaicom 4 at 119° E downlink Ku-band Spot 604 beam coverage map

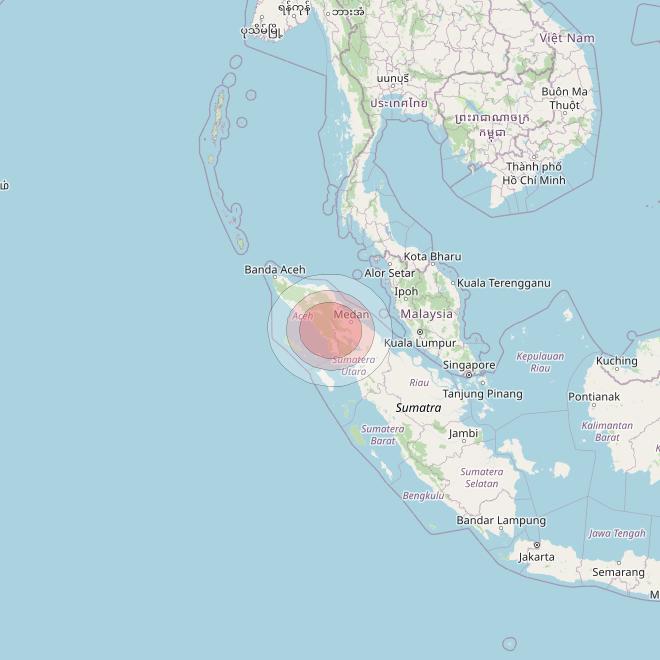

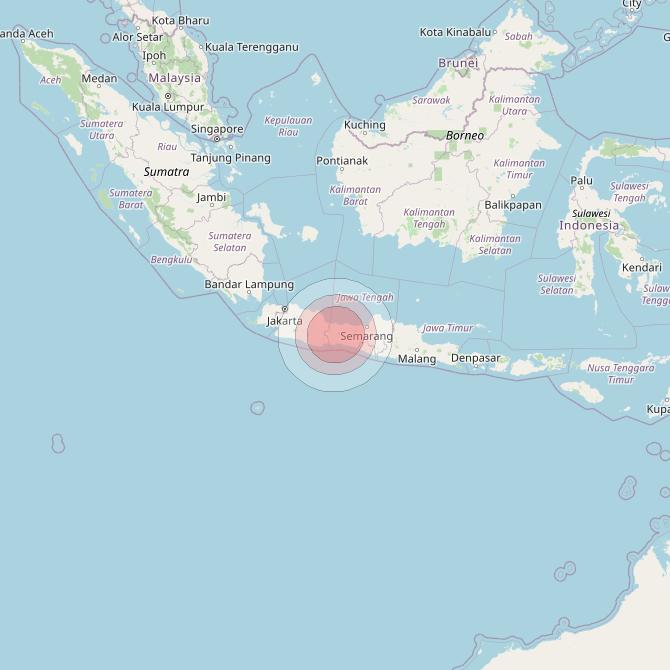

  • Thaicom 4 at 119° E downlink Ku-band Spot 605 beam coverage map

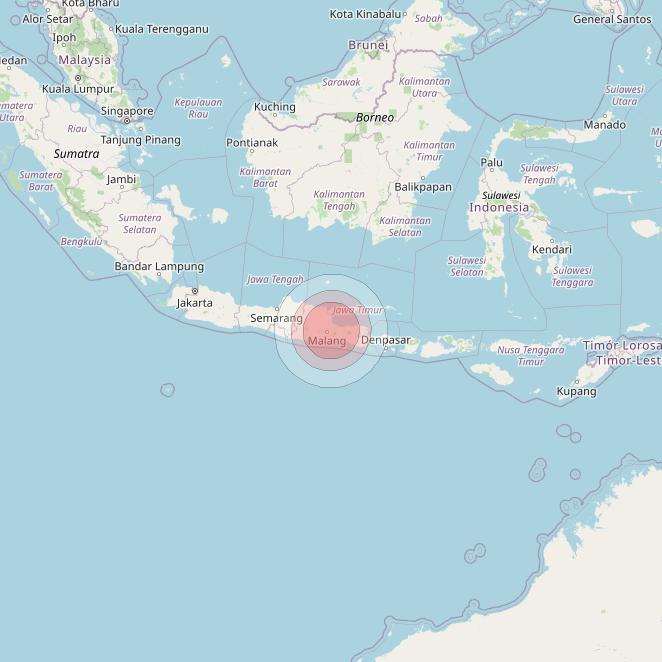

  • Thaicom 4 at 119° E downlink Ku-band Spot 606 beam coverage map

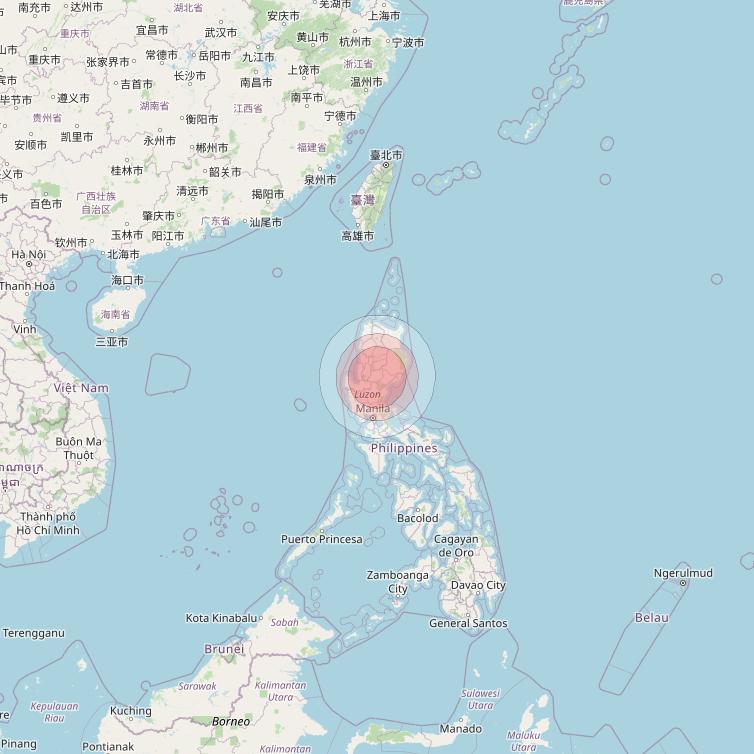

  • Thaicom 4 at 119° E downlink Ku-band Spot 701 beam coverage map

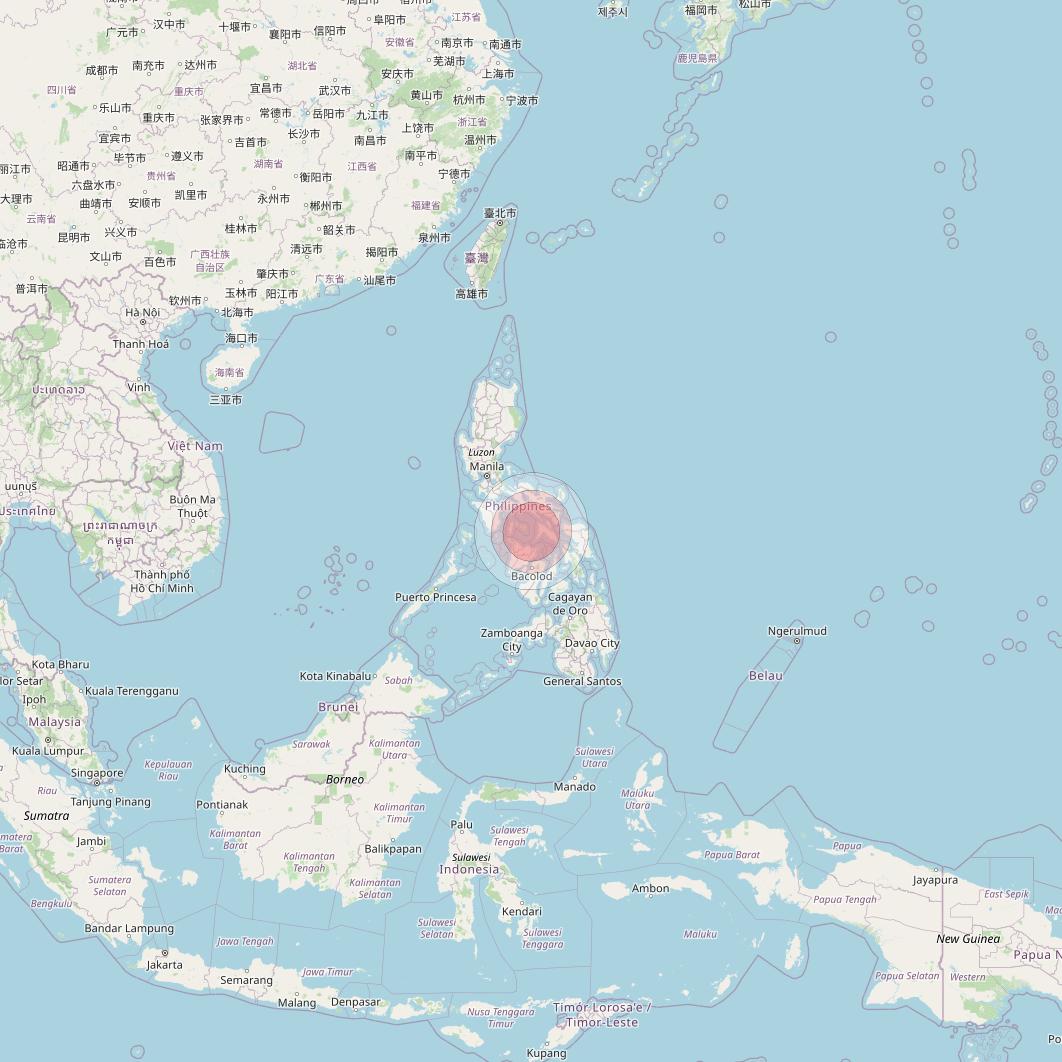

  • Thaicom 4 at 119° E downlink Ku-band Spot 702 beam coverage map

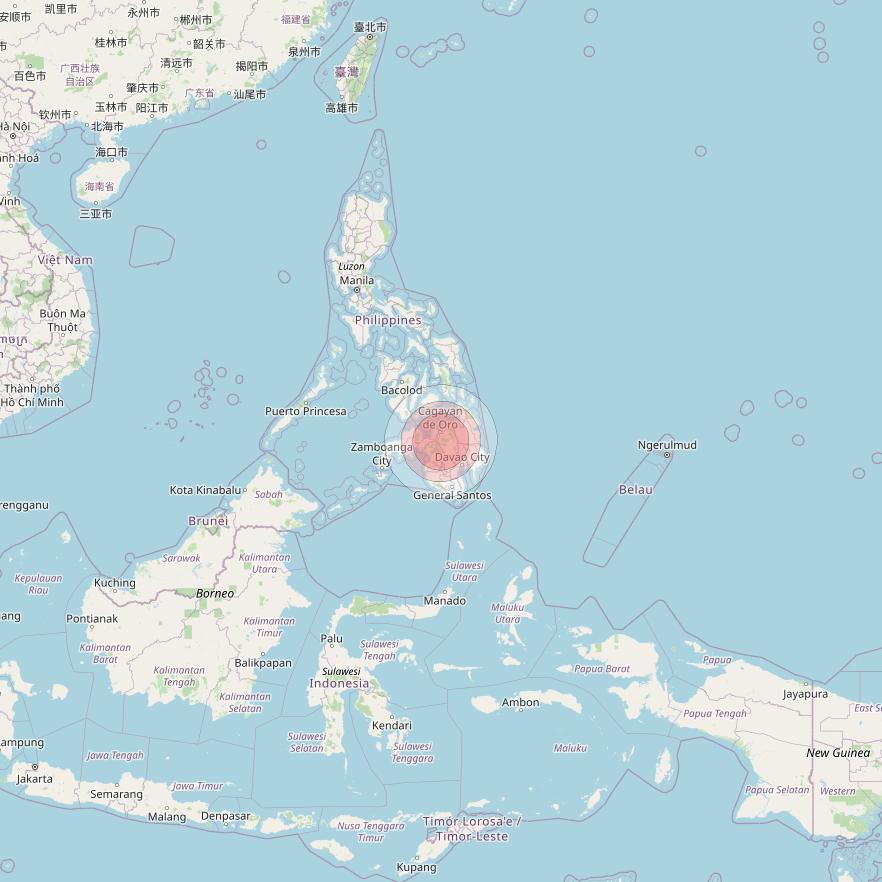

  • Thaicom 4 at 119° E downlink Ku-band Spot 703 beam coverage map

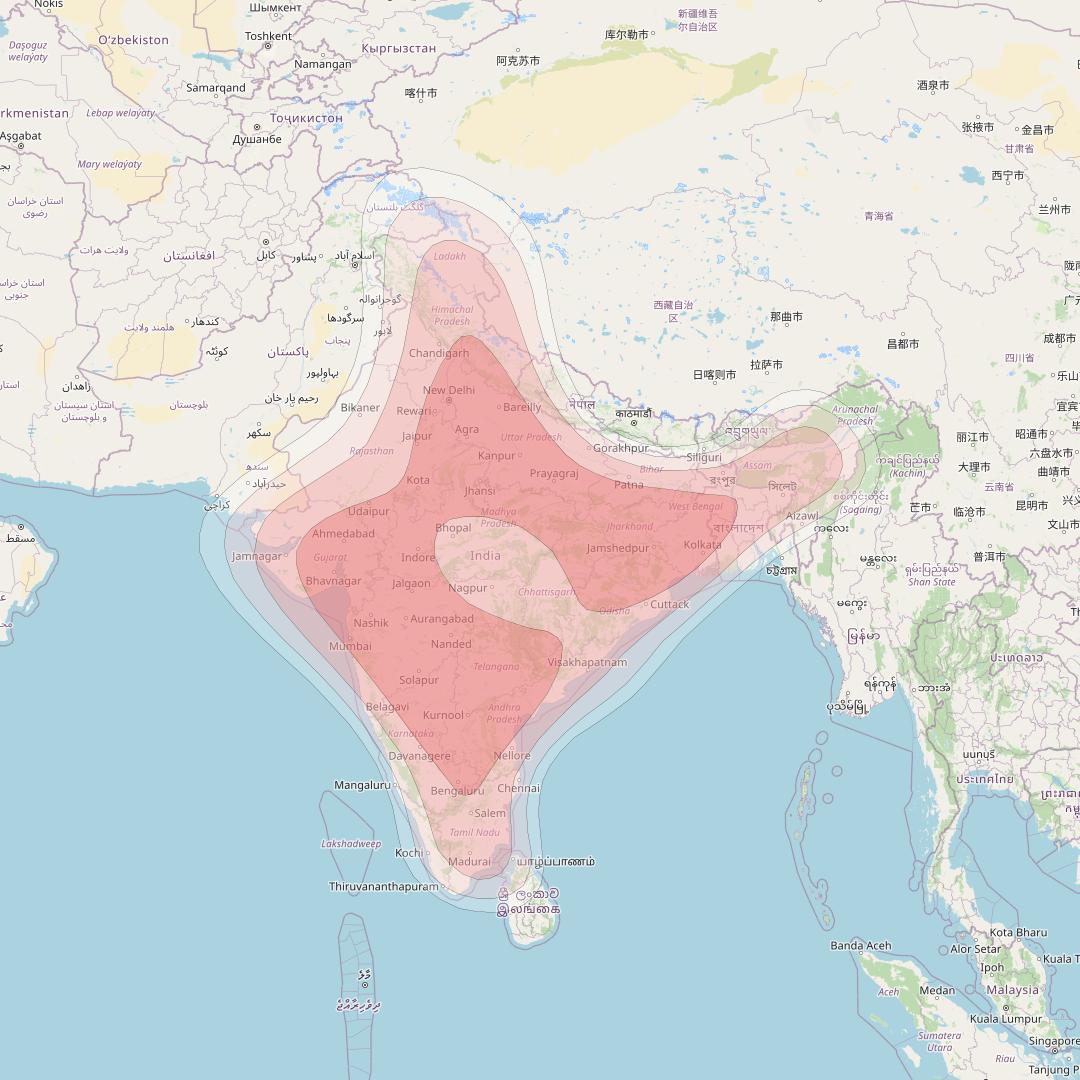

  • Thaicom 4 at 119° E downlink Ku-band Broadcast 1 Beam coverage map

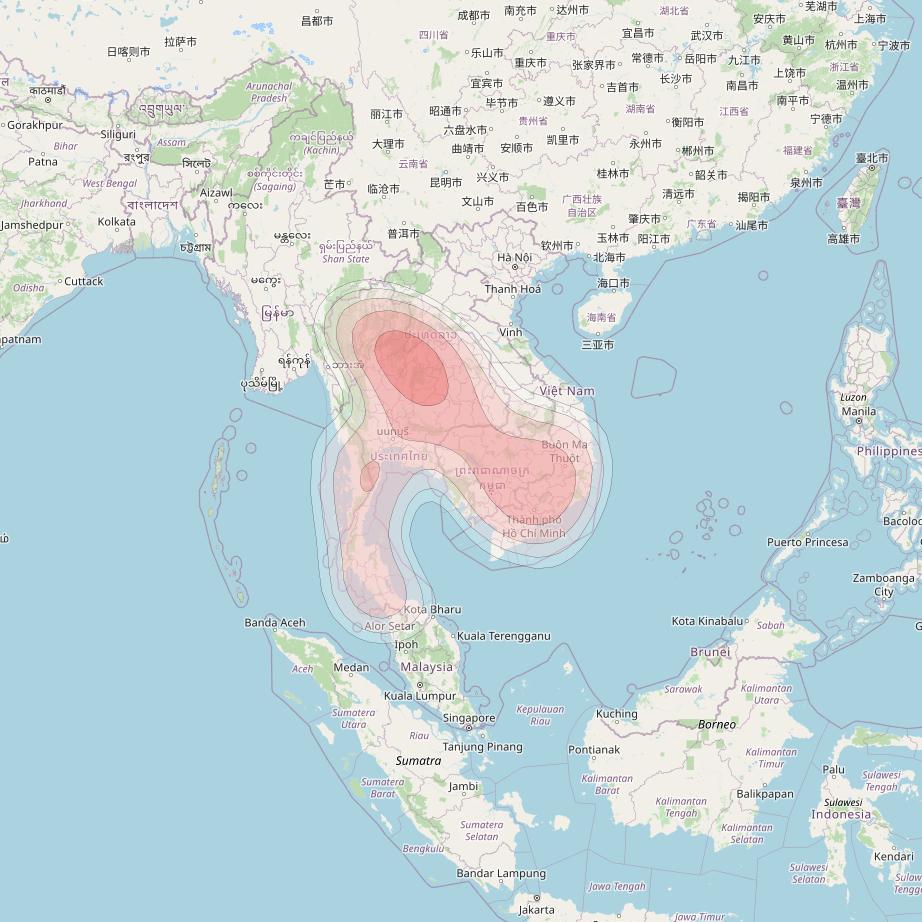

  • Thaicom 4 at 119° E downlink Ku-band Broadcast 2 beam coverage map

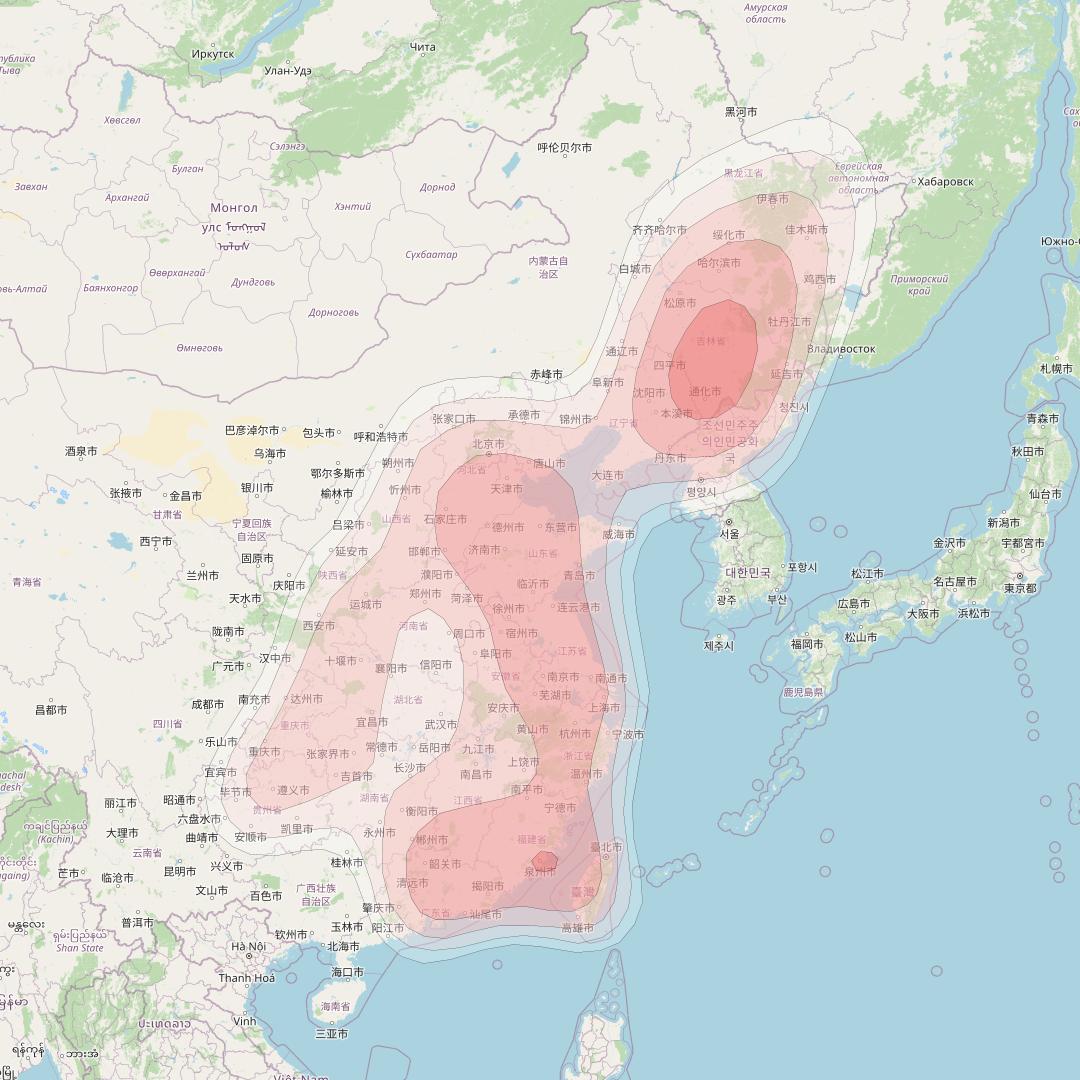

  • Thaicom 4 at 119° E downlink Ku-band Broadcast 3 beam coverage map

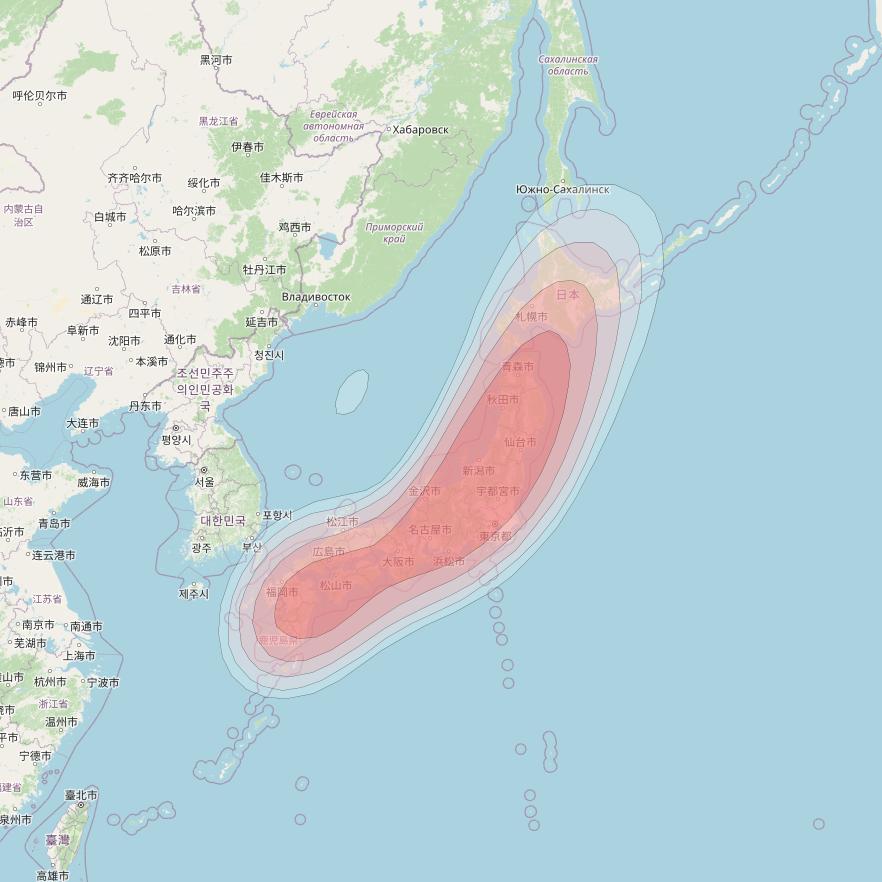

  • Thaicom 4 at 119° E downlink Ku-band Broadcast 4 beam coverage map

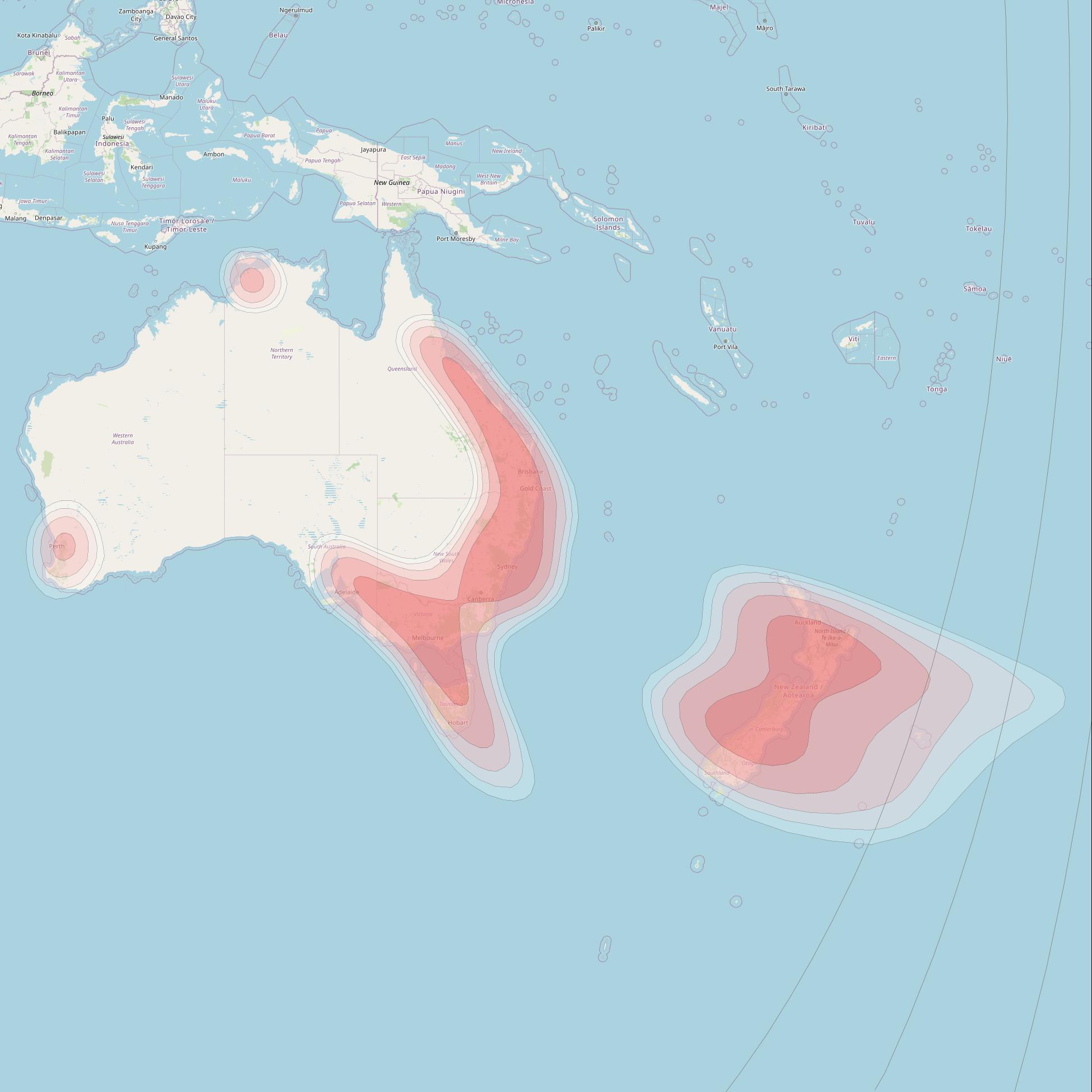

  • Thaicom 4 at 119° E downlink Ku-band Broadcast 5 beam coverage map

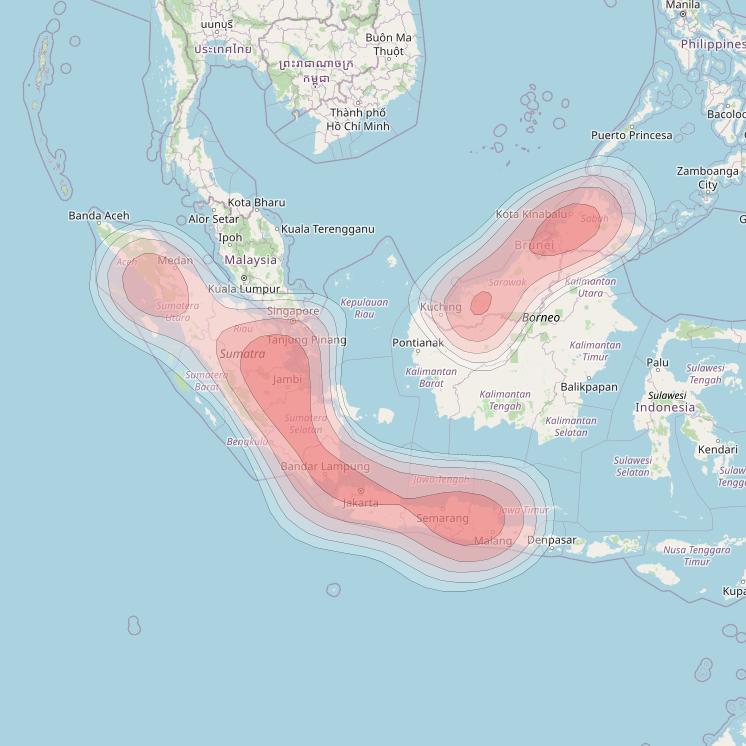

  • Thaicom 4 at 119° E downlink Ku-band Broadcast 6 beam coverage map

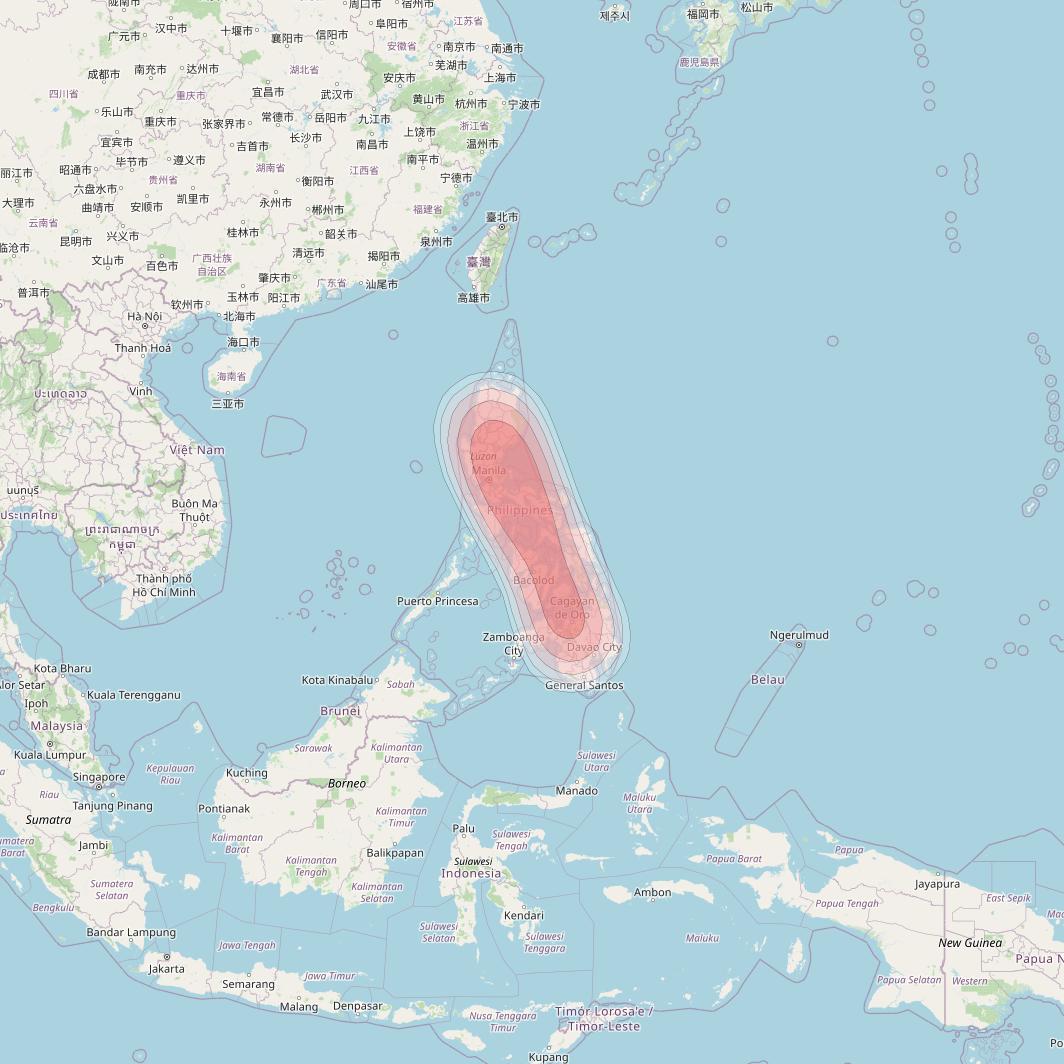

  • Thaicom 4 at 119° E downlink Ku-band Broadcast 7 beam coverage map

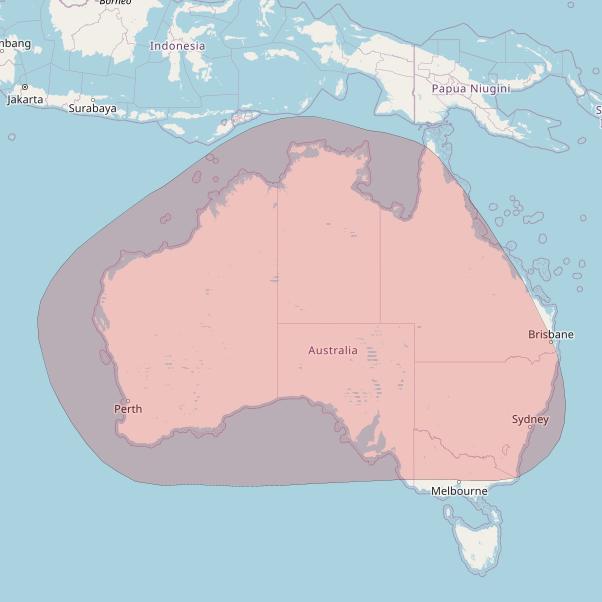

  • Thaicom 4 at 119° E downlink Ku-band Shaped 514 (Australia) Beam coverage map

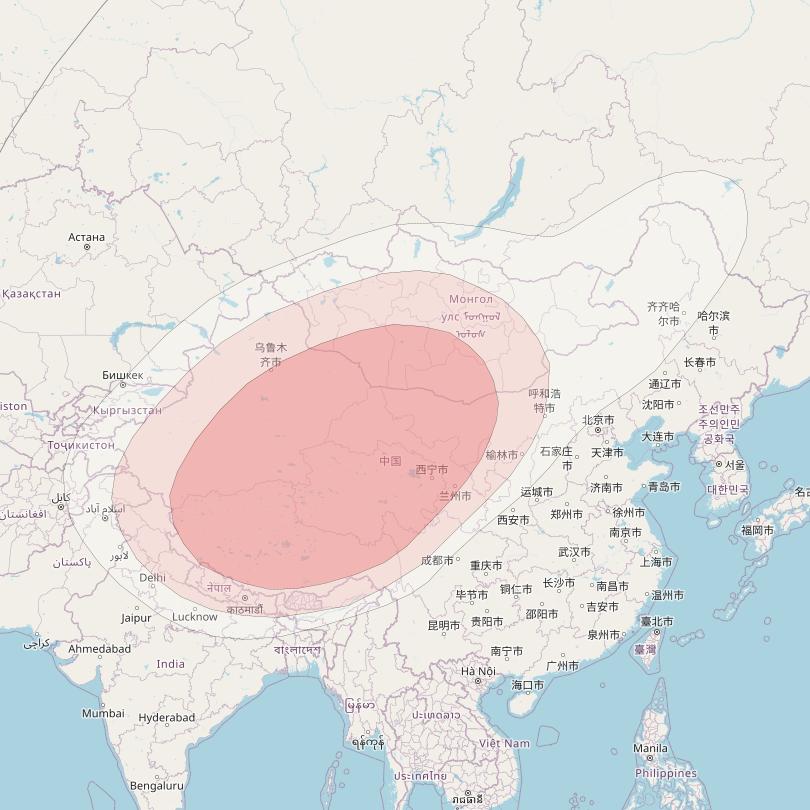

  • Thaicom 4 at 119° E downlink Ku-band Shaped 328 (China) Beam coverage map

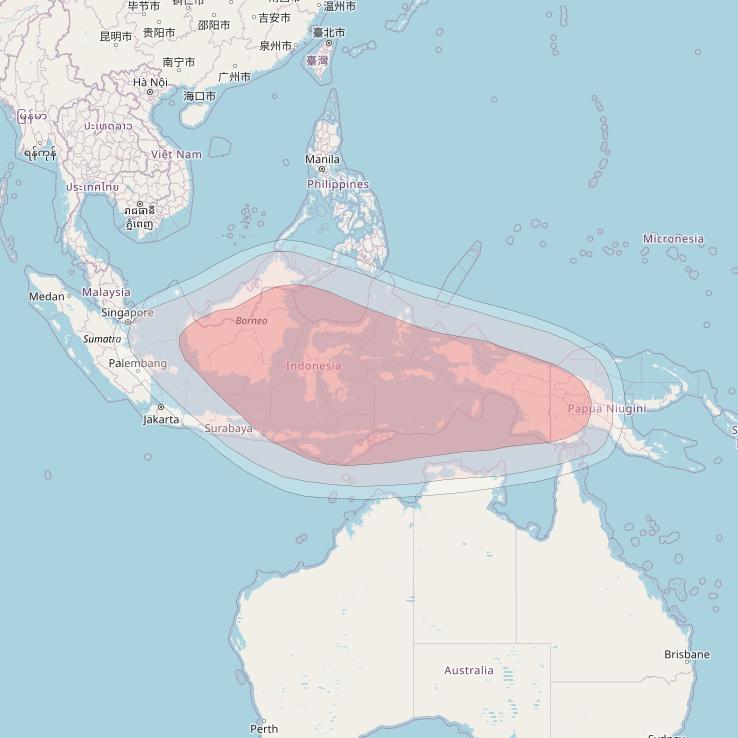

  • Thaicom 4 at 119° E downlink Ku-band Shaped 608 (Indonesia) Beam coverage map
