Satellite Name: Intelsat 28 (Intelsat New Dawn)
Status: active
Position: 33° E (32.8° E)
NORAD: 37392
Cospar number: 2011-16A
Operator: Intelsat
Launch date: 22-Apr-2011
Launch site: Guiana Space Center
Launch vehicle: Ariane 5 ECA
Launch mass (kg): 3000
Dry mass (kg): 1283
Manufacturer: Orbital ATK Inc
Model (bus): GEOStar-2
Orbit: GEO
Expected lifetime: 15 yrs.
Call sign: S2751
Beacon(s): 3947.5 RHCP, 3952.5 RHCP
Details:
28 C-band (failed) and 24 Ku-band 36 MHz transponder units to deliver wireless backhaul, broadband and television programming to part of Europe, Middle East, Africa and Sub-Saharan regions. Shortly after the launch Intelsat determined that the satellite’s C-band antenna reflector had not successfully deployed most likely due to a malfunction of the reflector sun shield. As a result, the sun shield interfered with the ejection release mechanism and thus prevented the deployment of the C-band antenna.
Beams:Charts: list

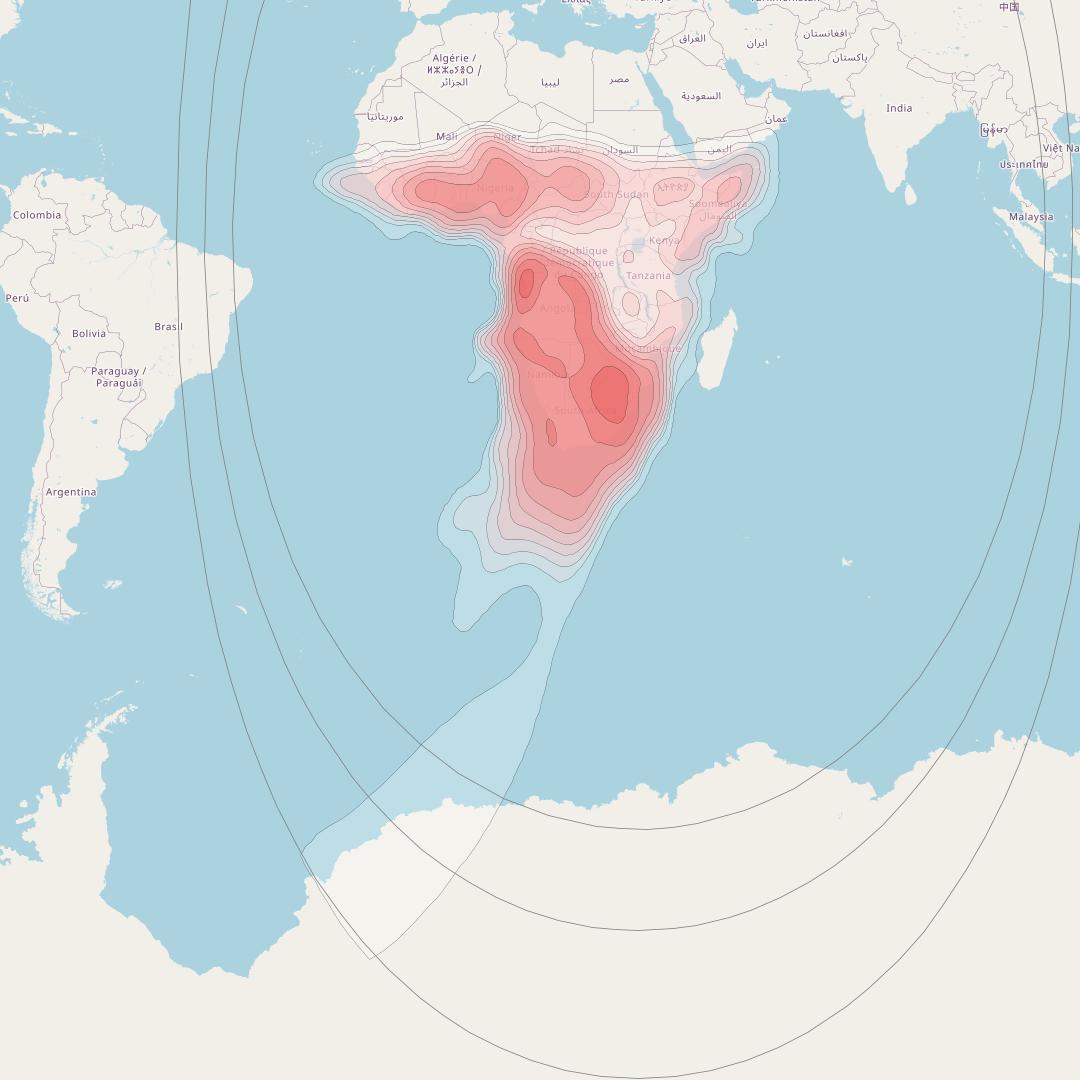

Intelsat 28 at 33° E downlink Ku-band AFKH (Africa) beam coverage map
